CREATE PENETRATION IN PIPING MODULE

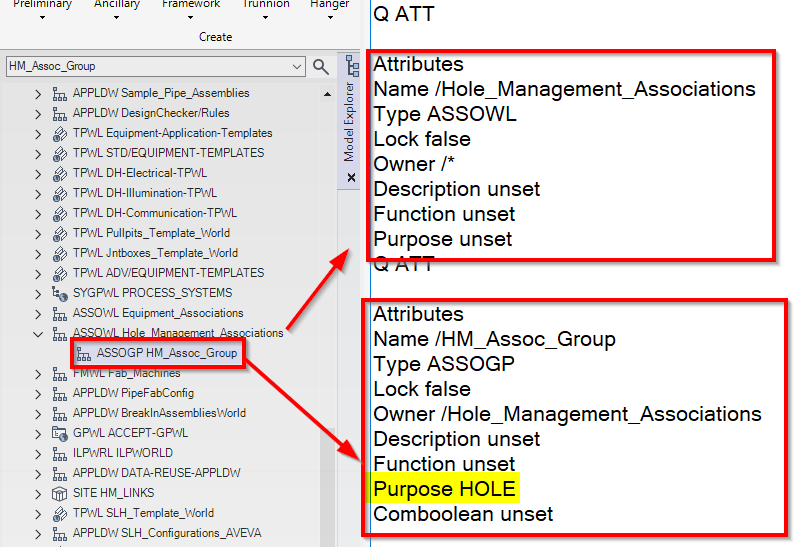

You must create an ASSOWL and an ASSOGP with PURP set to HOLE as described in your error message

;-)

Thank you for your reply.... Kindly share where to create these files & in which module?

AVEVA Help

In a Design Database you have write access to. You can use the Command Window. Model Module

Please tell is it covered under our standard license?

yes

You can also include in your project the following Aveva supplied DB:

Dbname ASSOC/ASSOC
Dbfilename /%APS000%/aps7598_0001
Dbnumber 7598

Thankyou I will try with both suggested methods.

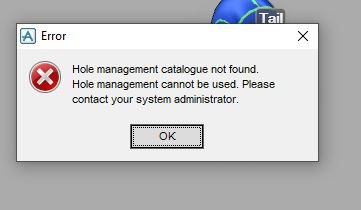

after this I encountered following error ....

& to troubleshoot it, I changed my structure purpose to Hole.....

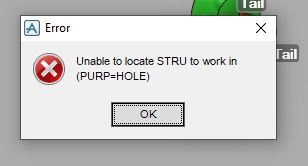

but further I encountered another error ...

Now I have no solution further ....Please guide.

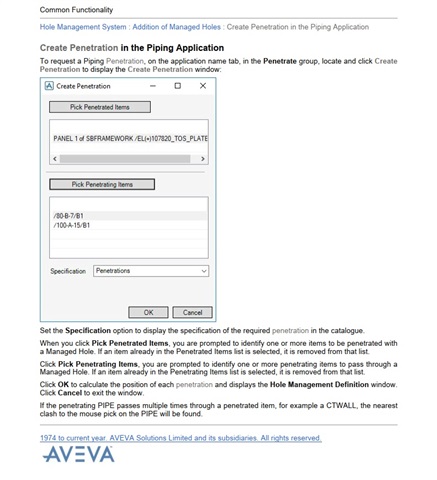

https://help.aveva.com/AVEVA_E3D_Design/3.1/#/home/998475/10/11
