How to reoder hierarchy for HVAC branch members

Hi Guru

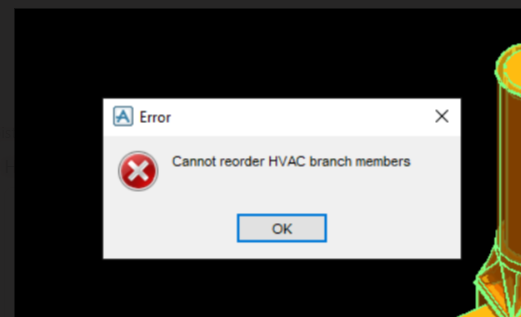

As topic title, is it possible to reoder hierarchy for HVAC branch members ?. I see we can apply for pipe element however I tried to apply for HVAC element but it show error

It seems the reverse order function not apply for HVAC so do we have other ways to do it?

Top Replies

Corrado Galluzzi over 1 year ago +1

Kevin, it is not possible. The reason is that some component position (i.e. splitters, access panels, etc) relies on the previous component. So if you reverse the order you may mess everything up…

Corrado Galluzzi over 1 year ago

Kevin,

it is not possible.

The reason is that some component position (i.e. splitters, access panels, etc) relies on the previous component.

So if you reverse the order you may mess everything up.

FYI Aveva has just released E3D 4.1 (part of Aveva Unified Engineering 2.0).

In there you can find the new HVAC application.
Cancel
Vote Up +1 Vote Down

Sign in to reply

Cancel
Kevin over 1 year ago in reply to Corrado Galluzzi

Thank you for your useful information Corrado
