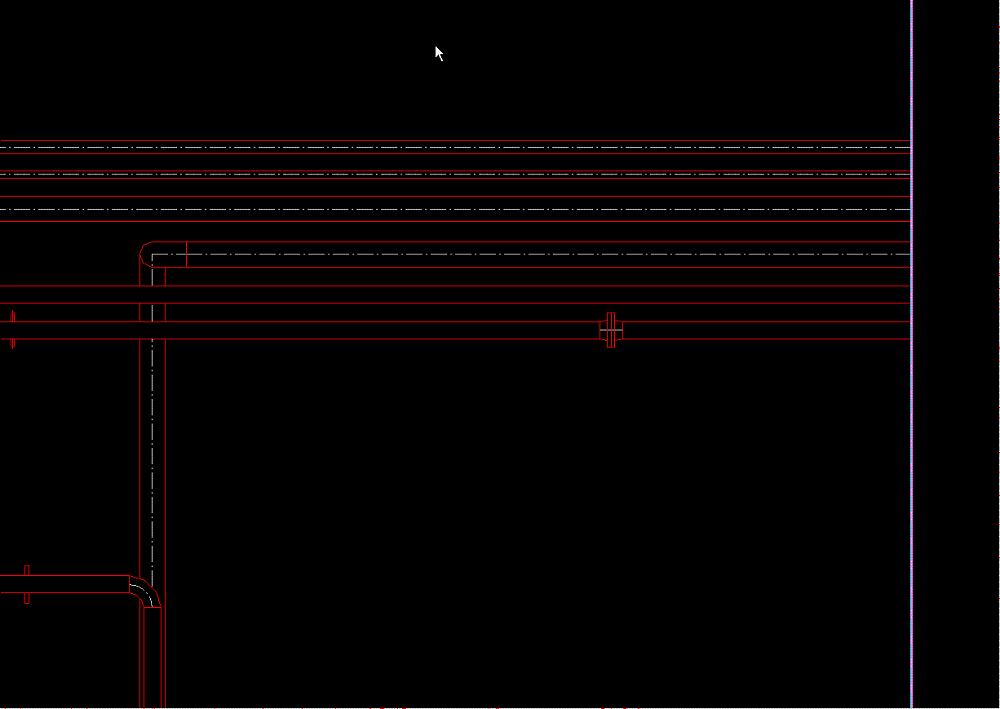

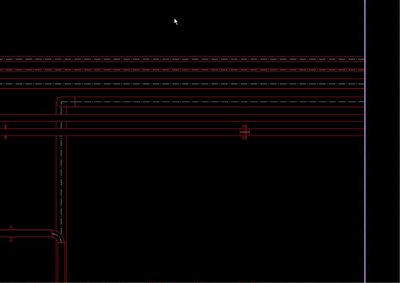

centerline of pipe in draft



If scom of tubi has no gmref canterline will appear automatically. If geometry is defined centerline must be created in paragon.

STerentev,

do you mean, the rules which i coiped and and modified are ok?
but existing rules are showing same pipes correctly.

I have dicsovered this problem too. All pipes except one (with BORE 200) has centerlines.
All pipes made in paragon with common rule... I'm discomfitured.

Кубик, смени аватарку!

I have the same problem.
Any one has the solution for it?

The rulesetting in draft is ok but the Centerline must be set in Paragon as said by Sterentev.
Enter the paragon module and check the component->Reper-> Centerline

As Kubik said, all pipes uses the same representantion in paragon, but in some cases centerline appears and in others don't.

I too have same problem today, please let me know if you have any answer. Why centre lines for only few lines are missing. I do not understand the logic.

Sorry by offtop but how u people realise centerline for equipment?
