How to - Make a Flow Arrow on Ortho Draft

[QUOTE=sandeep_kamble_1;65942]It is giving me Error

(2,109) undefined name
/Sp-Lib_Symb_2D/SLOPE/ARROW

create this symbol before running macro or edit macro to your own symbol

thanxs corrado[COLOR=#3E3E3E]
it is comming,

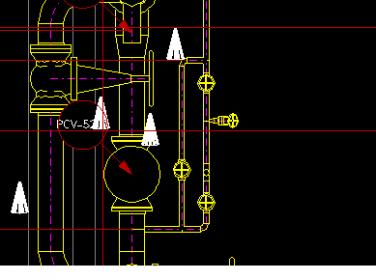

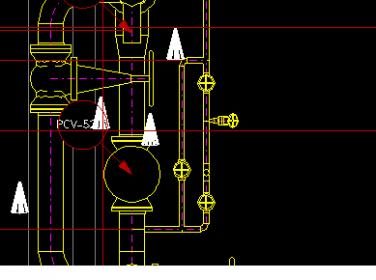

but it is comming in all the tube in pipe, i want to create one flow arrow for one pipe or it can create in change in direction of pipe.....

how it can be done?[/COLOR]

thanxs corrdo.[COLOR=#3E3E3E]
it is comming,
but it is comming in all the tube in pipe, i want to create one flow arrow for one pipe or it can create in change in direction of pipe.....

how it can be done?[/COLOR]



Check your arrow symbol origin (usually a Marker Point element - MRKP)

Ok but unfortunately I still have a problem.
When I export my view with the command: Utilites-> Configurable DXF \ DGN and I go to save the file to my local disk, PDMS me and I do not lose the arrows Mantine my arrows flow

I´m using this code but i want the flow arrows proportionally to pipe diameter. How can I set that in the pmlfunc?

Now I can just define a scale, but for small pipes, the arrows are very big.
!SymbScal = 1

I also used this file to create flow arrow symbol in draft.
but It is giving me Error

(2,109) undefined name
/Sp-Lib_Symb_2D/SLOPE/ARROW

can any one will help with answer.

Thanks in advance.

You need to modify the macro so that the symbol name matches your symbol....
See posts here above

@Mahesh,

Please change the name of the flow arrow symbol.
