How to - Make a Flow Arrow on Ortho Draft

As said by KUBIK.

create this symbol before running macro or edit macro to your own symbol

Thanks for Macro and it is working well.

Thanks
Rajendhar

[QUOTE=corrado;103733]You need to modify the macro so that the symbol name matches your symbol....
See posts here above

Sorry Corrado, Which Photo do you referring to?

You can find the macro in the Post #3
But the macro contains a reference to a Symbol.
So...
1) You need to change the macro to reflect the name of your symbol.
2) Or you need to name your symbol with the same name of the one in the macro

HTH



[QUOTE=smitsuthar;107697]Dear All

The macro is very useful. thanks to who have made this.
I am having below two problems with the macro. please advise.

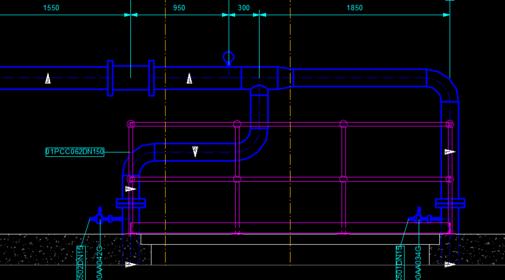

2. Arrow does not aligned with pipe in actual flow direction.[ATTACH=CONFIG]10531[/ATTACH]

Thanks in advance

Check your symbol orientation in library. (right/left/up/down)
you must set either one to suit to the macro.. and place MRKP point so you know the placing mark point.

[COLOR="silver"]- - - Updated - - -[/COLOR]

Tested and no issue.

I am agree with you!

Thanks roberto
