How do generate sketches of pipe?

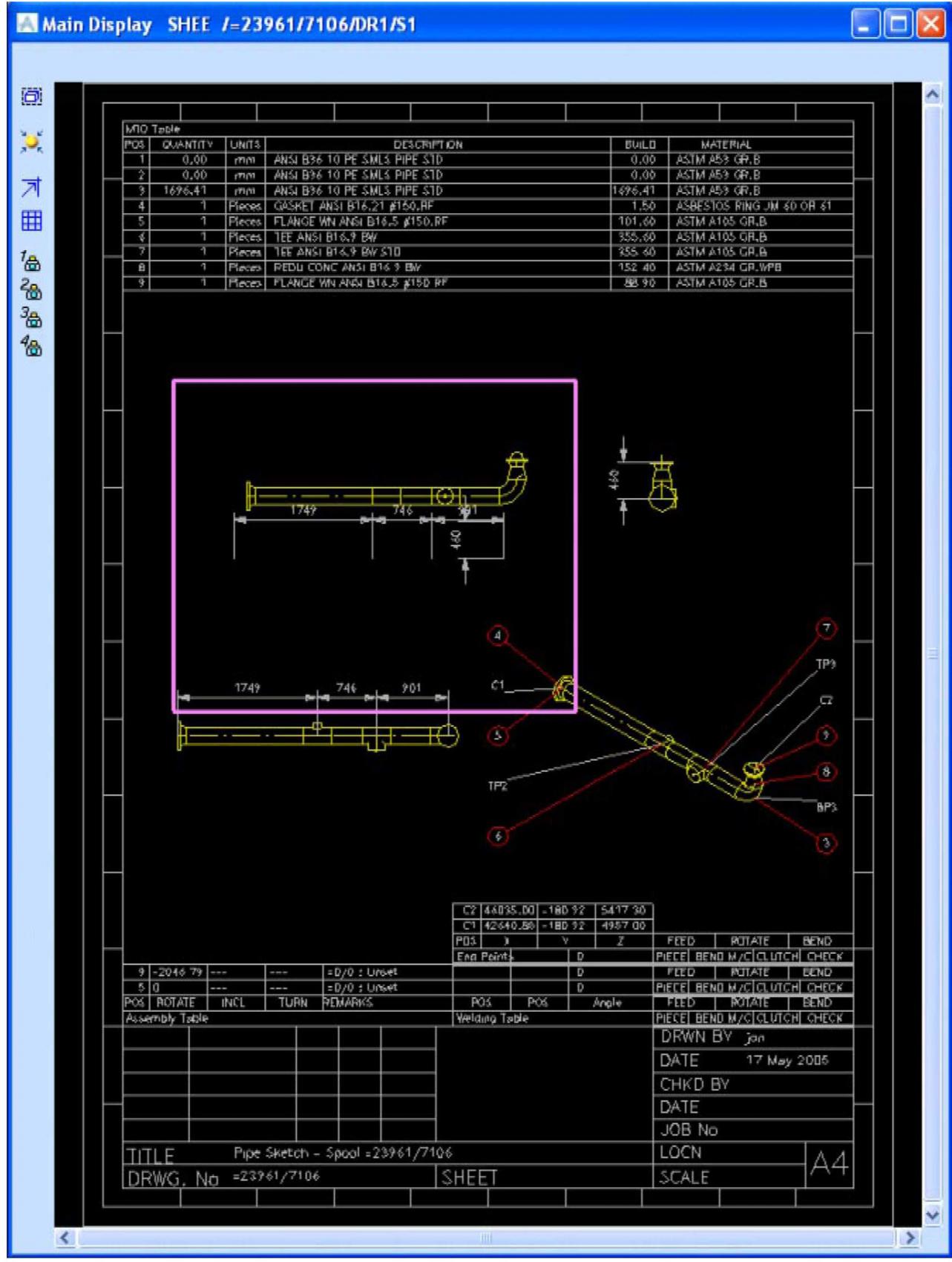

This in done in PDMS 12.0 in the Draft module in ADP.  I think it is under Utilities > Pipe Sketches.

This in done in PDMS 12.0 in the Draft module in ADP.  I think it is under Utilities > Pipe Sketches.

austin can please explain that details. Because i tried to add list of pipe in search results but i con't i tried steelwork detailing got the result. but hvac and pipe sketches not able to get the result,

thanks in advance
senni

You need to generate Pipe Spools and HVAC Spools from inside Design first.
Utilities-->Producion Check (Pipework Application)
Utilities-->HVAC Spools (HVAC Application)

hi corrado,

How are you?

thanks for ur reply, i was not uptodate in ADP. It helps me lot.

Can u post any exercise or example to generate Hanger & support drawings?

thanks in advance
Senni

Which application are you using? MDS or Hangers & Supports?

Corrado good morning,

Actually im taking classes on Draft module for our trainee designers, In that i have completed general draft. But ADP im handling classes first time.

Thats why i need some logic how it draws the support details.i know it will give inline with steel references.( im not used MDS and H&S)

please guide me on this regards

In order to generate Hangers & Supports Drawings from Draft ADP, you need to create your supports using Hangers & Supports Application in Design.

Corrado Thanks,

Let me try with H & S

senni
