Draft Module Backing sheet how to use & select?

Backing sheet how to use & select?

NUCLEAR over 13 years ago

Karen Agdipa Hermoso over 12 years ago
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
NAGENDRA VUDDAGIRI over 12 years ago

You have to use configurable dxf output to generate dxf in colour..

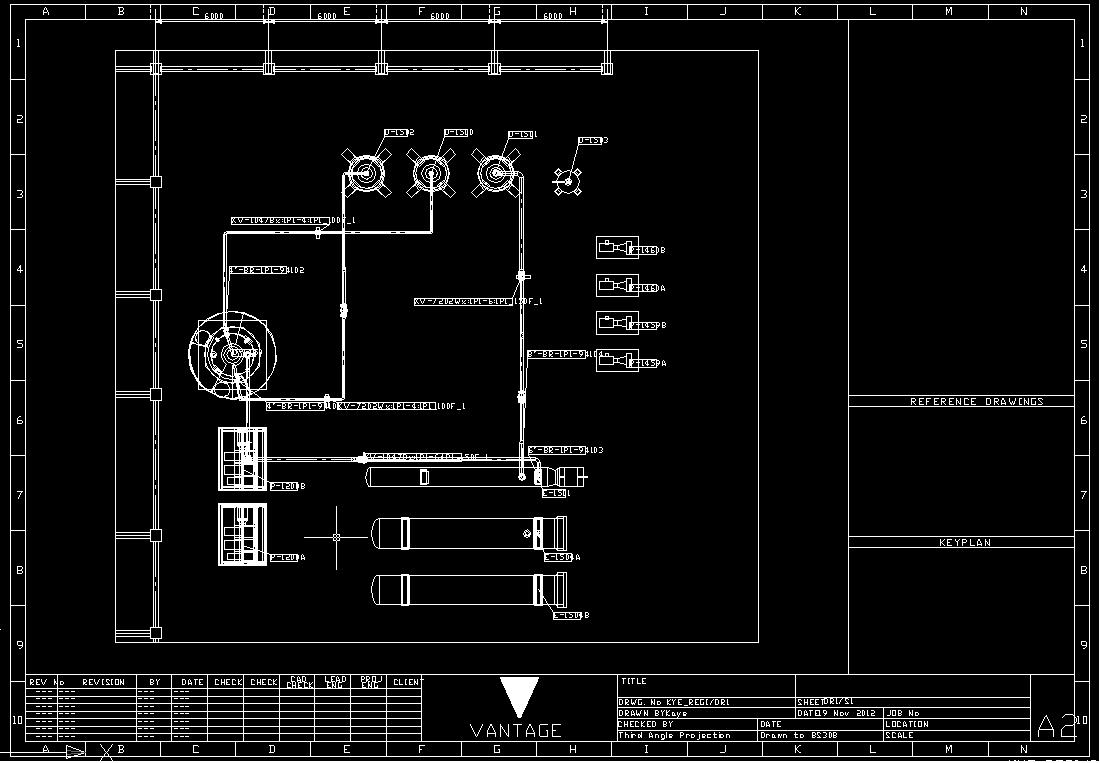

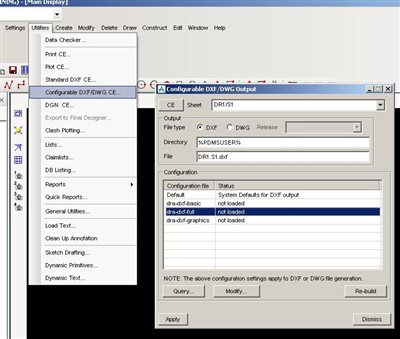

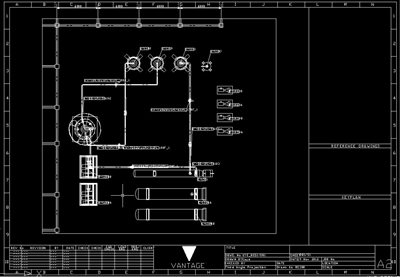

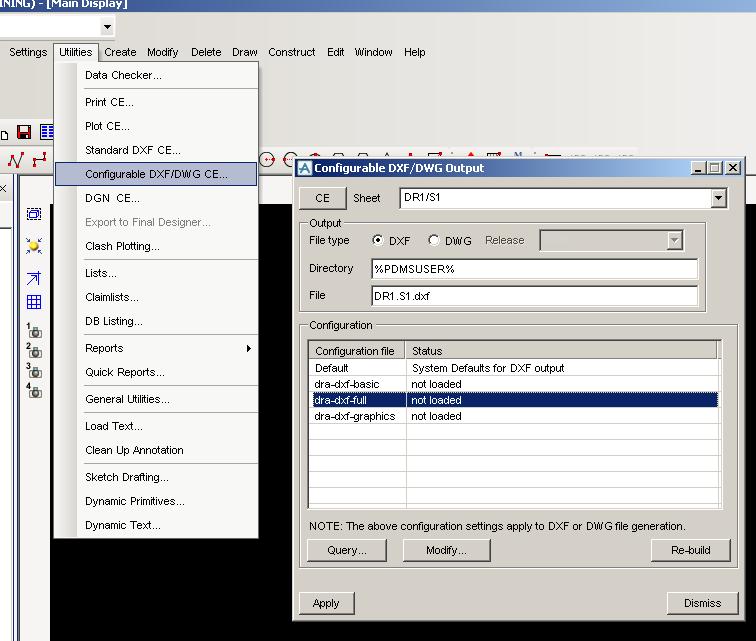

check the attached snapshot
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
NAGENDRA VUDDAGIRI over 12 years ago
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Karen Agdipa Hermoso over 12 years ago

Thank you so much vnk17200414. It works:tennis:
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Karen Agdipa Hermoso over 12 years ago

how about importing backing sheet from Autocad to PDMS, how to do it? Because I want to create back sheets from scratch in Autocad then i want to import this back sheet to PDMS Draft.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
NAGENDRA VUDDAGIRI over 12 years ago

check these threads for information on creating backing sheet in autocad

http://www.avevaworldusergroup.com/forum/showthread.php?t=1405

http://www.avevaworldusergroup.com/forum/showthread.php?t=10557
