Small bores change to single line

also, hierarchy of RRUL elements under RRST is important.

You should create a different and specific Representation Rule where all pipes are drawn in double line, no matter their diameter.

No. You should create a brand new RRST.



A section of a line is a point. So how can you expect to see single line pipes in that sectioned view?

Thanks Corrado.... i have created the specific RRUL for ALL PIPES in double line.... in the RRST hierarchy it is placed after the smll bore & large bore RRUL's..... still no result.... the problem still exists.

There is a new (PDMS 12) functionality that could do the job.
It is difficult to explain it here.
You can have 2d symbology in Draft that replaces or overlaps design elements.
So you could think to assign pipe cut symbols to support ATTAs on front views.
But you have to implement ATTA Part Families, Part elements etc etc.
It takes some time but it should do the job.
You can read C:\AVEVA\Plant\PDMS12.0.SP6\Manuals\Docs\PDMS User Bulletin12.0.pdf Chapter 8.5 Symbolic representation of design objects

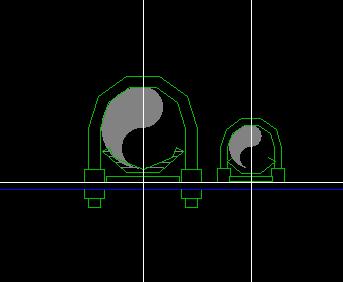

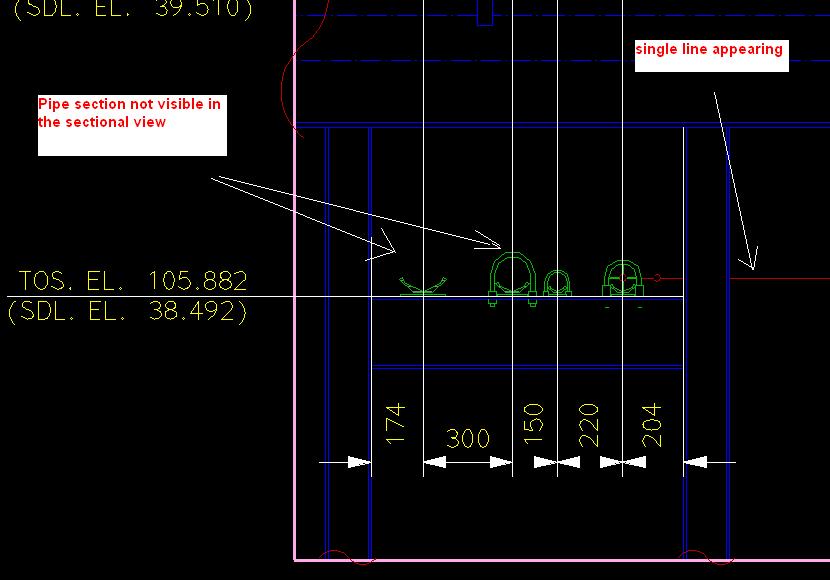

But logically irrespective of weather the line is shown single or double ... in a GA drawing i have to show the sectional view of a pipe, not just a point..... i just wanted to know if there was any option for that.... Ok.. i nderstand there are some limitations... i have to workout on that.
thanks for the efforts corrado.
