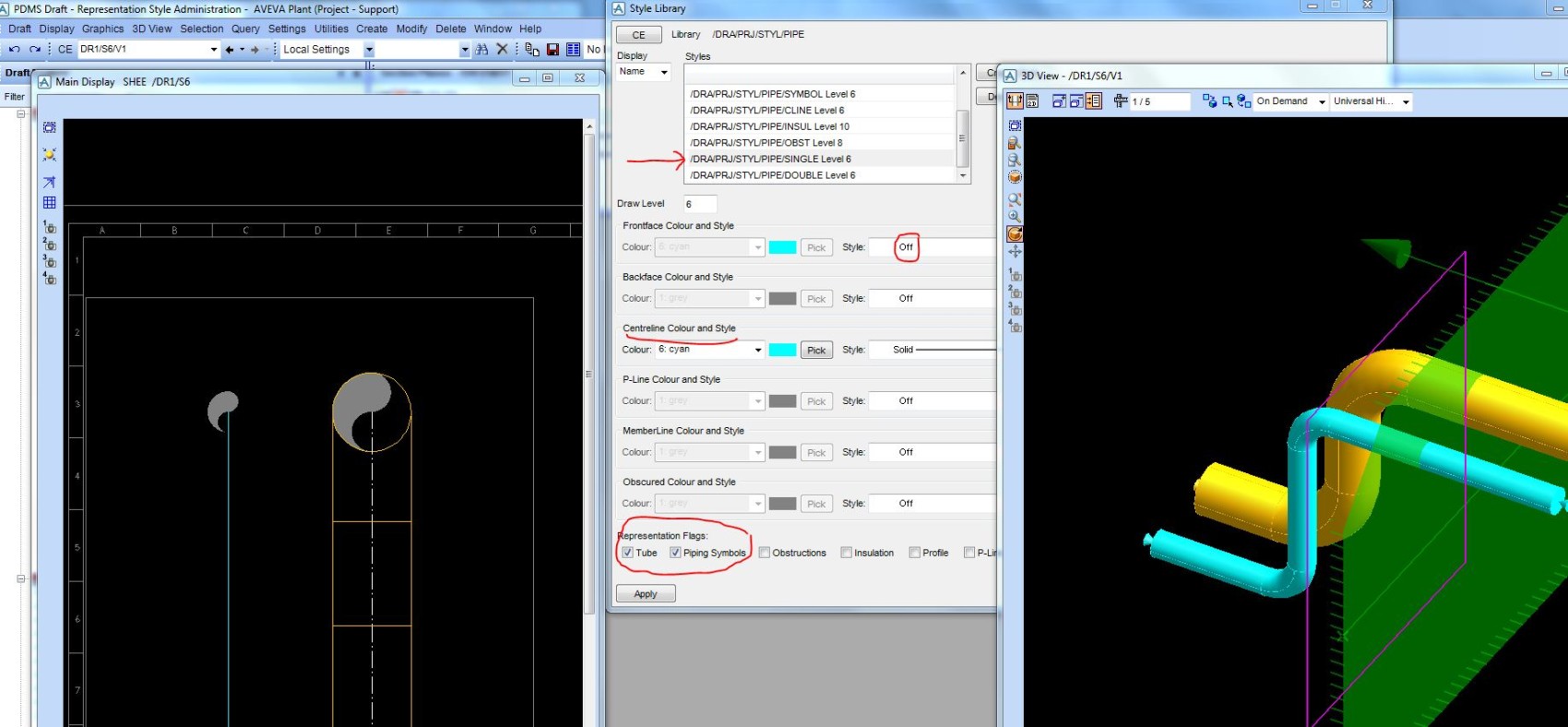

u have to turn off the "TUBE off" for the rule representation..... tube off is the attrinute of style library and the catalogue elements should be developed as if in tube off they should be seen as single line....... write two rules saying when the abore is greater than 14" use tUbe on style library and for below size use the style library of tube off.....
coming to the 2d symbol.... cross section cannot be given for the single line representation..........
but when we set the rule the dropping point of the pipe shows for socket weld pipe only but for butt weld pipe the drop is not coming ...????
how it can be done???
Hi corrado[COLOR=#3E3E3E]
when the pipe is going in the downward direction , in single line piping we show drop of pipe. and this drop of pipe is not comming for butt weld piping.[/COLOR]
