PDMS to dxf layer colour changing method?....

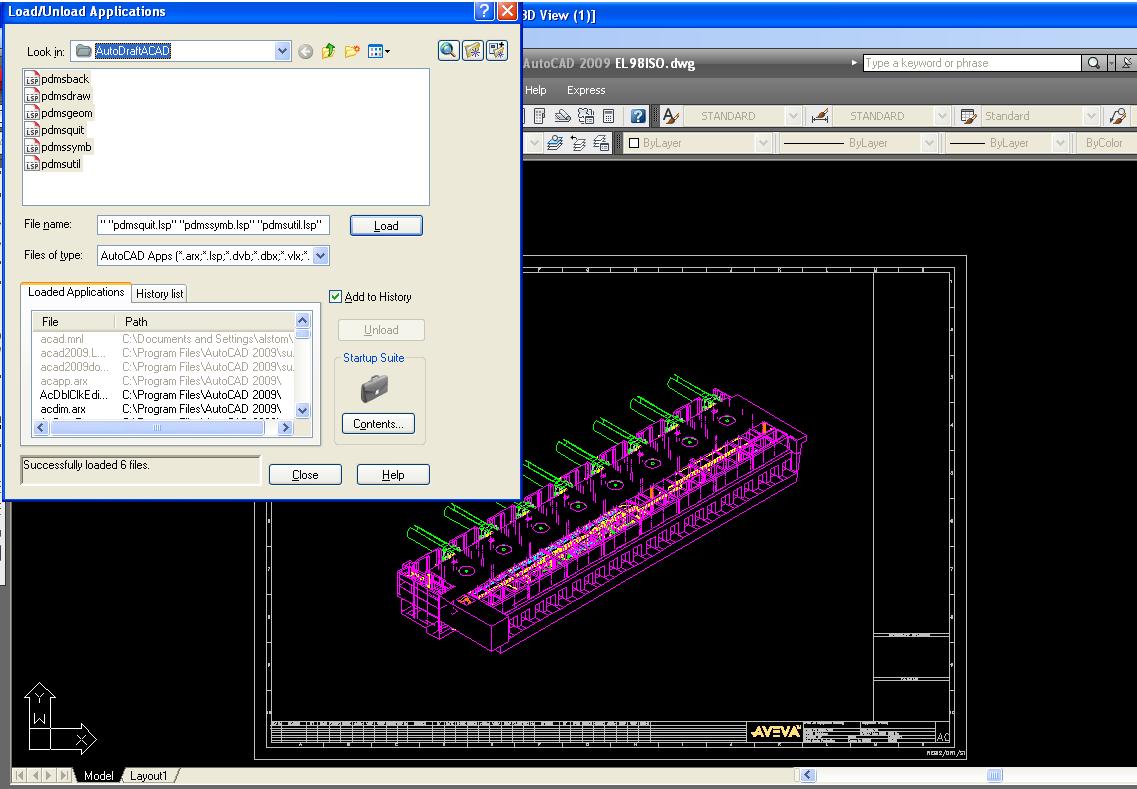

In autocad type "appload" or "ap" and browse to the below path and select all the lisp files in the folder and click load.

Path : C:\AVEVA\Pdms11.6\autodraftACAD

After loading the lisp files type "PDMS_COLOR" without quotes. i think this solves ur problem.

Hello Mr Mandark... ok.. i will tay... but am using 12.4...

RESULT:   Unknown command "PDMS_COLOUR".
PLZ HELP ME...

its PDMS_COLOR not PDMS_COLOUR.....

lisp files will be available in "autodraftACAD" folder which will be in default application installation folder. which ever version you use.

No PDMS layers found............... this type of comments indicate.

didnt get your pont shunmuga, can u explain it clear? did above procedure work???



Hi SHUNMUGA

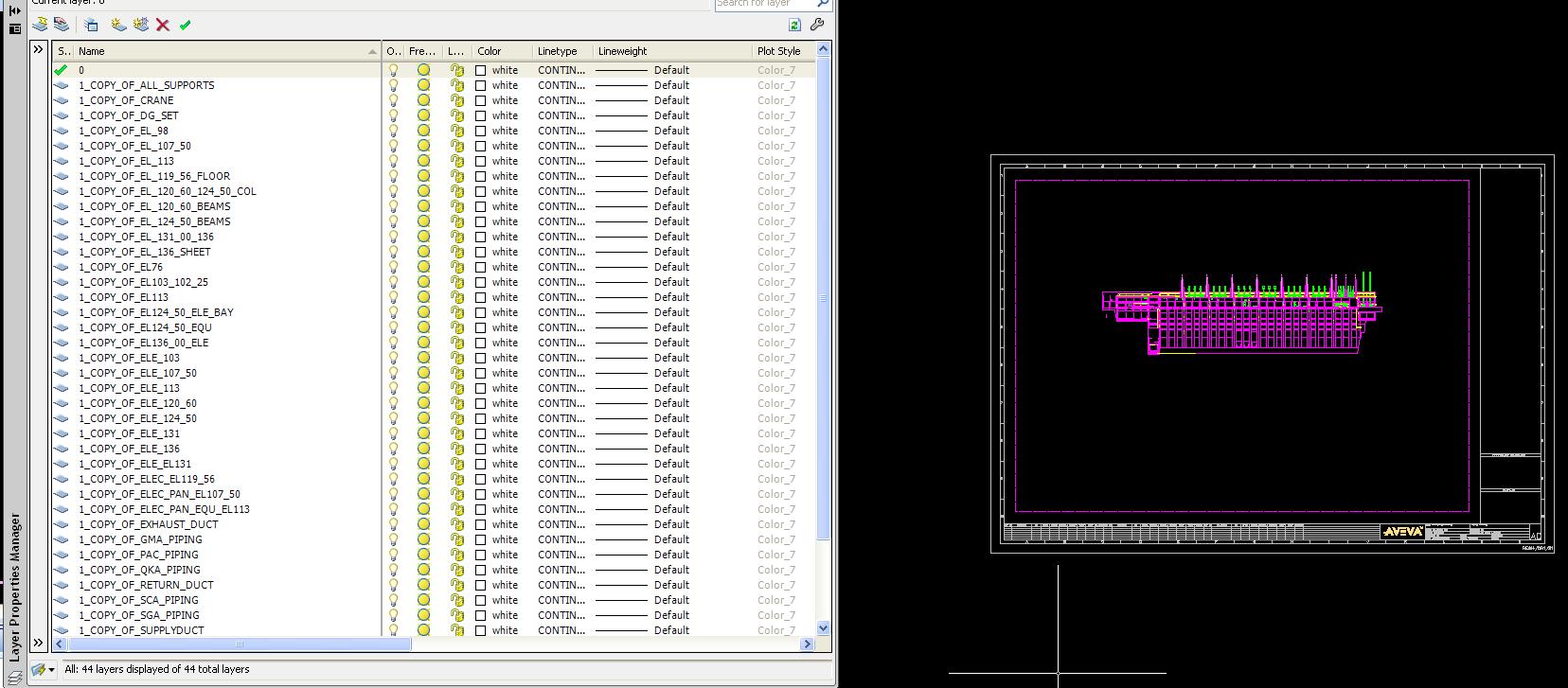

I suspect that you are using a non-standard dxf output (maybe dxf configurable), so it not working. You can try the standard way (dxf standard), or open your dxf configurable file
in a text editor (notepad) and replace '1_Copy_of' into 'GT' and then after loading in acad type in command line of acad: pdms_color
