we faced longback the same problem, bends large dia bends,mitered bends will not get a weld and a dividing line also won't appear, bend will considered as pipe in this cases.
if these are elbow components it will not give any problem.
What do you mean when you say "Of particular Eblows in the model were loaded as "Bend" in Piping Class" ?
Could you please explain in detail which kind of component/connection you need to manage?
If you really need a weld in that point, why don't you create a real WELD element?
Hi Corrado.
I spoke with the client and in the end we agreed that it considers proper to convert the components of type in Bend in Elbo.

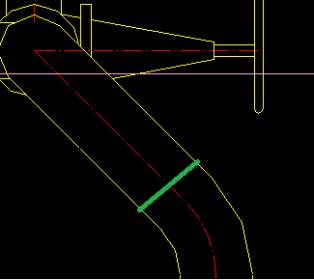

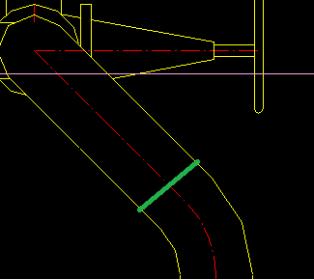

I'm going to create a macro that will change me all the types of the components concerned, from Bend to Elbo so that they can appear welds in Draft.
Subsequently'll update the Piping Class in order to solve the problem permanently.
I'll just have to solve the problems that when I change the type of component in Design I do not appears in the section of tube(but if I make a move By X 10 and By x -10 I I get the tube), but this is not the appropriate section to talk about this issue.
Thanks for the advice.
