scale problem

Srikanta
Srikanta over 11 years ago

  • Sign in to reply
  • Cancel
  • Srikanta
    Srikanta over 11 years ago
    When export draft sheet to Autocad we have notices that there is little differnce in scale.
    Eg. 4500 in draft meassting 4121 in Autocad. Why this problem ? Please.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Juan Manuel Gutierrez Valderrama
    Juan Manuel Gutierrez Valderrama over 11 years ago
    what export option file do you use?
    If you export the dxf file at scale 1/1 and then scale the dxf in AUTOCAD it's a little difference.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Srikanta
    Srikanta over 11 years ago
    Please let me know which option file to use and procedure to bring correct scale in Autocad.
    we are using system DXF and Configurable dxf sometimes. Both option has same problem.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Juan Manuel Gutierrez Valderrama

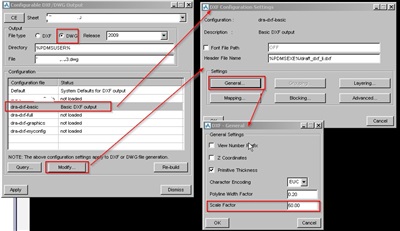

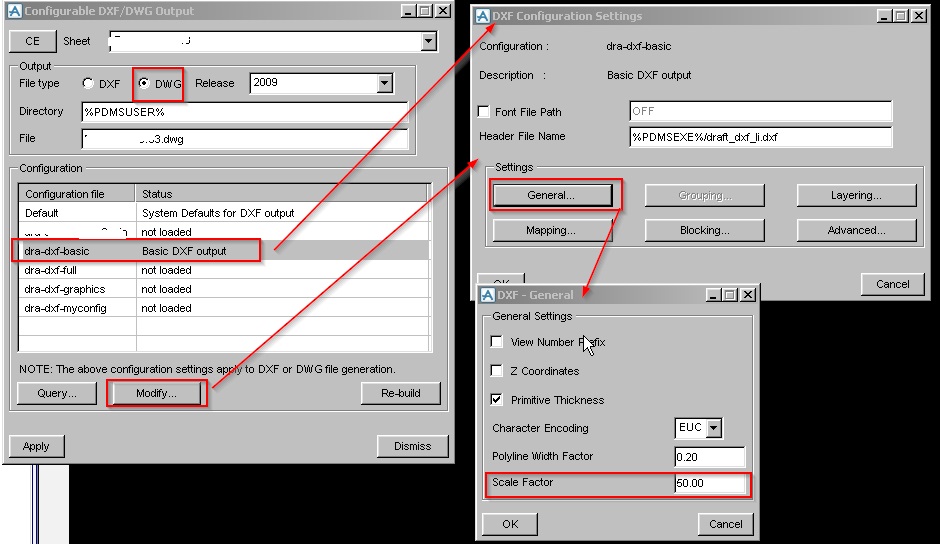

    Juan Manuel Gutierrez Valderrama over 11 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Dave Tassinari
    Dave Tassinari over 11 years ago
    take the scale of the largest view. for example 1:100 and type the inverse as a scale factor in the utilities>dxf configurable options menu. When you do this, your graphics won't require rescaling in autoCAD.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Srikanta
    Srikanta over 11 years ago
    Thanks to all, It is working. All I had a problem with a scale factor assigning.
