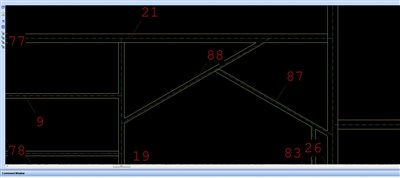

how to control angular dimension between to section ??



hi,

create the angular dimension with plines any end.

Then modify the pkey and pkdistance of ADIM, DPPT1 and DPPT2.
Pkey is the pline of the section (BOS TOS LEFT RIGHT.... )
Pkdist ist the length factor of the section (0=start 1=end 0.5mid point)

Thank you for your Answer. Finaly We switch to AVEVA E3D Draw. No more problem of Dimensioning or other time consuming features of Draft.
