How to convert drawings to Auto Cad 2D

Dear Experts,

Can we convert the draft into auto cad 2D (.dwg) file?

If so, Please explain me the procedure to do the same.

Regards,
Arun

Utilities > Standard DXF CE or Configurable DXF/DWG CE

Thank you...

Dear Friends,

I have got a new problem in converting the PDMS draft file into Auto CAD file.

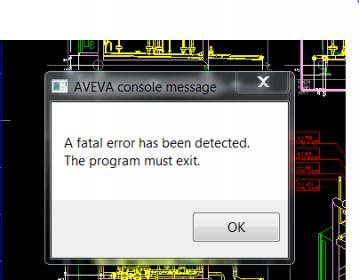

While converting a file in a registry, the PDMS is giving fatal error.

This is happening for one particular file in a registry and other files have no problem to convert.

Kindly give some suggestion as recreating the said file will take lot of time.

Regards,
Arun

Hi Arun,

By file you mean drawing? What is the error?



check your command line.
If there any errors with the drawing, they will show up there

Do graphics update all for the drawing file and try output to dxf file.
If the problem persists.

Delete the drawing registry and create new one.

I am having similar issue... I am trying to export configurable DXF/DWG  to a DWG... but need to change the scalefactor to 1.25.  when I do this some of my pipe is not scaling properly.  Any suggestions?
