Tutorial: User-Defined Hatch Pattern





Hi, thanks for appreciation.

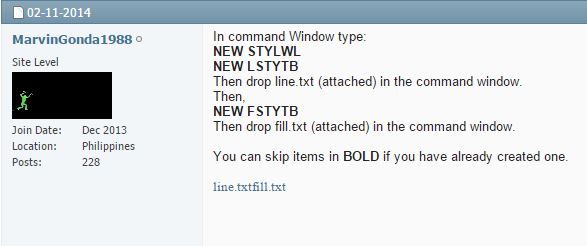

Where did you get the file?
I've never attached a file on this thread.



^^$S- -- Synonym translation OFF

Try saving the file in a UTF No-Bom format....



Which PDMS & Fix are you using?
I have tested it with AVEVA PDMS Draft Mk12.1.SP4.16 and if I query the attributes I get:

Attributes
Name HPATTERN 1 of FILLSTYLE 1 of FSTYTB 1 of STYLWL 1 of WORLD /*
Type HPATTE
Lock false
Owner FILLSTYLE 1 of FSTYTB 1 of STYLWL 1 of WORLD /*
HAngle 45degree
HSeparation 3mm
HOffset 0mm
HLStyle Solid
PatOffset 0mm
PatAdvance 0mm
Function unset

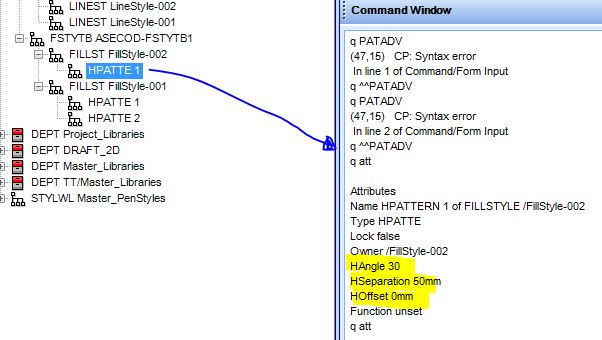

Ciao Corrado,
we are using 12.0 sp6
maybe with this release such attributes are not available.
thanks anyway

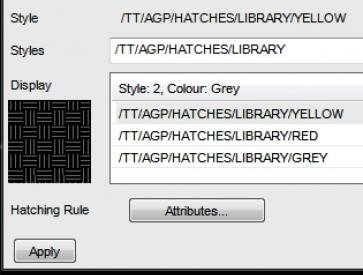

I'm just getting slightly angled horizontal lines with this, no matter what setting I use. Anyone getting it to work?
