Required Web lines of structural member in hidden format in draft drawing



check DRGP (Drawing Priority) SCTN attribute is used by DRAFT.
Make it 0 under SCTN.It won't appear on draft

Deva Thanks for reply,

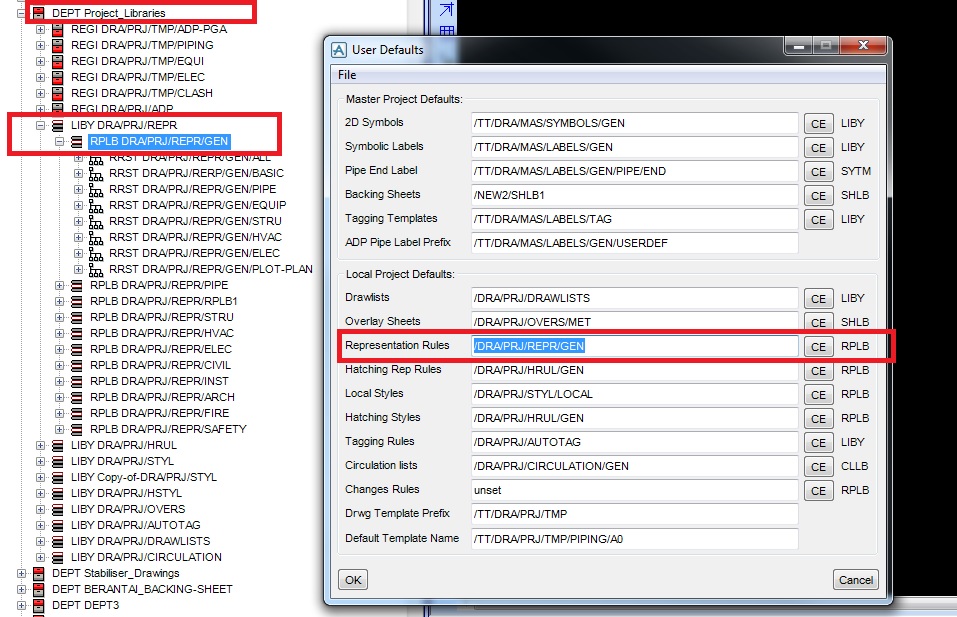

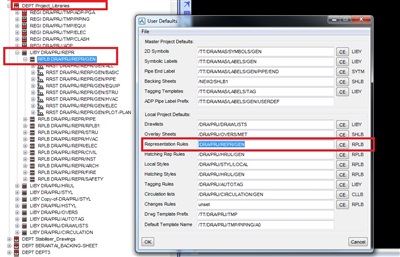

But DRGP is already set 0 as default, still it is not solving the problem. whatever changes I made in style library for colour & style as per attached snapshot, is also not reflecting in draft drawing. Please guide.

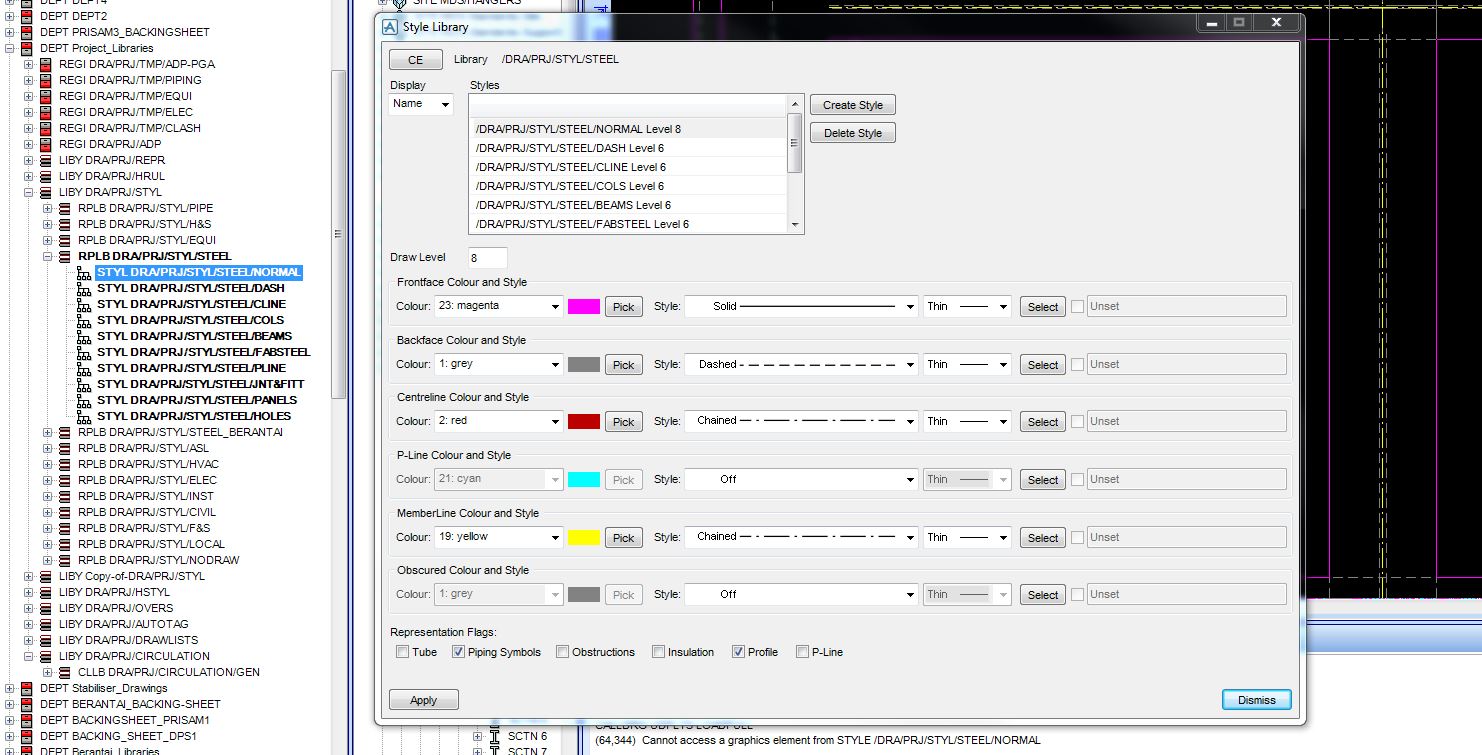

try to play with styles in the second picture.

Some Testing is required for this.Trail and error

Thanks Deva, Actually I have done lots of trails in styles, but no effect. colour is also not changing. I don't know where I am doing mistake. I think it is some where I am missing some settings in representation rules.
Can you please guide me for basic draft setup.

do you want to have styles for different p-lines?

if it works for you then I believe it is OK

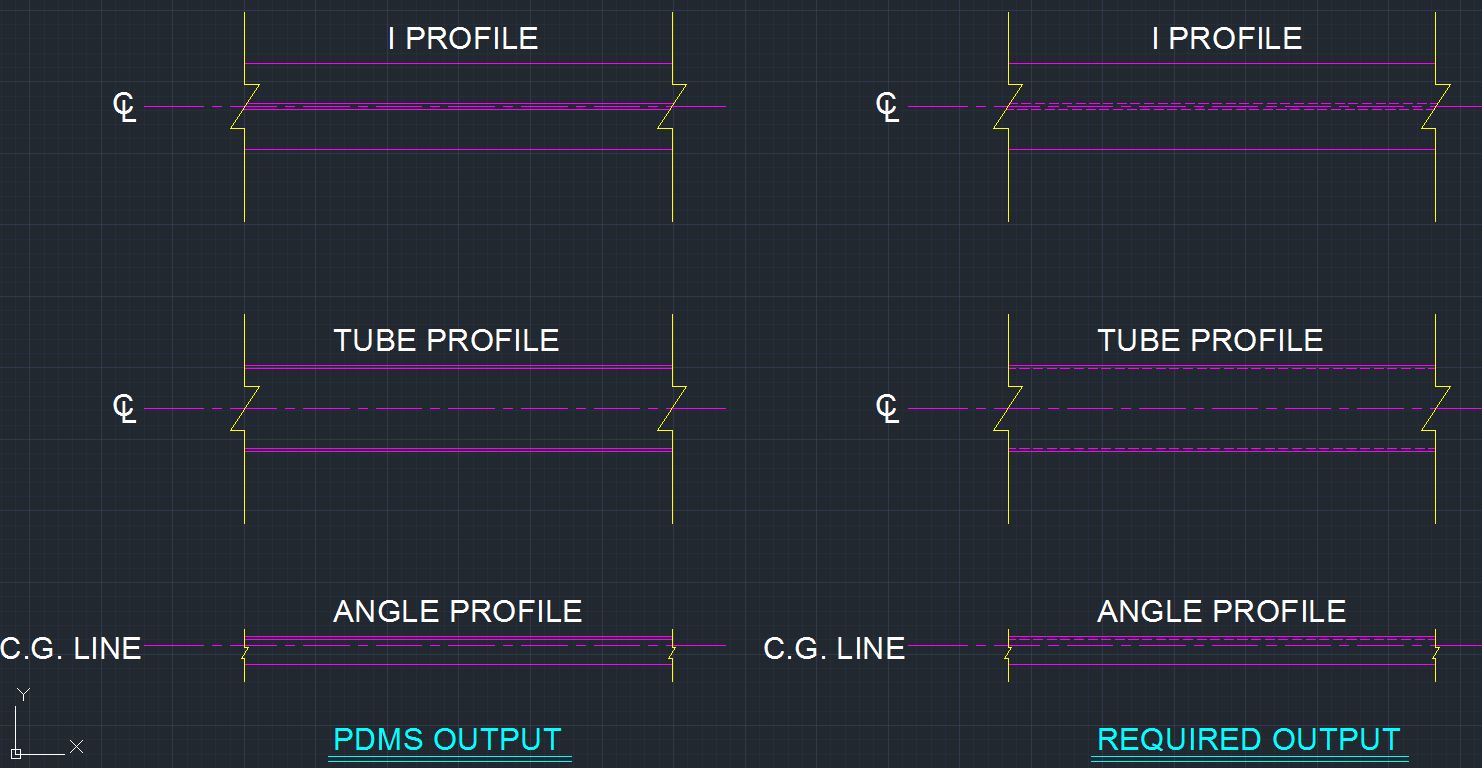

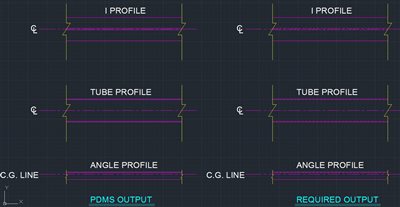

Could you please attache a picture of what you are expecting to get?
