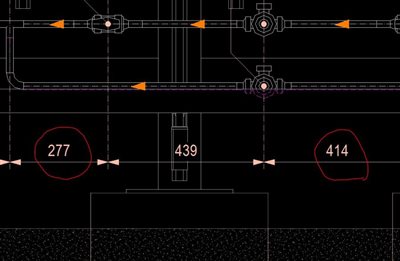

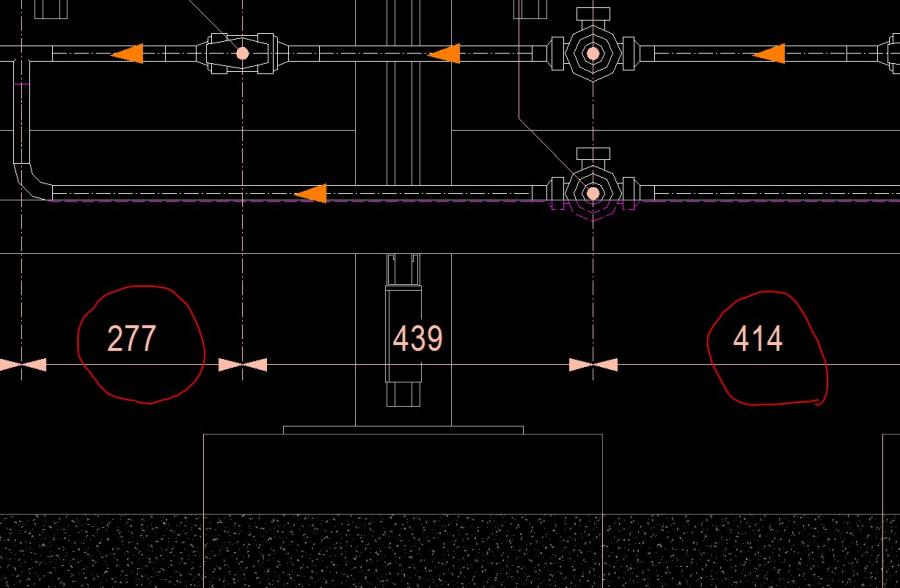

In my case, i maintain the distance of center line between the two section as round value.
But face to face distance is not in round value. so our client needs the two different drawings as isometric and fabrication drawing.
In that case what i have to do?
In my case, i maintain the distance of center line between the two section as round value.
But face to face distance is not in round value. so our client needs the two different drawings as isometric and fabrication drawing.
In that case what i have to do?
But if all is modelled correctly, including gaskets and flanges, then in the real world it is either a round value or it is not, either way overwriting a dimension is not correct. If the dimension between the two faces is a round value, then can you not change the DDNAM of the DPPT to the correct reference and the dimension is still correct to the model. If the catalogue members are not modelled correctly then it should be taken up with the Cats and Specs dept for your company.
Well,
although this request is atrange it can be done but only if pml is written to change btex on glab elements or values on dimension lines....
as the others said, why not change simply design if the values are not good enough to be delivered as they are.
