Length of Projection lỉne

Dear all

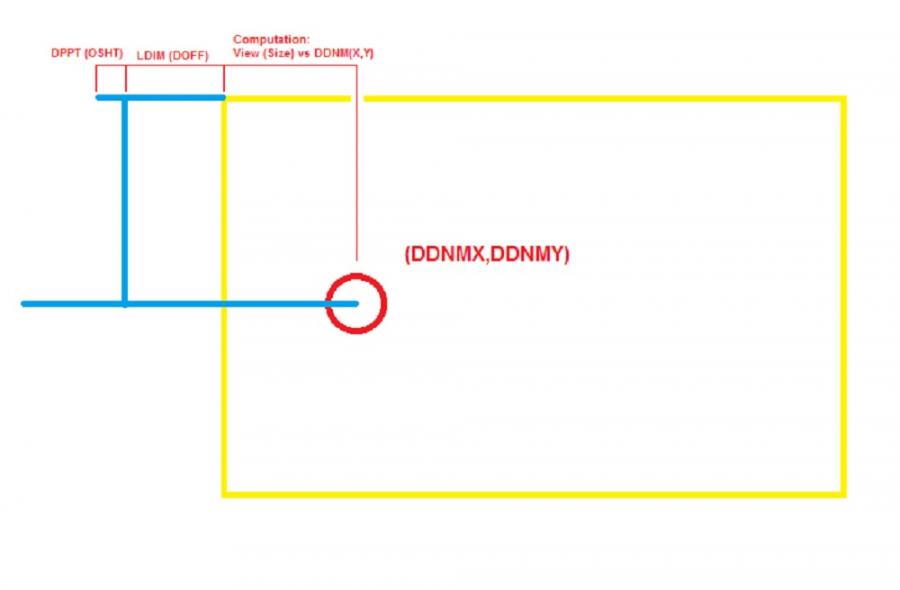

how to get length of projection line?

just used clearance on dimension..

adjust by PLCL@... pick any where you want by 2D cursor...
and OSHT@ for the overshoot..

why you need the length of projection line??

Dear Han_BFY,

[COLOR=#333333]i have some GLABs and i want to set [/COLOR]attribute:[/COLOR][COLOR=#417394]apoffset with [/COLOR][COLOR=red]command: lead atta @ automatically to end point of DPPT.
if i know exactly length of [COLOR=#333333]projection line, i can assign that value for apoffset of glab by the way: lead atta 0 $!length of projection line :)[/COLOR]

what you try to achieve by using GLAB and DPPT end point..??
the GLAB contain what codeword??

my question is which end you want?? close to dim line or close to object..??
as I know..  projection line don't have lenght attribute...





Can I ask your macro for arranging your label that way? I have problem on how to arrange labels. Thank in advance.

-JaysonX96

Oh, jaysonx96, until now, i am studying this macro. it still not perfect
