Issue with Company Logo on Autocad Template



[COLOR=#333333]1. Open your (.dwg) file in AutoCAD.[/COLOR]
[COLOR=#333333]2. Upload some (.isp) file in your AutoCAD from folder autodraftACAD by typing APPLOAD in AutoCAD command line. (if you not load-in yet)[/COLOR]
[COLOR=#333333]3. Type PDMS_SHEET[/COLOR]
[COLOR=#333333]4. Select ALL

I had followed same procedure.As I had stated in earlier post there is issue with logo.....................

outline the logo after taking into draft.

after outline you can apply fpen nlpen in order to get the results..

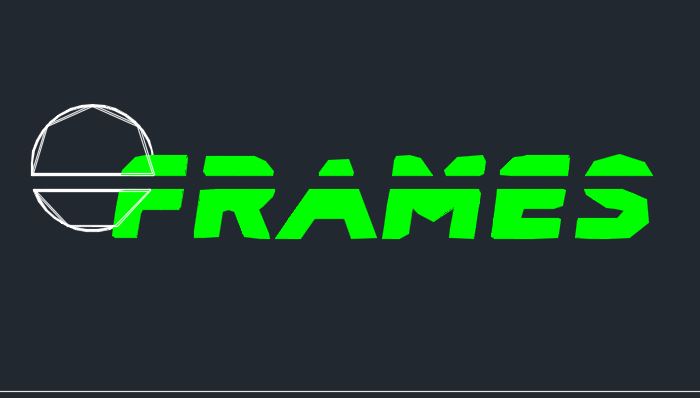

Dear Deva, after import logo, it's colour is no longer as at first.
Just white and black. Pls help

Make the logo as SYMBOL

in autocad ,

1. EXPLODE all entity
2. use PDMS_MAKE_SYMBOL and PDMS_SYMBOL

You need to explode the hatching. Also there should not be any arc, circle in the dwg. Ployline will do.

I know the procedure for creating a template for isometrics. What about the backing sheet for DRAFT module to extract GA's.
