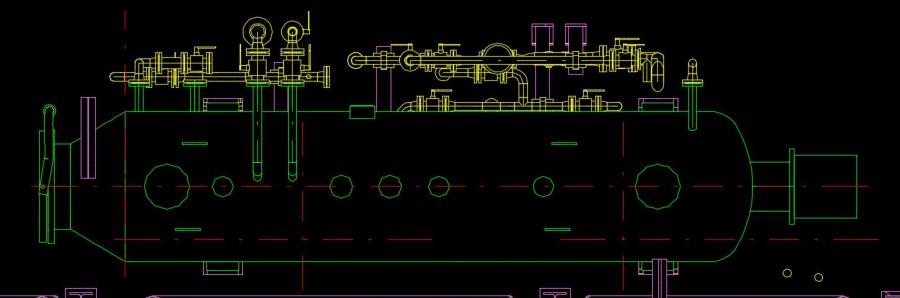

Mismatch between Centerline representation in draft and after exporting to DWG



Please check with configurable DXF/DWG with configuration settings.

Hi Pmlsan,
With change of line type scale to 0.5 in AutoCAD which is currently 1,it fulfill the requirement. To implement this in draft which setting  I need to modify while exporting?

Any luck changing the line type scale? I have the same issue while exporting to PDF. In Draft, it looks perfectly fine

Yes, Alvin. Only option with us was to change line type scale ..and it works ..not upto mark but ok...

Is there anyway to do it in PDMS Draft? I have more than few hundred drawings and I did not want to open it one by one with AutoCAD. I was exporting them as Pdf from Draft.

I found a solution. I create a new line style with modify PATREP (Pattern Repeat) and assign my Line style to this new customized line style and it was working fine.
