Remove gap in dimension line...



Plclearance on the DPPT Level will remove the gap.

Under LDIM Play with plclearance of LDIM Elements.

Jacinek, I've never been able to get an answer for this either.
I don't there is a setting unfortunately

[QUOTE=jacinek;100010]Hi !

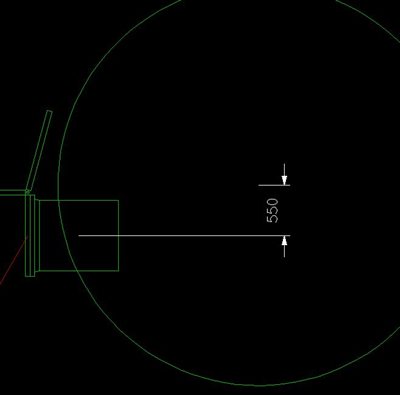

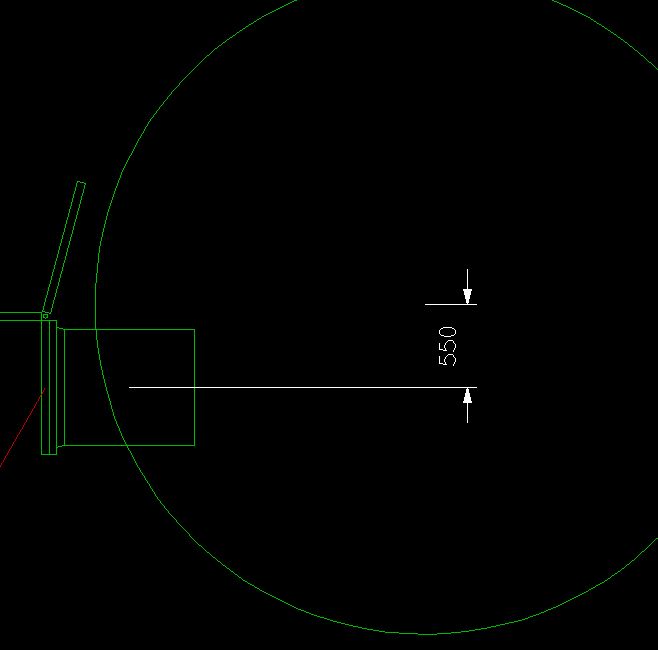

I'm looking for solution for "issue"  from picture :)
Which parameter i have to change to become a line between projection lines ??
It is always like this, when PDMS "think" there is no enough space between lines.
Thanks !
M.

PDMS 12.0 SP 6.50

[ATTACH=CONFIG]9462[/ATTACH]


Set the DTANGLE VERT and it will force the line between, you will then need to set the DTOFF 0 2.5 (assuming that your text is normally 2.5mm above the line. DTANGLE HORI is for horizontal dimensions.

Hope this helps.

Mick
