Insulation thickness GLAB?

Hi

I want to make a glab/slab that displays insulation thickness on pipes.
The Btext of the Glab is set to '#INSUL'

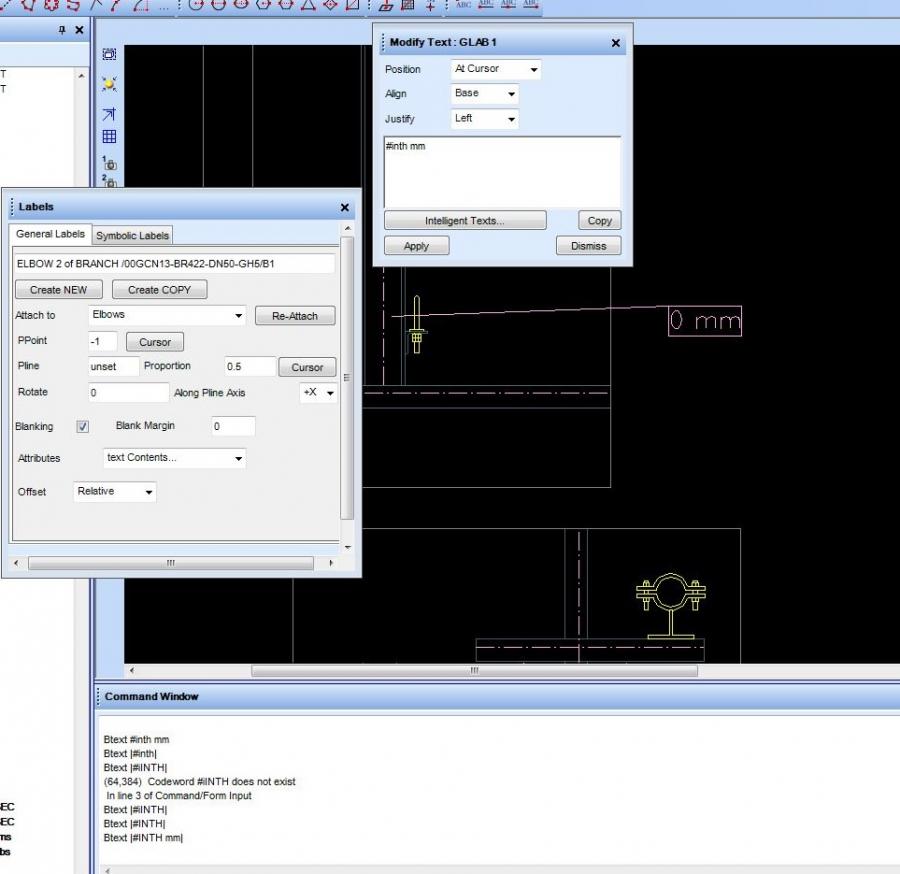

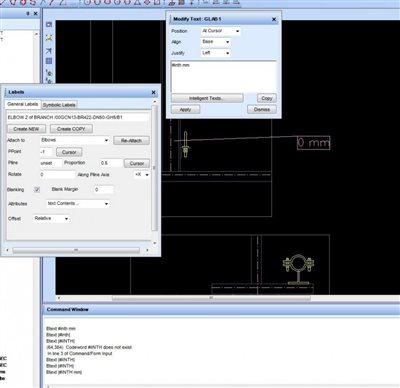

Warning: Data not accessible for codeword #INSUL in GLABEL 1 of LAYER /20040/S1/V2/TAG-PIPES

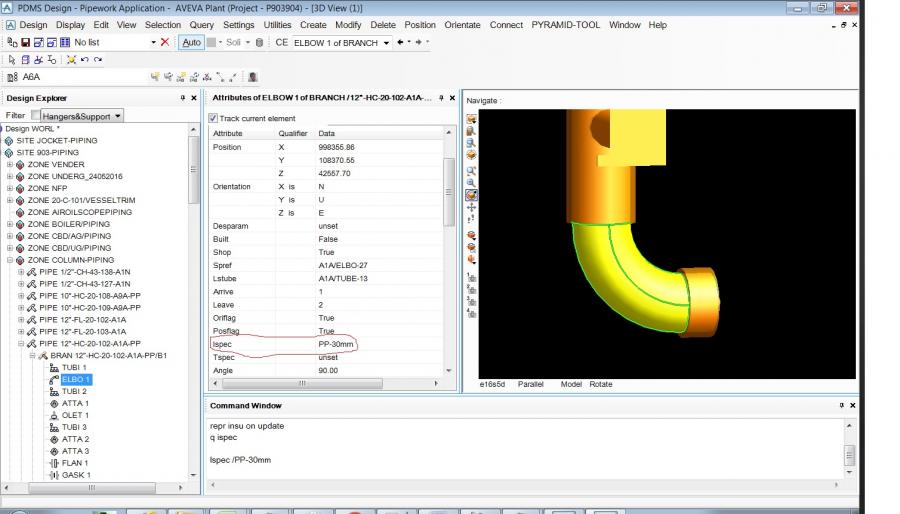

The Glab is connected to a Elbo that displays insulation thickness with Q INSU in design.

I know that INSUL is a pseudo attribute. But that should not be a problem!?
#CUTL used on SCTN's is also a pseudo attribute but works great in draft.

When I query Q INSU in DRAFT this error message is displayed:
(2,201)   Element TEE 1 of BRANCH
/S01-452021.00/B1 does not have
attribute INFG

Does anyone have a solution to my problem?

For insulation thickness try Q INTHI................

q Inthi doesnt help you

Try to fill a UDA by a macro and  fill actual thickness

you can use same UDA as a btext

q Inthi doesnt help you

Why not?

#INTH should work...



I have tried it which is not working.Hence  I suggested

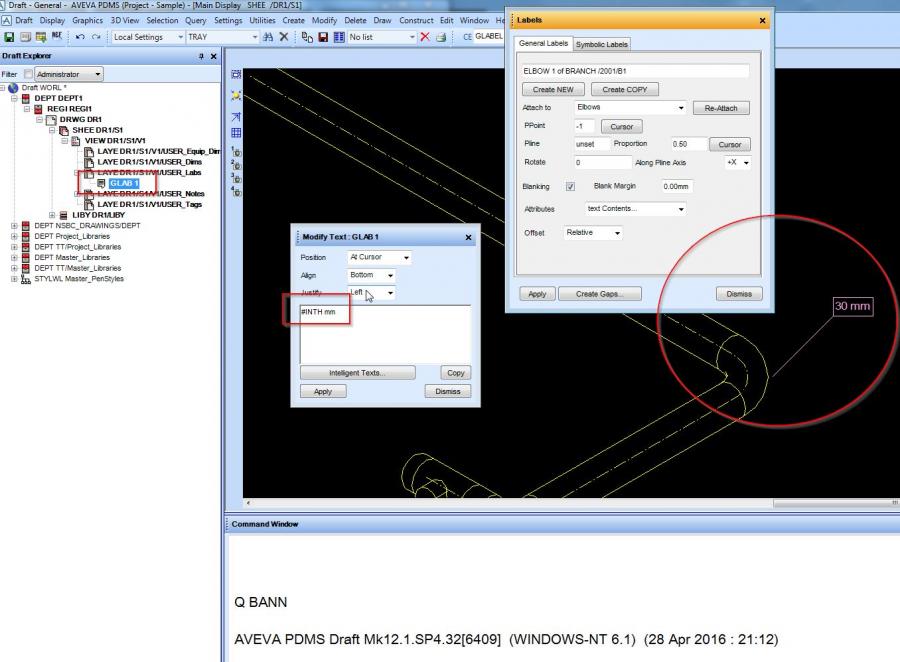

I have tried using your syntax on my command line and it do work fine.
anyway....nevermind...



@bsudhagoud[COLOR=#3E3E3E] [/COLOR]
Did you set a temperature for Branch?
