Text size changes when exporting DXF or DWG

Hello

I looked for this subject here in the Forum and I did find some topics related. But since I wasn't able to solve my problem with those posts I hope you can help me out.

When I export a DRWG from Draft using either "Standard DXF Output" or "Configurable DXF/DWG Output" all the texts in the drawing became 0,8 times smaller. This happens only with texts. The Backsheet size for example, stays with the same measure. See attached pictures for better understanding.

I tested in different projects and it happens in all of them

Any clue? Thanks in advance

[ATTACH=CONFIG]10327[/ATTACH] [ATTACH=CONFIG]10328[/ATTACH]

Which PDMS version/fix are you using?
Q BANN on the Command Window.
If I remember well, that is a known issue that has been resolved since a certain fix...

Hi Corrado

PDMS 12.1.SP4.43. It's strange. This problem starded recently. And in all projects. We used to export DXF/DWG without problems

Facing similar issue dimension Text height is set as 4 when exported to cad and checked the text height in cad its 3.2.
Tried copying all  fonts from C:\AVEVA\Marine\OH12.1.SP4\AutoDraftFonts   to  C:\Program Files\Autodesk\AutoCAD 2015\Fonts


similar problem for line thickness as well, set style as thin when exported to DXF its showing Thick.
AVEVA Marine OutfittingDraft Mk12.1.SP4.45[6720]

hi everyone,

i am facing the same issue in E3D 3.1, have a solution been found on this topic.

thank you,

regards,

Axel

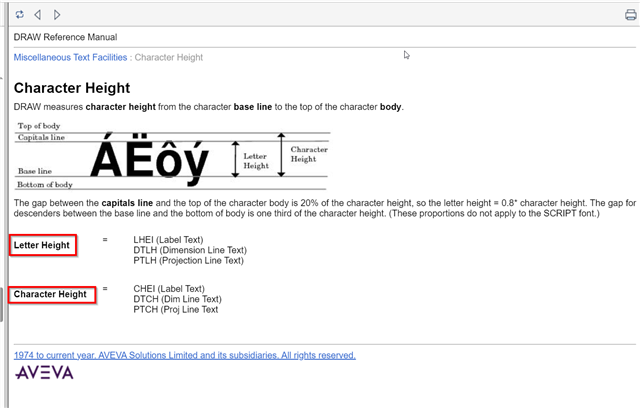

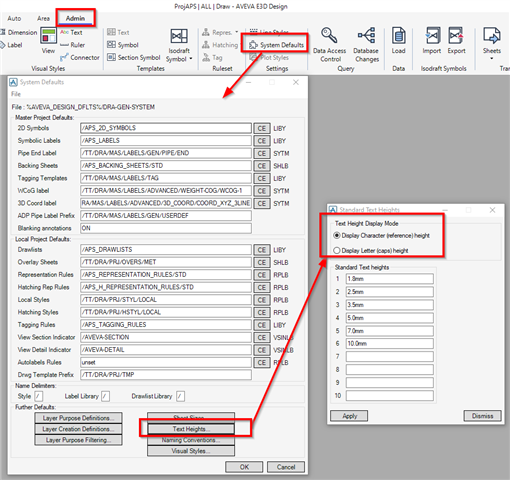

It could be related to this:

Please let us know if this helps...

Hi Mr Galluzzi,

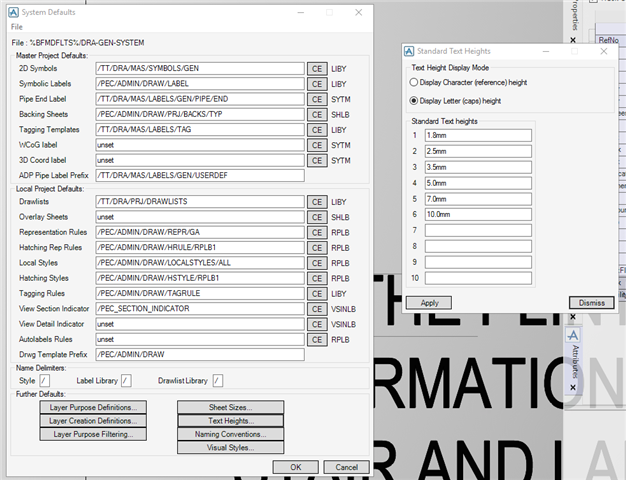

it partly works when I choose display letter caps height.

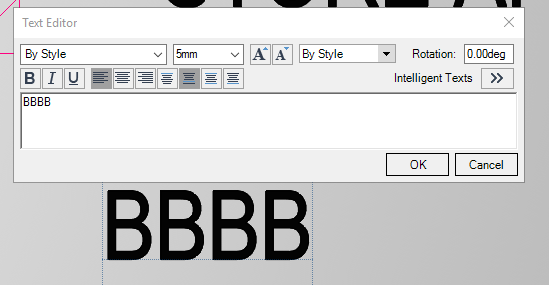

when I create a text with character height for instance 5 as shown below and when i export it to autocad,

the text height in autocad is also 5. So this solve the initial problem.

the only issue is when i check the attribute of the text, it gives a Cheitx of 6.25 and this can be confusing

for the users.

regards,

Axel
