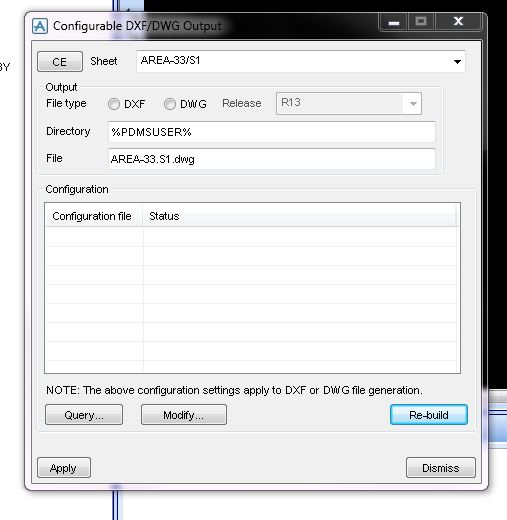

Error when using Configurable DXF/DWG



https://aveva.dev-verintcommunity.com/cfs-file/__key/communityserver-discussions-components-files/1605/241014full_5F00_dxf1.mac

Before typing that command you should "run" the configuration file as a macro.
For example:

$M/D:\AVEVA\PDMS\Data12.1.SP5\pdmsui\DFLTS\full_dxf.mac

Try and let us know...

Dear Corrado

hi

really this is my first time I want to use "Configurable dxf" and I have read the related draft manual for this but it was totally unclear for me.

would you please guide me to use this option? in fact, I want to insert different layers in dxf outputs from PDMS.

Thanks

Just take a look at the file named full_dxf.mac that you can find in ...\Data12.1.SP5\pdmsui\DFLTS.
You can add other lines/switches to create layers and associate elements to them as from the on-line-help (search for "layer export settings")
