Draft Module Pipe centreline thick
  • Forums
  • Resources
  • Mentions
  • Sub-Groups
  • Tags
  • More
  • Cancel
  • New
  • Replies 5 replies
  • Subscribers 5 subscribers
  • Views 23 views
  • Users 0 members are here
Options
  • Share
  • More
  • Cancel
Related

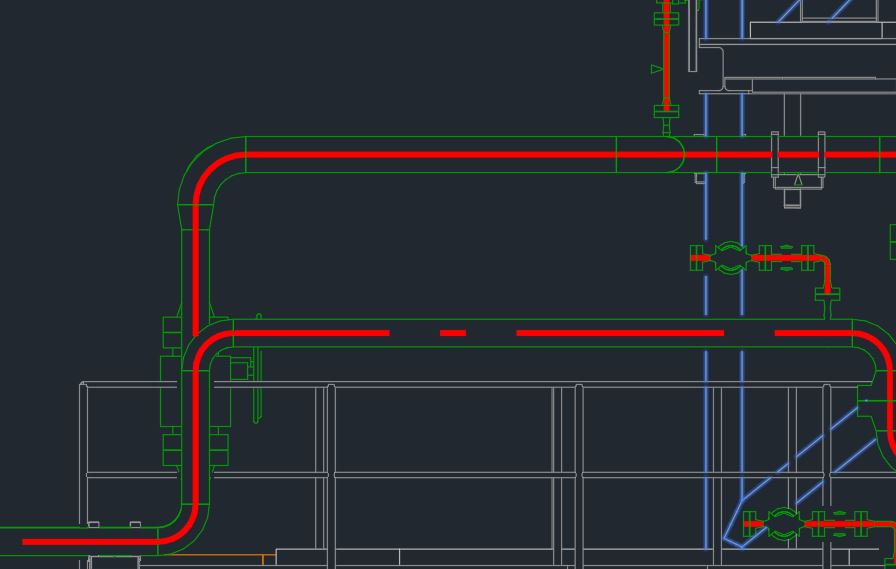

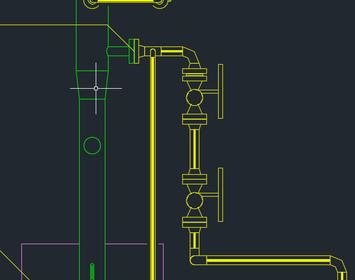

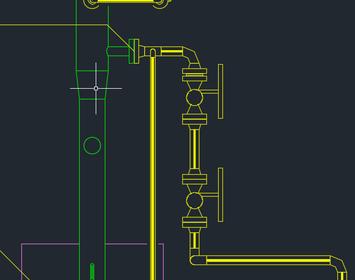

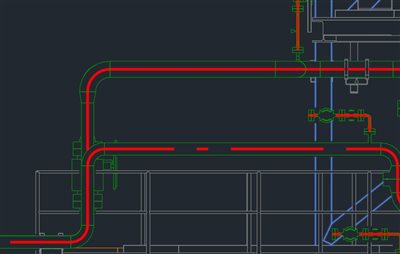

Pipe centreline thick

Udaya
Udaya over 6 years ago

  • Sign in to reply
  • Cancel
  • Udaya
    Udaya over 6 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Atish naresh parkar
    Atish naresh parkar over 6 years ago
    how are the settings on style libraries
    what type line style is used
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • zhangtf
    zhangtf over 6 years ago
    the minimal line thickness is 0.25mm when i set the line style to chain,dash,or etc (except solid,solid type line thickness could be exactly be 0.00mm in autocad). how can i set the other line styles (such as chain) exactly to be 0.00 ? use [COLOR=#333333]configurable DXF /DWG . thx![/COLOR]
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Girish S
    Girish S over 5 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • nguyễn ho?ng vũ
    nguyễn ho?ng vũ over 5 years ago
    Explode all polylines in autocad is the easiest way to solve this problem
