Draw Leader line of dimension
  • Forums
  • Resources
  • Mentions
  • Sub-Groups
  • Tags
  • More
  • Cancel
  • New
  • Replies 4 replies
  • Subscribers 6 subscribers
  • Views 38 views
  • Users 0 members are here
Options
  • Share
  • More
  • Cancel
Related

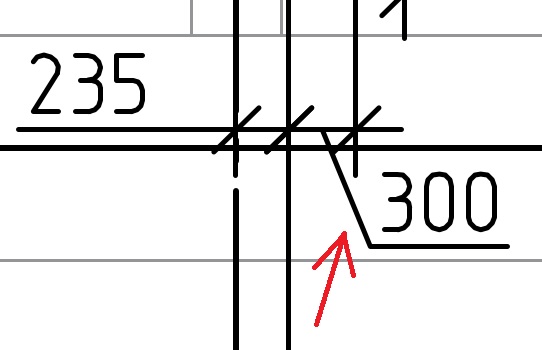

Leader line of dimension

Vitaly Vologodsky
Vitaly Vologodsky over 4 years ago

  • Sign in to reply
  • Cancel
  • Vitaly Vologodsky
    Vitaly Vologodsky over 4 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Matts Nordman
    Matts Nordman over 4 years ago
    You create it simply by dragging the dimensio text to where you want it and then enable the property "Leader line visibility" to ON in the vertex editor. Unfortunately you can do this in the 3.1 versions only, not in the 2.1 series.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Vitaly Vologodsky
    Vitaly Vologodsky over 4 years ago
    Thanks! It'll be very usefully, but now...
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Corrado Galluzzi
    Corrado Galluzzi over 4 years ago
    ...now, if you really need it, you can draw two STRA elements to reproduce the leader line.
    ;-)
