Representation of "Equipment Centres"

Hi all,

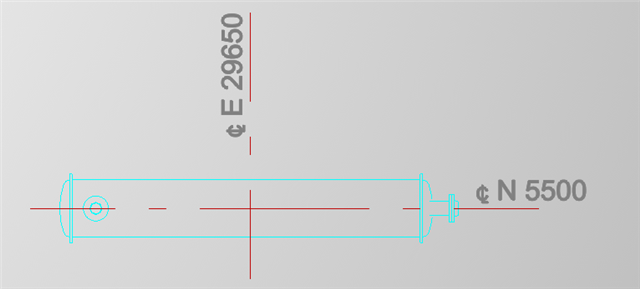

is it possible to customize the representation of the centerlines, created with the "Equipment Centres" tool? We would like to use this tool, but with a different line style and without coordinates. (We are using E3D Version 2.1.0.30)

I could not find anything in the help file. Maybe you guys have a hint for me.

Thanks in advance

Top Replies

Corrado Galluzzi over 3 years ago +1

Yes it is possible. Try editing the following files: MEQUICL UEQUICL REQUICL They are locfated in ....\Everything3D3.1\PMLUI\dra\adpgdp folder

Corrado Galluzzi over 3 years ago

Yes it is possible.

Try editing the following files:

MEQUICL

UEQUICL

REQUICL

They are locfated in ....\Everything3D3.1\PMLUI\dra\adpgdp folder
Cancel
Vote Up +1 Vote Down

Sign in to reply

Cancel
ismail asi over 2 years ago in reply to Corrado Galluzzi

Hi Corrado,

I have a question. Which file must be editing If I would change centerline type, centerline color, text font etc.? What means this files?

Thank.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Corrado Galluzzi over 2 years ago in reply to ismail asi

You must change UEQUICL

TEXP and STRA attributes must be edited to meet your needs
