Hello experts,
I have a modified my_full_dxf.mac file with defined blocking and layering rules etc, which I run via
LIEXEC /draft_DWG_li 'R24' ConfigData 'my_full_dxf' OUTPUTFILENAME 'C:\DUMP\myfile.dwg'
In Draw E3D 2 it seems to be entirely ignored: it runs fine; displays no errors; does not list the set of rules as in previous versions and exports a .dwg file with some (default?) settings that don't even correspond the ones set through the E3D GUI.
If I run it in older versions (aveva 5 and E3D 1.1) the script works as it should. When I run it it displays the list of set rules
Rule 1 : SWITCH USELAYERRULES ON

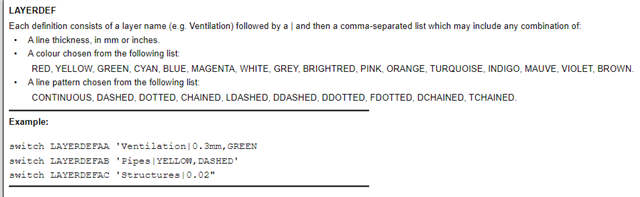

Rule 2 : SWITCH LAYERDEFAA PIPING|YELLOW,CONTINUOS
Rule 3 : SWITCH PrimitiveThickness 'ON'
etc
and gives expected results in the resulting .dwg file.
I tried adding the line
liload /Draft_DXF_LI
before
dlicon /my_full_dxf
Is there a known way to enable this for 2? My precise version id 2.1.0.32[Z21032-8]. I would prefer using scripting to GUI for batch exports and ease of transfer to other users.
Very grateful for any help!
