Command to Move TEXP in MODEL

Ralph 11 months ago

Hi All,

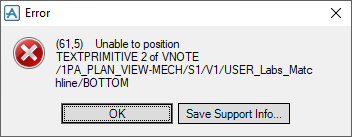

I tried moving the position of TEXP element (DRAW) in MODEL module using command, but it gives me the error below.

Command: BY X 10

Appreciate if you could provide me the correct command. Thanks.

Corrado Galluzzi 11 months ago

For DRAW elements placed under the VIEW in a VNOTE

These elements are considered part of the view and as such are moved in model units relative to the view scale.

SHEE coordinates cannot be entered for these elements

Try using geo coordinates instead: i.e. BY U 1000

Be careful about View Scale
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Ralph 11 months ago in reply to Corrado Galluzzi

Thank you very much. This is very helpful.
