Weld Numbering with Prefix

HI

I am looking for weld numbering in isodrawing with weld prefix
Currently we r getting Weld numbering as 1,2,3......
i want it as J1,J2,J3...... which consist J as Prefix

I tried to edit the weld prefix in spooler module to J and then extract they Iso
but the result is same 1,2,3
the Prefix comes only in weld table


can anyone help me out in these issue
how to bring the weld numbers with prefix ???



Thanks in Advance

[QUOTE=atish;38588]HI

I am looking for weld numbering in isodrawing with weld prefix
Currently we r getting Weld numbering as 1,2,3......
i want it as J1,J2,J3...... which consist J as Prefix

I tried to edit the weld prefix in spooler module to J and then extract they Iso
but the result is same 1,2,3
the Prefix comes only in weld table


can anyone help me out in these issue
how to bring the weld numbers with prefix ???



Thanks in Advance



In spooler module we have 'WLDGRP' (weld group), if u get attributes form one 'IWELD' then we can see 'Wldprefix' .     Wldprefix 'J'.

in isodraft module in option file >>> weld numbering we should change source to FROM DB , this means iso searching in Fabrication DB (spooler).

alright, u can change the name too, and in option file set the name for weld.
if u wont see the weld prefix get the DXF output file and in AutoCAD change wut u want!!!
i think this is a good way.
cheers
hope it helps

In autocad changing is easy, use that

[QUOTE=brian;38997]In spooler module we have 'WLDGRP' (weld group), if u get attributes form one 'IWELD' then we can see 'Wldprefix' . Wldprefix 'J'.

in isodraft module in option file >>> weld numbering we should change source to FROM DB , this means iso searching in Fabrication DB (spooler).


I have done the same setting but i cant see the weld number as J1,J2 on isometric
but it represents on weld table
have u tried it and is it working for u
just send me a snap shot if its working at ur place

thanks in advance

[QUOTE=brian;39027]alright, u can change the name too, and in option file set the name for weld.
if u wont see the weld prefix get the DXF output file and in AutoCAD change wut u want!!!
i think this is a good way.
cheers
hope it helps


thanks for ur brilliant idea
hats of to u
i am already using autolisp method and in one command i am changing it into J1 J2
the question raised on pdms world so tht i can be able to solve it on PDMs itself.

my friend

Doing the prefixes in autocad is not a good longterm solution to this problem.

there should be some way to make the prefixes you set show up  directly on the isometric drawing rather than in a weld list.

i e a bubbel within "J1", "J2" and so on.

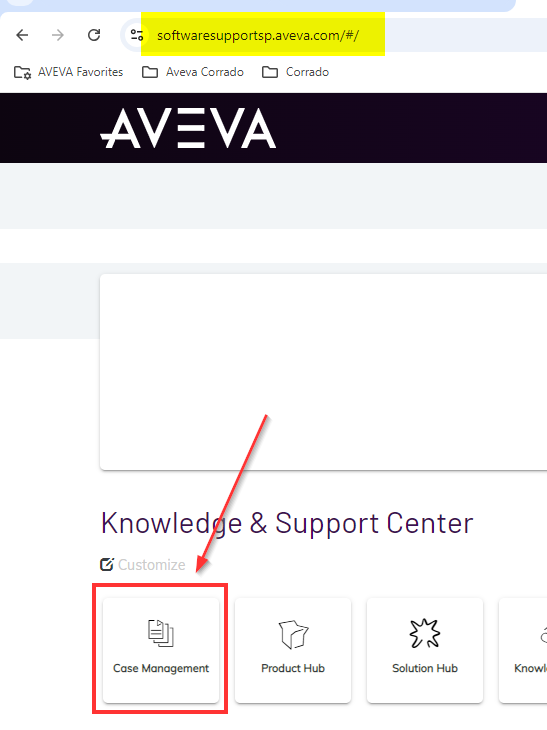

Dear Valentin, I would suggest you to open a Case  on Aveva Support Website and request for a product enhancement
