Iso Draft Welds with SKEY set to WF
  • Forums
  • Resources
  • Mentions
  • Sub-Groups
  • Tags
  • More
  • Cancel
  • New
  • Replies 9 replies
  • Subscribers 3 subscribers
  • Views 104 views
  • Users 0 members are here
Options
  • Share
  • More
  • Cancel
Related

Welds with SKEY set to WF

Aaron Tan
Aaron Tan over 11 years ago

  • Sign in to reply
  • Cancel
  • Aaron Tan
    Aaron Tan over 11 years ago
    Hi All,

    Is there a way to include the Allowance to the dimension with the allowance in brackets next to or above it?
    ie. DIM (+150)

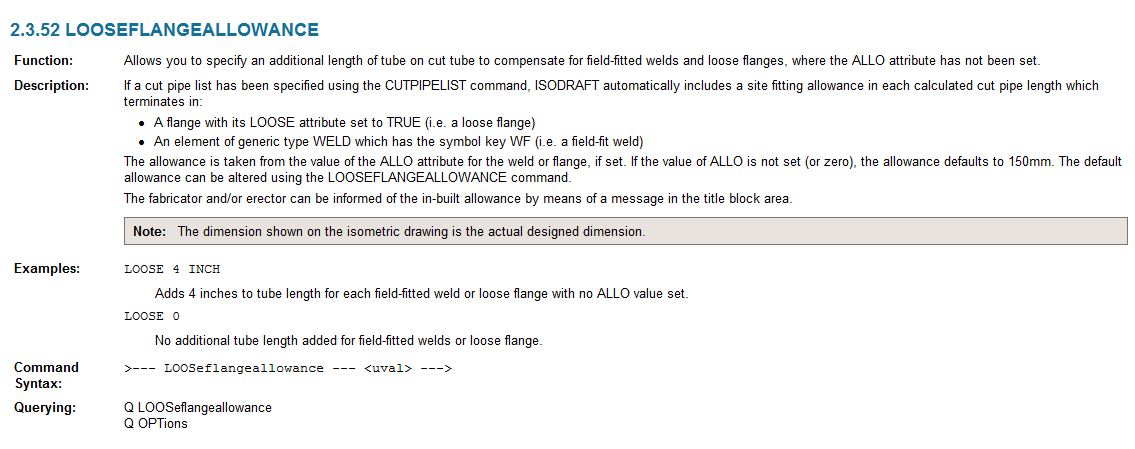

    in the isodraft manual it says:

    Note:   The dimension shown on the isometric drawing is the actual designed dimension.

    If its not possible then i have placed an outcom on WELDS with ALLO as the attribute....but our Field Fit welds in paragon have not been set to 150 but set to 0. so it comes up as:

    FFW
    ALLO: 0

    is there a way to put:

    OUTCOM ALLO ON WELD WITH SKEY EQ WF

    i dont think you can coz the WITH is for the type of format e.g. boxstyle diamond
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Aaron Tan
    Aaron Tan over 11 years ago
    also how can i default the ALLO to 150 in paragon?
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Aaron Tan
    Aaron Tan over 11 years ago
    [COLOR=#333333]could we please resolve this thread?[/COLOR]
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Venkata Rao Peta
    Venkata Rao Peta over 11 years ago
    PDMS Allows allowance 150mm on flanges only not welds.

    Three types of weld are possible in PDMS

    WS SITE(ERECTION) WELD
    WF FIELD-FITTED WELD
    WW SHOP(FABRICATION) WELD

    field fitted welds will allows allowance by default 150mm
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Aaron Tan
    Aaron Tan over 11 years ago
    so is there a way to automatically include the (+150) in the drawing area?
    or is there a way to by default (paragon???) set the allo on a WF weld to 150?
    because in the options file we have left the looseflangeallowance to 150 but then if i do a:
    outcom ALLO on WELD
    It comes out with a ALLO = 0 coz the actual ALLO hasnt been set in design
    really what i really want is the dimension to have a (+150) next to it
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Venkata Rao Peta
    Venkata Rao Peta over 11 years ago
    field fitted usually set allowance of 150mm default please check once by placing this field fitted weld..
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Venkata Rao Peta
    Venkata Rao Peta over 11 years ago
    loose flange allowance you will get on flange elements only.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Aaron Tan
    Aaron Tan over 11 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Bivas Hazra
    Bivas Hazra over 1 year ago in reply to Venkata Rao Peta

    Hi Venkat,

    Could you please tell me how to replace "ALLO:" with "+" while using Allo on weld as Outcom?

    Thanks
