Welds labeled with combination of weld number and prefix

Hello,

does someone know syntax for Iso-draft option file to label welds not only with their numbers but also with weld prefix?
Welds are FROMDB of course.
For example:
Weld in Design has Weldnumber 5 , and Weldprefix 'M'.
It should be labeled in Iso-draft in the circle (or box) with the value in the label 'M5'.
For weld tables it is not the problem, since I wrote external pml-s to fill weld table.

thanks in advance

N

Hi,Navigator,did you solved this problem? I also need the solution for this issue.

Hi,Navigator,did you solved this problem? I also need the solution for this issue.

can't you use outcom for this?

Dear Zion,outcom can't solve this problem.because for the IWELD and AWELD,it's no member exist below branch.using outcom ...on  WELD can't output IWELD AWELD attribute on ISOMetirc drawings.



Hi Bruce,

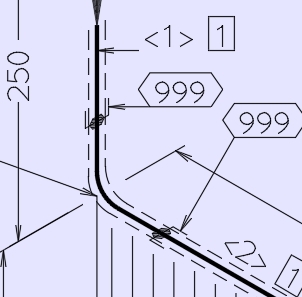

Could you please share the syntax used to get weld number tag as shown in above picture.

Thanks in advance.
