Isometric material list

bahman alavi
bahman alavi over 4 years ago

  • Sign in to reply
  • Cancel
  • bahman alavi
    bahman alavi over 4 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Corrado Galluzzi
    Corrado Galluzzi over 4 years ago

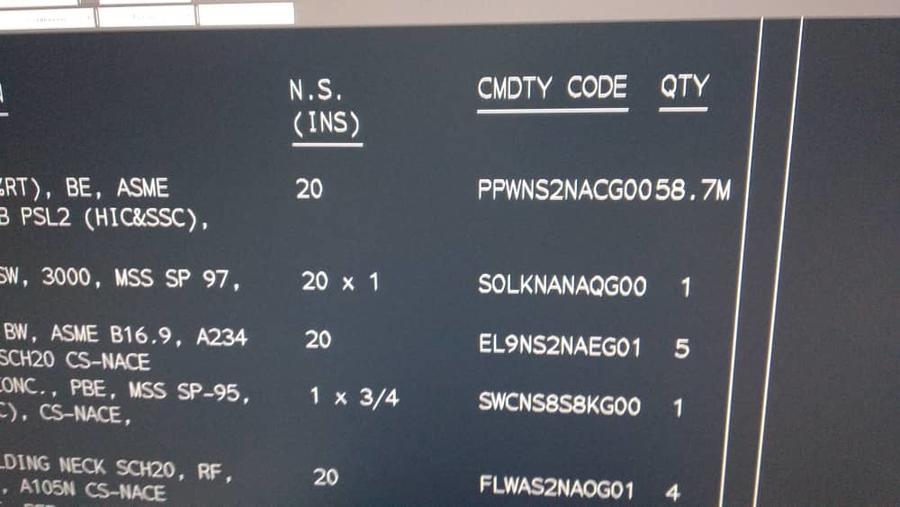

    I can not increase the Length of itemcode. is there anyway to do this without increasing the length of Itemcode.


    Could you please confirm what you can or cannot do and why?
    Anyway, you can customize report columns, order and width as you like
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • SAMOEL JOINS
    SAMOEL JOINS over 4 years ago
    MaterialList GRIDLINES ON
    MaterialList TableDefinition  COLUMN 1 PARTNUMBER WITH WIDTH 3
    COLUMN 2 DESCRIPTION WITH WIDTH 45
    COLUMN 3 BORE WITH WIDTH 11
    Column 4 OTHER Heading 'COME CODE'  UDA NAME FROMSPCOM with Width 25
    COLUMN 5 QUANTITY IN MILLIMETRES WITH WIDTH 10
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Corrado Galluzzi
    Corrado Galluzzi over 4 years ago
    Have you tried increasing the last column width?
    I do not think it will work as it is justified on the left if I am not wrong....
    So i believe you necessarily have to increase the itemcode width
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • bahman alavi
    bahman alavi over 4 years ago
    [QUOTE=corrado;118952]Have you tried increasing the last column width?
    I do not think it will work as it is justified on the left if I am not wrong....
    So i believe you necessarily have to increase the itemcode width

    Look, My UDA has more character which I don't want in this column. If I increase the width, even in user-defined mode, those characters will appear in isometrics.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Atish naresh parkar
    Atish naresh parkar over 4 years ago
    you can control the length of Itemcode by having more then 1 uda for item code, like shortcode and longcode and you can call shortcode on the iso.

    how is your Materlist setup in isooption file ?
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Mikael Bezerra Cotias dos Santos
    Mikael Bezerra Cotias dos Santos over 2 years ago in reply to SAMOEL JOINS

    Hi everyone, can we add a column like this:

    Column 4 OTHER Heading 'ISOMENTRIC NUMBER'  (:ISOMETRICNUMBER OF PIPE) with Width 50?

    Where the uda :ISOMETRICNUMBER is a pipe attribute
