Iso Draft Ancilliary dimension in component

Ancilliary dimension in component

Peter over 2 years ago

Hi Expert,

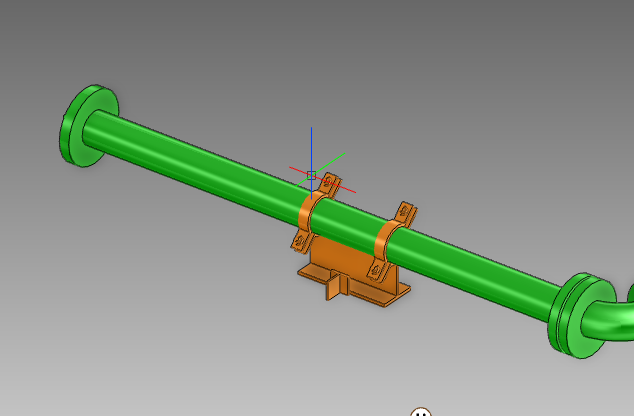

How can I show the dimension of ancilliary in the isometric. This is placed in lined component.

Josef Geltl over 2 years ago

YOu have to edit your optionfile,

for example

.....

Dimdistance String 11mm
Dimdistance Overall 17mm
Dimdistance Supports 6mm
Dimensions ON
Dimensions Composite OFF
Dimensions Overall ON
Dimensions Hangers ALONGSIDE strings
Dimlabels IN
Supports STRING

.....
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Peter over 2 years ago in reply to Josef Geltl

Thank you very Josef Geiti. Now it works
