Tie-In Point Name Split with Hexagon Enclosure

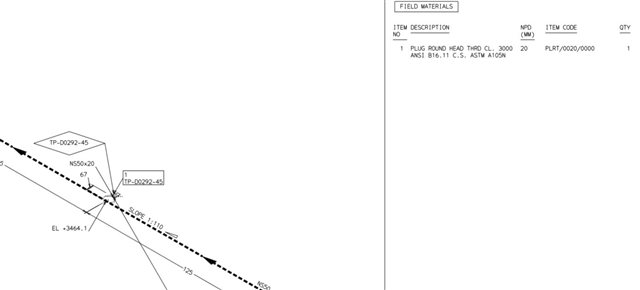

Pls any one can help with instructions on how to split TP-01 into two lines using a Hexagon-shaped enclosure in Aveva E3D Isometric? I managed to obtain a hexagon shape, but the line is not dividing and there are two labels visible on the Isometric, whereas I desire only one label that indicates the part number within the hexagon shape. Code used as follows.

Outcom NAME on PCOM with DIAMOND

Top Replies

Cary over 1 year ago +1

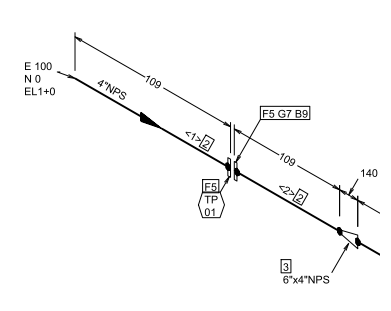

What we did in the previous is to use a UDA and input it as :UDANAME 'TP $01' then use Outcom :UDANAME on PCOM with Boxstyle ANGLED since you required HEXAGON shape. Results will look like this.

Cary over 1 year ago

What we did in the previous is to use a UDA and input it as :UDANAME 'TP $01'

then use

Outcom :UDANAME on PCOM with Boxstyle ANGLED since you required HEXAGON shape. Results will look like this.
Cancel
Vote Up +1 Vote Down

Sign in to reply

Cancel
Sameer Bhave over 1 year ago in reply to Cary

Thanks Cary, I appreciate your suggestion and it worked, Do you have any idea on how to center align the text on the second line?
