Isometric legend/default symbols correct representation

Hi all E3D/PDMS Gurus,

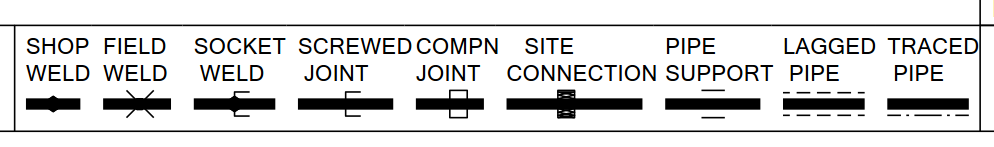

I'm having a client that is complaining about the isometric symbols that doesn't match the legend/default symbols for SW/SC end types:

This is something that we never paid much attention, because at the end we use the fittings that are on the BOM. But regarding the representation on the isometric the client is correct, they are wrong.

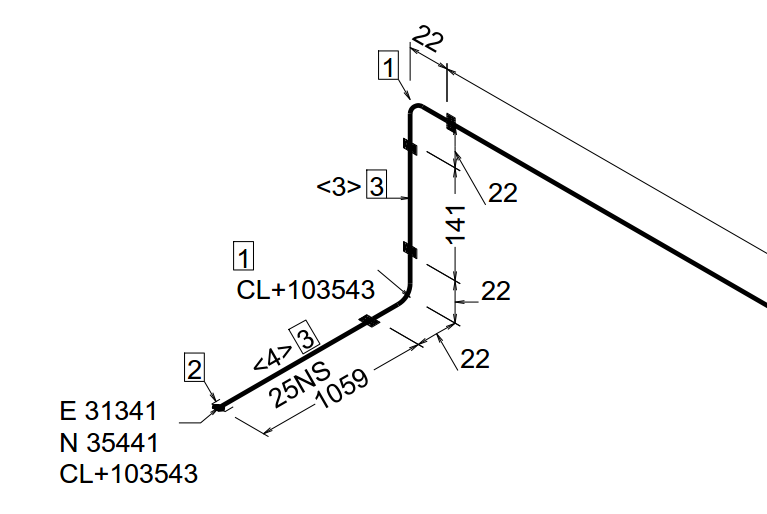

At moment this is the representation for the Socket Weld fittings a fill rectangle. It is using the "SITE CONNECTION" representation:

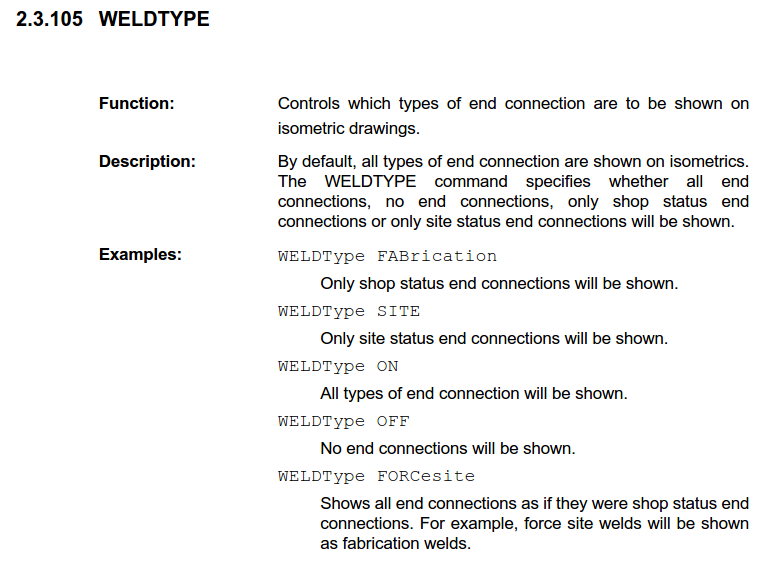

By reading the "ISODRAFT Reference Manual", "my understanding", what controls the presentation is the Weldtype Option:

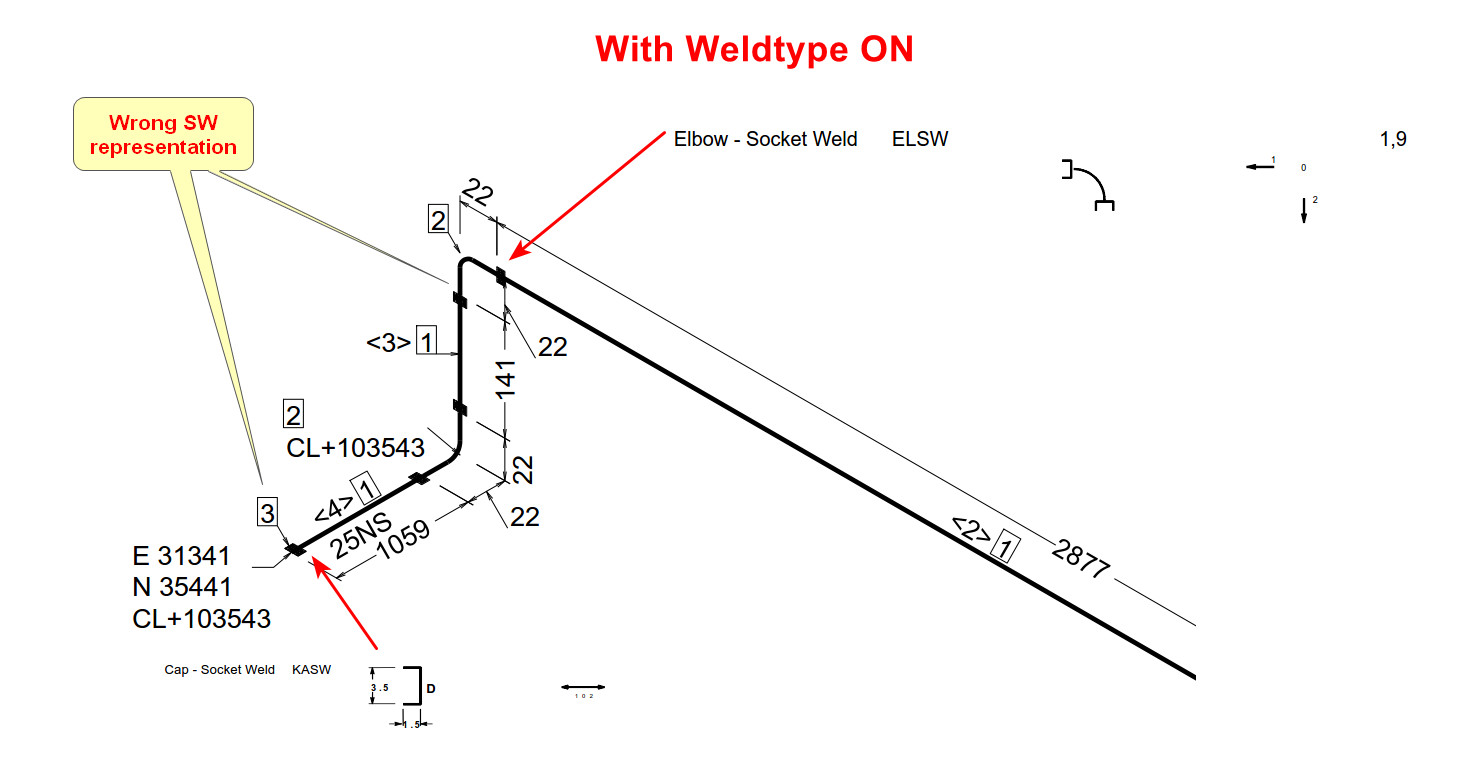

This is what I get with Weldtype ON:

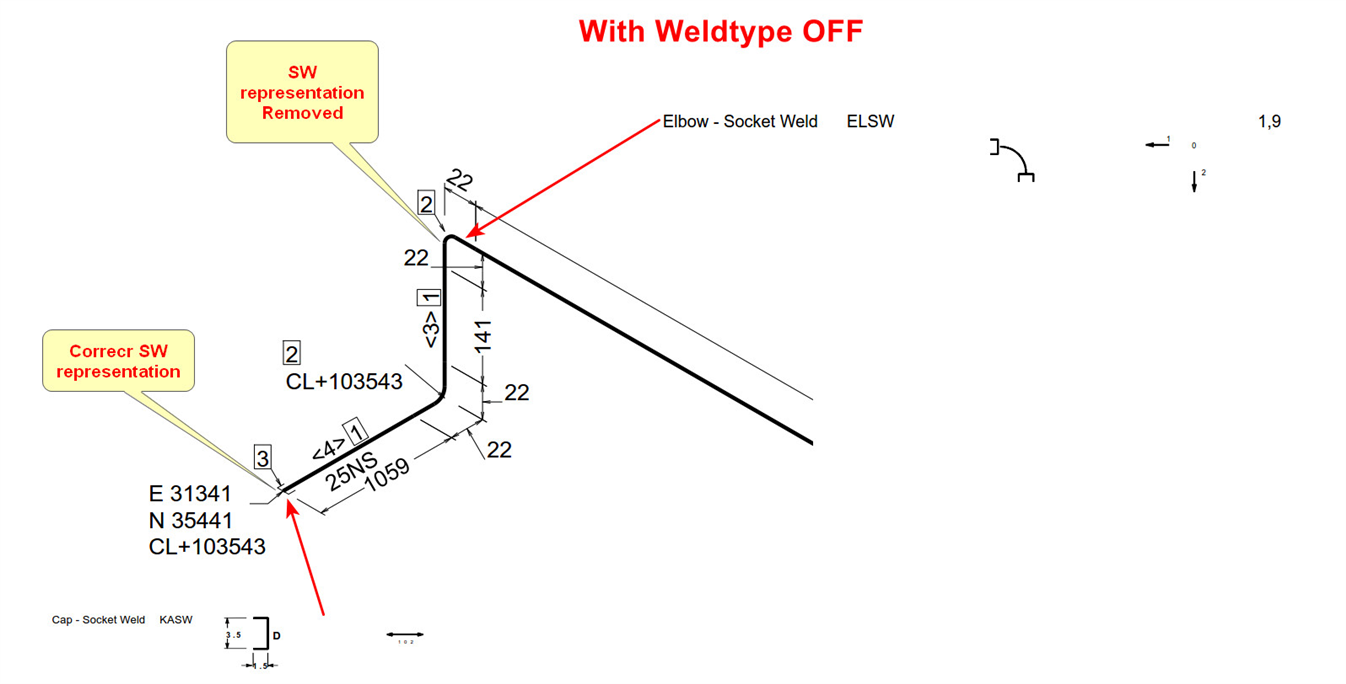

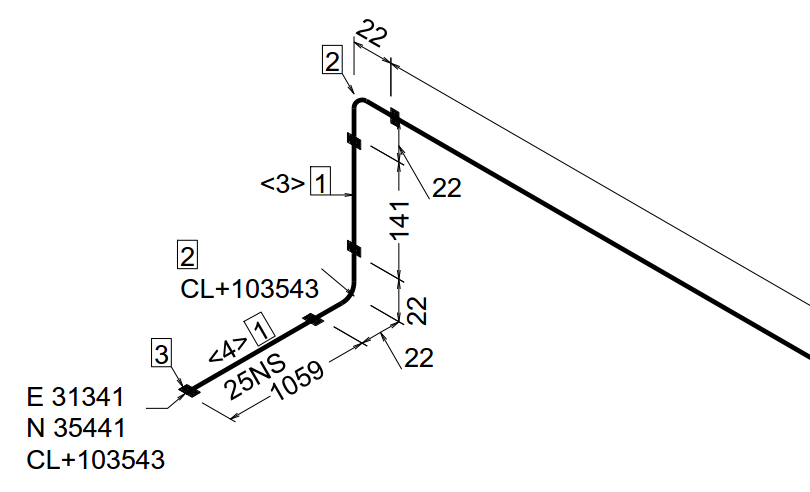

This is what I get with Weldtype OFF:

Any idea how can I have the correct legend/default symbols on the Isometrics?

Thanks for the help,

Best regards,

ARamos

Top Replies

Abilio Ramos 11 months ago +1

Just to close this topic and maybe help someone. Want we have found, and works best for us. Is to set the FLAG on the isodraft options file WELDTYPE to FORCESITE. This will "virtual" set all connections…

Corrado Galluzzi 11 months ago

Hi Abilio,

for small Nominal Bores (i.e. <DN50) SW connection are represented as "site connection" as they are usually not pre-fabricated
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Abilio Ramos 11 months ago in reply to Corrado Galluzzi

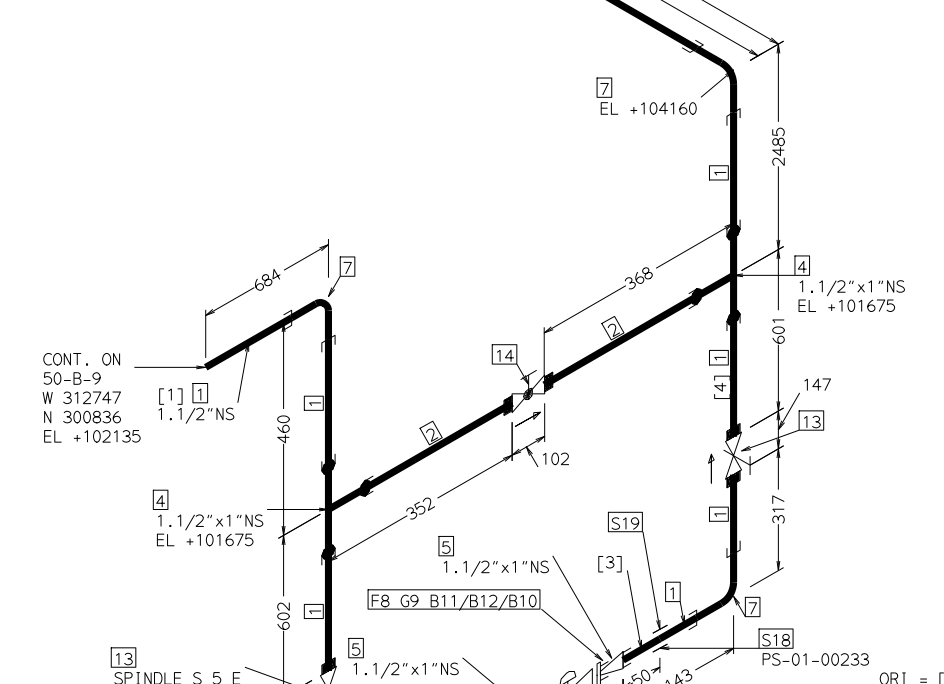

Why on the sample project they are ok "almost":
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Corrado Galluzzi 11 months ago in reply to Abilio Ramos

I apologize, I forgot to mention about SHOP attribute, too.

Check SHOP attribute of your components.

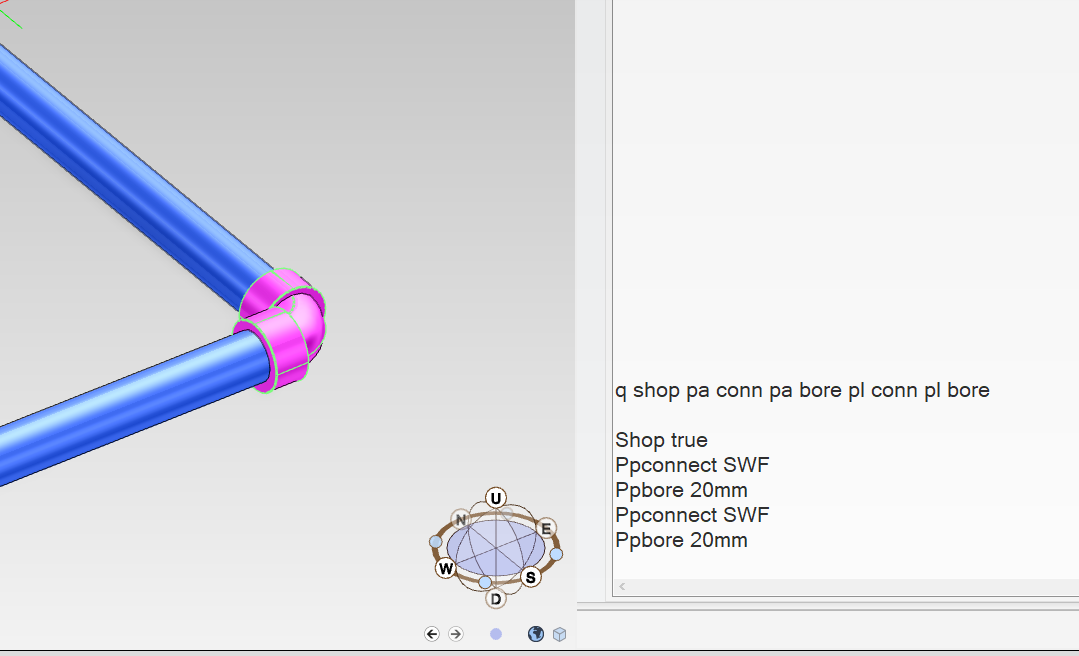

SHOP TRUE you should get what you are expecting.

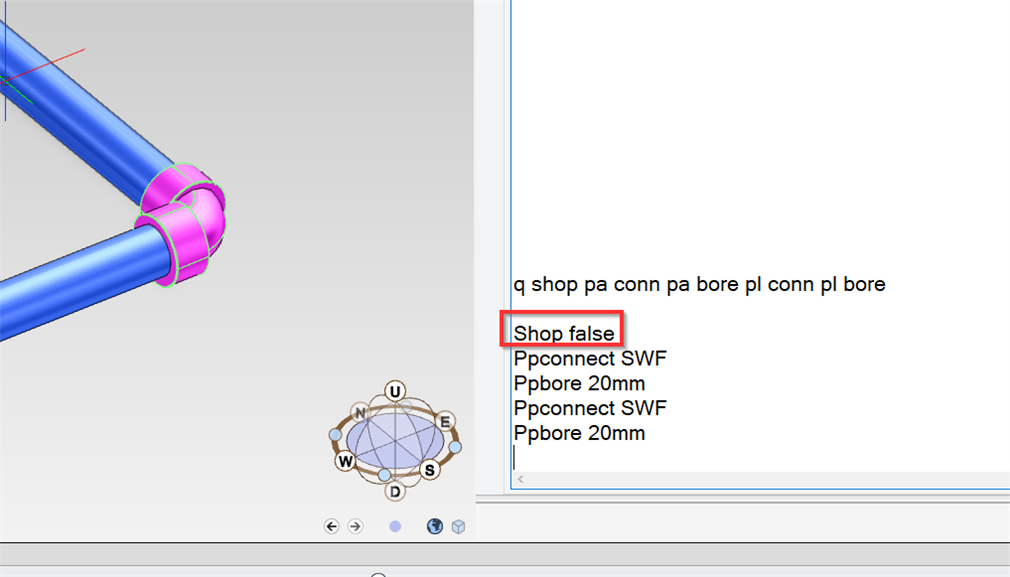

SHOP FALS you should get "Site Connection" representation
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Abilio Ramos 11 months ago in reply to Corrado Galluzzi

Hi have set PIPE SHOP TRUE; BRANCH SHOP TRUE; ELBOW SHOP TRUE; CAP SHOP TRUE. Still only works for the CAP:
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Corrado Galluzzi 11 months ago in reply to Abilio Ramos

Abilio, I have just tried on my laptop. E3D 3.1.8

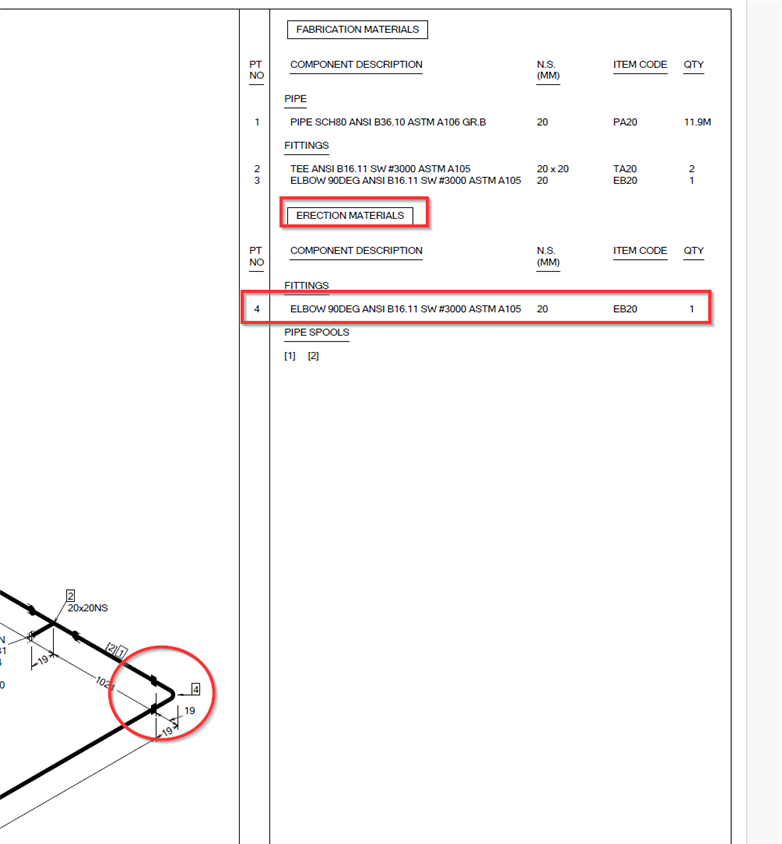

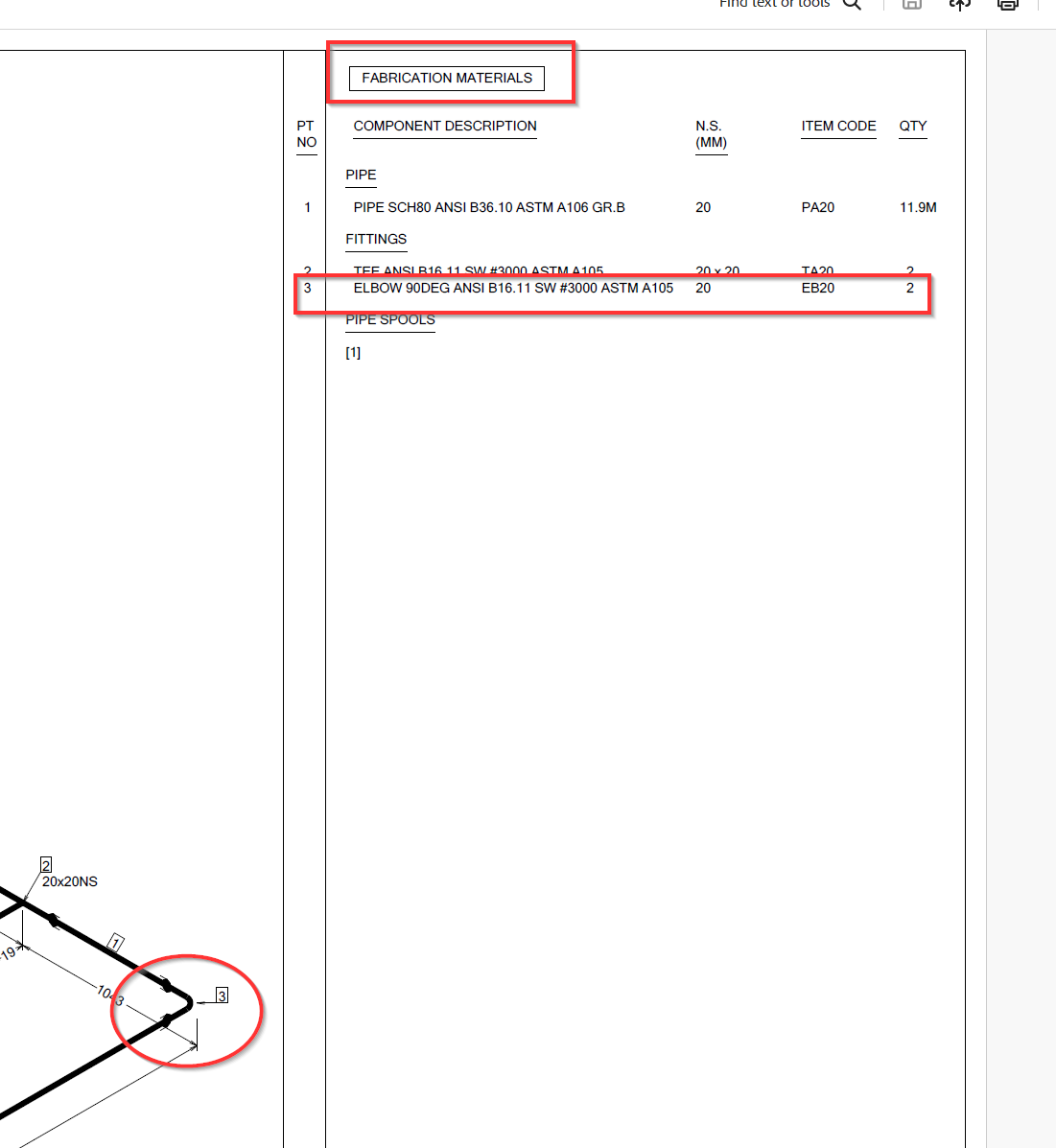

Please see below my outcomes

If you want to further discuss about that do not hesitate to open a Support Case with us and we will contact you back

Thank you

Corrado
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Abilio Ramos 11 months ago in reply to Corrado Galluzzi

Thanks Corrado,

I have just have send to Administration to track/solve. They will open a Support Case if it's needed.

Thanks,

ARamos
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Abilio Ramos 11 months ago

Just to close this topic and maybe help someone.

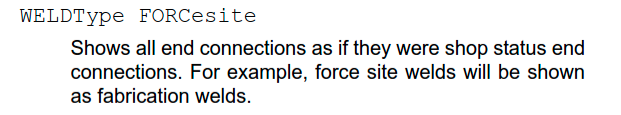

Want we have found, and works best for us. Is to set the FLAG on the isodraft options file WELDTYPE to FORCESITE.

This will "virtual" set all connections to shop that will use the default symbols representation, but divides correctly the material from Erection/Prefabrication on the BOM.
Cancel
Vote Up +1 Vote Down

Sign in to reply

Cancel
Corrado Galluzzi 11 months ago in reply to Abilio Ramos

Great idea Abilio!
