Hi,

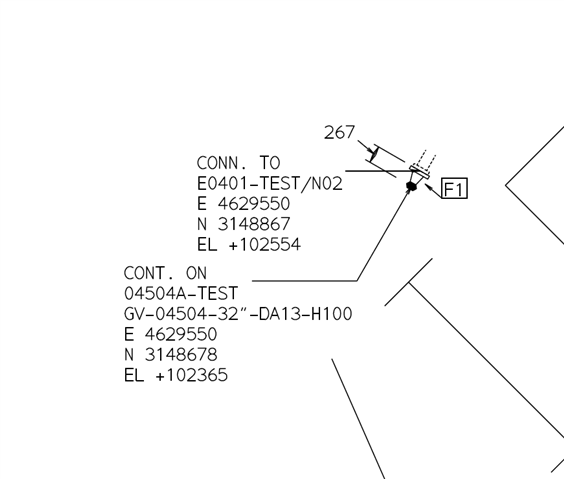

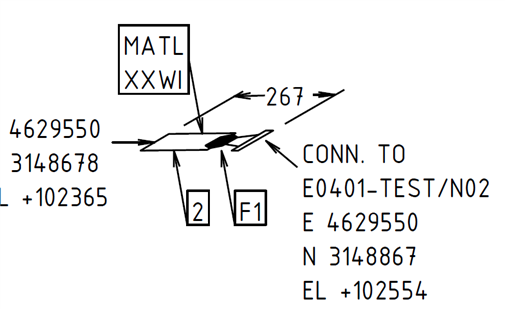

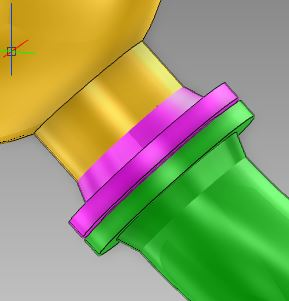

I have one flange directly connected to BWD nozzle. but while extracting isometric flange get flip.
checked attache snap. I checked everything catref & COCO table everything seems ok.
what could be the reason.
Hi,
I have one flange directly connected to BWD nozzle. but while extracting isometric flange get flip.
checked attache snap. I checked everything catref & COCO table everything seems ok.
what could be the reason.
Check the pipe is correct with Data Consistency tool...
I checked there is no Data Inconsistencies.
Hello, we also encountered this in my previous work.
I think this occurs when there is only one element contained in a single isometric page.
I don't exactly remember what is our workaround here before. I think we had to add an attachment (with ATTY CCCC) or zero-length PCOM at the flange face.
Thanks for the response but with ATTA & with PCOM still facing same issue

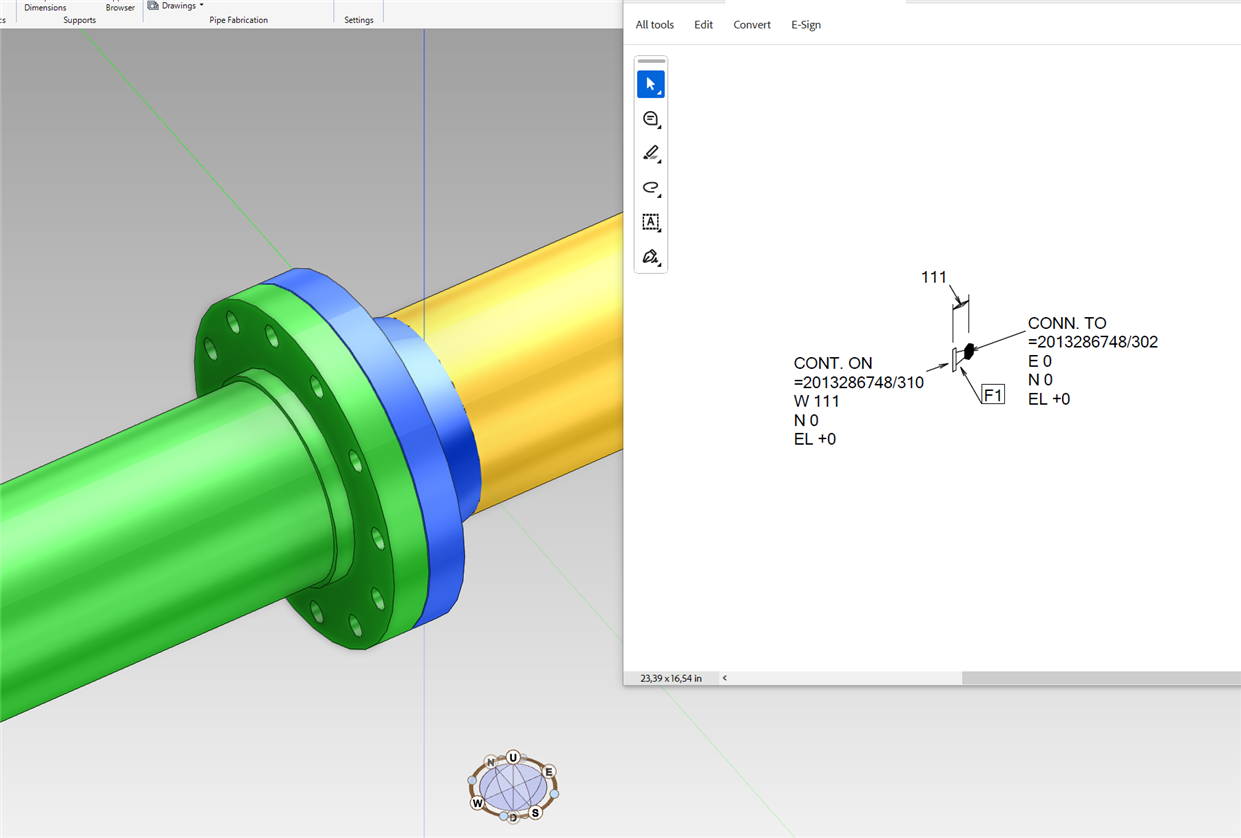

I tested it in E3D 3.1.8.1 and it works as expected:
What is your version?
Thanks Corrado, but we are using E3D 2.1.0.30
