I need weld Table information on ISO drawing (AVEVA E3D Design Isodraft Mk2.1.0.35[Z21035-14]), As far as I know there are following options of weld table generation,
1. From DB (Using spooler module user defined position & columns)
2. Generated (using Iso draft, Fix position & columns)
3. Atext 412 'WELD| | WELD |WELD|VISUAL | WELD | NDT |NDT|NDT|'
Atext 413 'NO | | W.P.S. |ID |ACCEPT|DATE | NO. |ACC|REJ|'

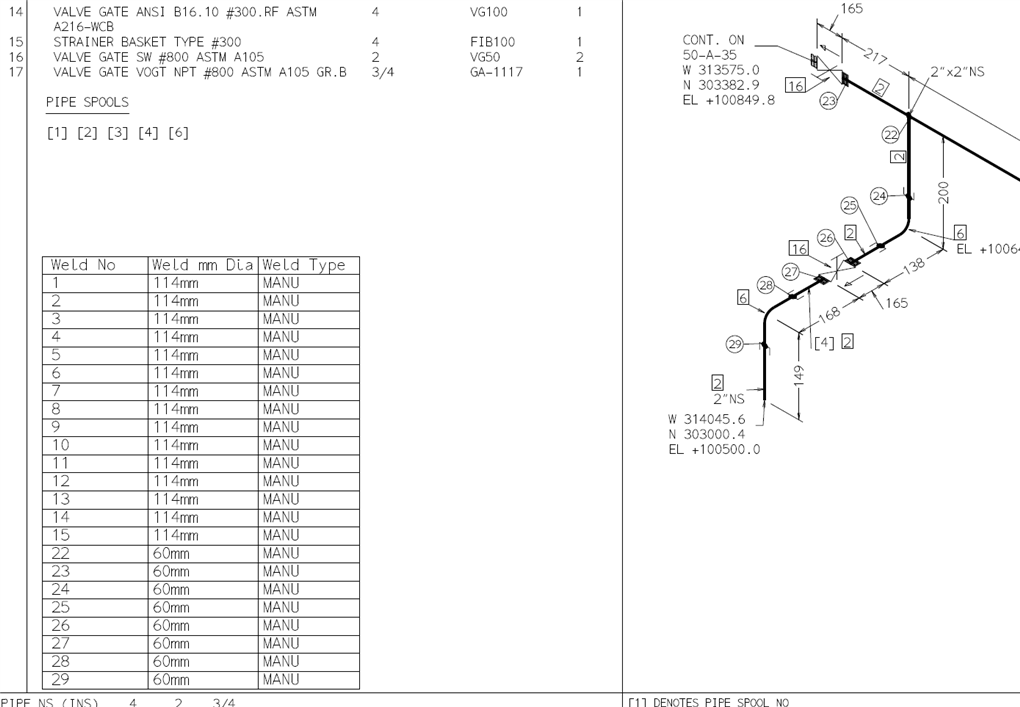

I need following weld table information on isometrics with user defined position & column,
Weld No Weld Inch Dia Weld Type
1
2
3

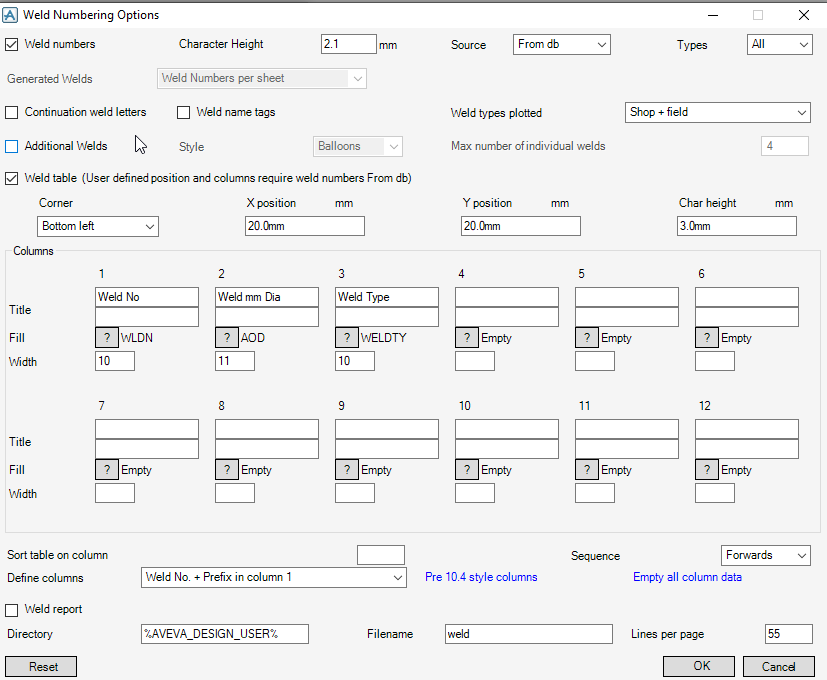

I have followed option 1 (from db) mentioned above, did weld numbering in spooler module (Refer sketch) & modified option file (weld numbering from DB option), but still it is not showing weld table in isometric dwg

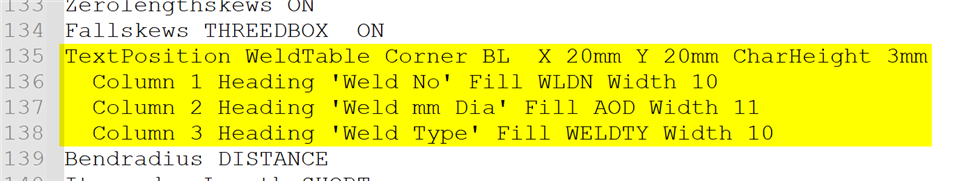

Following is my updated option file for weld numbers (refer sketch)
Weldnumbers Charheight 2.1mm ALL FROMDB AWELDS BALLOONS 4
Weldid OFF
Weldtype ON
TextPosition WeldTable Corner TL X 25mm Y 30mm CharHeight 3mm
Column 1 Heading 'NUMBER' Fill WLDN Width 10
Column 2 Heading 'BORE' Fill WBORE Width 10
Column 3 Heading 'TYPE' Fill TYPE Width 10
It is showing following error,
(33:228) Warning: Weldnumbers are Fromdb, but WMAX of PIPE /XXX123 is 0
(33:229) please carry out weld-numbering check in DESIGN Spooling Application
Can anybody please help to generate user defined weld table on isometrics with user defined position & columns.
Please do the needful.
