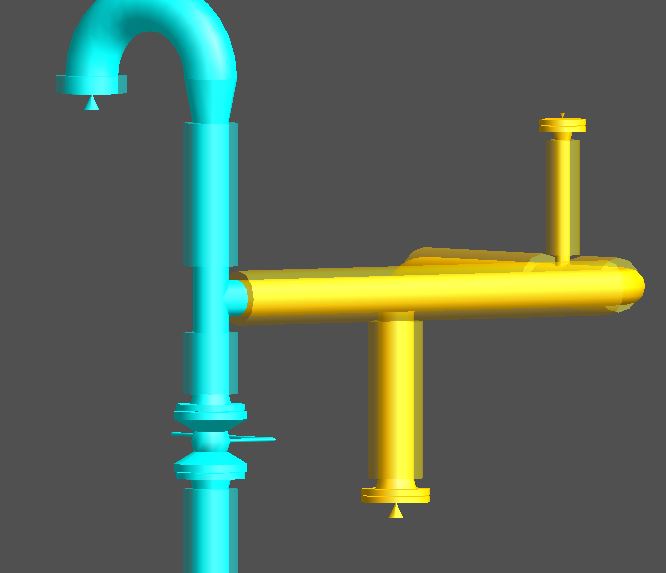

Insultation not Showed on components



Please , anyone could help me?

Thanks

Please check if your Piping catalogue components have IPARAM included in its Geometry.

Insulation parameters (IPARAM) allow the main Component to take dimensions from the Insulation Component. When the main Component uses IPARAM 3, for example, it picks up the value of the PARAM 3 of the corresponding Insulation Component.

Yes, i?ve checked the Iparam Value and it is everything ok.

And in the Catalog Window the insulation it is represented.

Even I do face this issue

do the new Insulation spec already applied to the branch members (ELBO, TEE. etc.)
