Append COCO connection table

Konstantinos Marios Tsitsilonis
Konstantinos Marios Tsitsilonis over 6 years ago

  • Sign in to reply
  • Cancel
  • Konstantinos Marios Tsitsilonis
    Konstantinos Marios Tsitsilonis over 6 years ago
    Hi all,

    What is the way from which I can append in my project's available connection table such that it includes the connections defined by the specs that I am using? In specific, I am getting the error 'Head Connection type ''FAN'' does not exist in the available connection table (COCO)'. FAN is the connection type for a flange where F=Flange, A=Flat Face and N=PN10 nominal pressure rating.

    Thanks for your response.

    KR,

    KMT.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Venkata Rao Peta
    Venkata Rao Peta over 6 years ago
    check the possibilities
    FLAN - GASK COCO of flan and Gask COCO should come as combination
    use create cocotable and add combinations through this table only
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Corrado Galluzzi
    Corrado Galluzzi over 6 years ago
    You should create a new COCO element.
    FAN - GAN
    And for each code its COCDES element
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Anna Bauman
    Anna Bauman over 4 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Venkata Rao Peta
    Venkata Rao Peta over 4 years ago
    GASKET - GASKET FLATFACE PN10 -GAN

    Add in COCO Table
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Anna Bauman
    Anna Bauman over 4 years ago

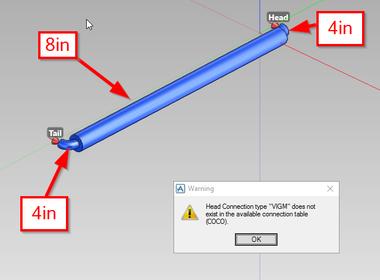

    To follow up on this. I did figure out what my issue was with pipe coming in twice as big as other components - I had the wrong Catrefs in my Spec - they were pointing to larger bore size. Still not sure how that happened. The other issue is still unresolved - adding FAN-GAN connection did not work for me as I am dealing with VIGM and VIGF grooved connections here. Thanks for the reply Deva.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Corrado Galluzzi
    Corrado Galluzzi over 4 years ago
    Anna, you probably got the Victaulic catalogue from their web site, didn't you?
    The catalogue should come together with a set of COCO.
    I suggest you to double check your Victaulic data.
    Moreover it could be that you need clamps to connect fittings together.
    They are probably stored as COUP in the Victaulic catalogue/spec
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Anna Bauman
    Anna Bauman over 4 years ago
    That is exactly right Corrado! I have now fixed the issue. Resolution is:
    1. Moving the Victaulic COCO tables higher up the Catalog Explorer Hierarchy - ABOVE the Master COCO tables.
    2. Create VIGM-OPEN COCO
    I am not sure if just one or both of these actions fixed the issue but I that's what I did in my Catalog session, saved work, got back into Design and saw no more error messages.
    Thanks everyone for your replies.
    If you get anything out of this Please let it be this: Make sure to follow directions when loading any Vendor catalog and place COCO tables above Master COCO tables (if that is your Default).
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Corrado Galluzzi
    Corrado Galluzzi over 4 years ago
    I think the second action did the job.
    Hierarchical order is not important as the system scans the whole MDB when looking for COCO elements
    Thanks for the feedback Anna
    I am closing this thread
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
