Pipe volume

mEhul_patel
mEhul_patel over 6 years ago

  • Sign in to reply
  • Cancel
  • mEhul_patel
    mEhul_patel over 6 years ago
    Hello exparts,

    How to find pipe volume, in special requirements of client, he knows each line volume ( capacity of liquid).

    Is any macros available or any Pml, please share.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Amit

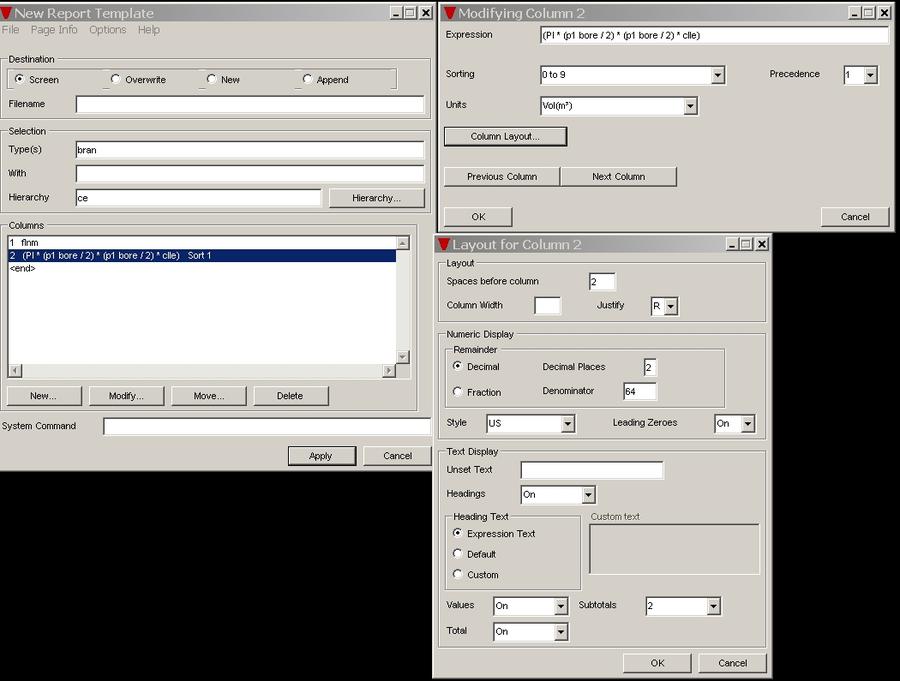

    Amit over 6 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • mEhul_patel
    mEhul_patel over 6 years ago


    Ok sir I will check and thanks for guidance...
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Sharan Patil
    Sharan Patil over 4 years ago
    Dear All,

    Any solution/Suggestions for Pipe internal volume.


    Regards,
    S S Patil
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Sergey
    Sergey over 4 years ago
    Try using the NVOL attribute[URL="https://help.aveva.com/AVEVA_Everything3D/2.1/wwhelp/wwhimpl/js/html/wwhelp.htm#href=DCFUG/DCFUG13.14.12.html"]
    help.aveva.com/.../wwhelp.htm

    !pipe = PIPE


    !pNvol = 0
    do !bran values !pipe.members
       !bNvol = 0
       do !elem values !!collectallfor(|BRAN MEM|, |TYPE ne 'ATTA' and TYPE ne 'WELD'|, !bran)
           !bNvol = !bNvol + !elem.nvol
               handle any
                   skip
               endhandle
       enddo
       !pNvol = !pNvol + !bNvol
    enddo


    q var !pNvol.convertunits(|m3|).string(|D3|)
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Fariza In
    Fariza In 4 months ago in reply to Amit

    Thanks for your suggestion.

    i combine your method, with volume of component using NVOL.
