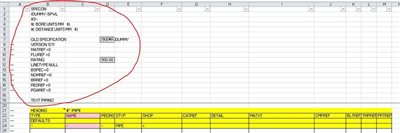

Specon excel file codes description


  • SPECON - MODULE
    /DUMMY-SPWL - Spec World Name
    $S- is Synonyms turn off
    $( BORE UNITS MM $) - E3D or PDMS will not read this code while executing
    $( DISTANCE UNITS MM $) - E3D or PDMS will not read this code while executing

    OLD SPECIFICATION Name of OLD Specification
    Version number
    MATREF - Material Reference:
    Points to a SOLID element in the Properties DB.
    This holds information about the properties of the materials of construction of the piping components


    SOLI Element


    FLUREF - Fluid Reference:
    Points to a FLUID element in the Properties DB.
    This holds information about the properties of the liquids or gases for use with which the piping components are suitable (refer to Properties Constructor).
    Overall Specification Settings


    RATING - Pipeline Pressure Rating:
    May be set to the maximum pressure at which the components covered by the Specification are intended for service.
    ISODRAFT can then use this setting to determine those points in a composite pipeline at which the pressure rating changes.
    The default setting is zero.


    LINETYPE - Fixed Length Piping Line Type:
    May be set to either of the identifiers
    FP - Fixed Pipe
    FX - Fixed Length
    ISODRAFT uses this setting to decide whether or not to append the length of a component to its item code in a material list.
    The length is appended if linetype is set to FP, but is assumed to be incorporated into the standard code if linetype is set to FX.
    The default setting is NUL (i.e. variable length piping between components is assumed).


    bspec - bolt spec name


    nomref - Nominal bore table reference


    brref - Branch table reference


    redref - Reducer table reference


    pdaref - Pipe data table reference
  • ===================== Thank you so much Sir =========================

    [QUOTE=deva;111820]SPECON - MODULE
    /DUMMY-SPWL - Spec World Name
    $S- is Synonyms turn off
    $( BORE UNITS MM $) - E3D or PDMS will not read this code while executing
    $( DISTANCE UNITS MM $) - E3D or PDMS will not read this code while executing

    OLD SPECIFICATION Name of OLD Specification
    Version number
    MATREF - Material Reference:
    Points to a SOLID element in the Properties DB.
    This holds information about the properties of the materials of construction of the piping components


    SOLI Element


    FLUREF - Fluid Reference:
    Points to a FLUID element in the Properties DB.
    This holds information about the properties of the liquids or gases for use with which the piping components are suitable (refer to Properties Constructor).
    Overall Specification Settings


    RATING - Pipeline Pressure Rating:
    May be set to the maximum pressure at which the components covered by the Specification are intended for service.
    ISODRAFT can then use this setting to determine those points in a composite pipeline at which the pressure rating changes.
    The default setting is zero.


    LINETYPE - Fixed Length Piping Line Type:
    May be set to either of the identifiers
    FP - Fixed Pipe
    FX - Fixed Length
    ISODRAFT uses this setting to decide whether or not to append the length of a component to its item code in a material list.
    The length is appended if linetype is set to FP, but is assumed to be incorporated into the standard code if linetype is set to FX.
    The default setting is NUL (i.e. variable length piping between components is assumed).


    bspec - bolt spec name


    nomref - Nominal bore table reference


    brref - Branch table reference


    redref - Reducer table reference


    pdaref - Pipe data table reference
