45degree Variable Angle Elbow

Private

  • Dear prossly,

    can u please check Northing and Easting of Elbow and Terminal point. .

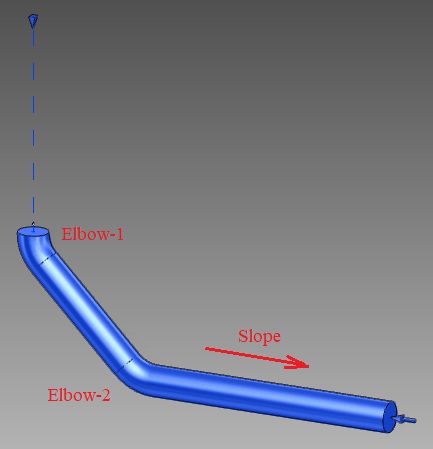

    it seems there is mismatch from attached image.

    Since i understand that slope is  applicable for Horizontal leg. Vertical leg and Rolled leg (45 Deg) will not have any slope and both legs are shown correctly.
  • Hi Elbows are available in market with 45 and 90 only.

    In ACP Also iam unable to find any component with DDANGLE FOR Elbow.
  • [QUOTE=deva;113053]Hi Elbows are available in market with 45 and 90 only.

    In ACP Also iam unable to find any component with DDANGLE FOR Elbow.

    Hi deva,

    That case widely used for UG gravity pipes where the slope applied in horizontal spools and surely there is No slope in vertical portions. in addition, the Elbow restricted to 45degree angle so you have doted lines in the end where the TDIR is D. please, advise if you have a workaround.
  • Hi!
    One way to complete your vertikal line is ,
    to use Zero radius BEND .
    place one above the 45?elbo and one at the start at your "doted line"
    orient comp leave
    and you will see tube

    second way
    Change the angle of th 45deg elbo (where slope is ending)  [45deg minus slope degrees]
  •

    Fullscreen 250931ELBOW_45_PARAMETRIC.txt Download
    $S-  -- Synonym translation OFF
-- ----------------------------------------------------------------
-- Data Listing    Date : 20 May 2016 11:56

ONERROR GOLABEL /ERROR3

INPUT BEGIN
NEW SECTION /NEW_NE_ELBOW_45

NEW DTSET /ELBOW_45_BW/DTSE

NEW DATA /ELBOW_45_BW/DATA-W
DKEY WEIG
PPRO ( ATTRIB DESP[99 ] )
DPRO ( 0 )
PURP DESP
NUMB 99
DTIT 'WEIGHT'

END
END
NEW GMSET /ELBOW_45_BW/GMSE

NEW SCTORUS
TUFL true
PAAX P11
PBAX P12
PDIA ( ATTRIB PARA[21 ] + ATTRIB IPAR[1 ] )

END
NEW LCYLINDER
TUFL true
PTDI ( ATTRIB PARA[6 ] - ATTRIB PARA[19 ] )
PBDI 0
PDIA ( ATTRIB PARA[2 ] + ATTRIB IPAR[1 ] )
PAXI P11

END
NEW LCYLINDER
TUFL true
PTDI ( ATTRIB PARA[12 ] - ATTRIB PARA[20 ] )
PBDI 0
PDIA ( ATTRIB PARA[8 ] + ATTRIB IPAR[1 ] )
PAXI P12

END
NEW SCYLINDER
TUFL true
PDIS ( IFTRUE ( ATTRIB PARA[4 ] GT 0 , - ATTRIB PARA[4 ] / 2 , 0 ) )
PDIA ( ATTRIB PARA[5 ] + ATTRIB IPAR[1 ] )
PHEI ( IFTRUE ( ATTRIB PARA[4 ] GT 0 , ( ATTRIB PARA[4 ] + ABS ( ATTRIB PARA[4 ] ) ) / 2 + ATTRIB PARA[4 ] / 2 , ( $
ATTRIB PARA[4 ] + ABS ( ATTRIB PARA[4 ] ) ) / 2 ) )
PAXI P1

END
NEW SCYLINDER
TUFL true
PDIS - PARAM 31
PDIA ( ATTRIB PARA[5 ] + ATTRIB IPAR[1 ] )
PHEI ( - ( ATTRIB PARA[4 ] + ABS ( ATTRIB PARA[4 ] ) ) / 2 + ATTRIB PARA[4 ] + ATTRIB PARA[31 ] )
PAXI P1

END
NEW SCYLINDER
OBST 0
CLFL true
PDIS 0
PDIA ( 15 + 0.2 * ATTRIB PARA[1 ] )
PHEI ( ( ATTRIB PARA[4 ] + ABS ( ATTRIB PARA[4 ] ) ) / 2 )
PAXI P1

END
NEW SCYLINDER
TUFL true
PDIS ( IFTRUE ( ATTRIB PARA[10 ] GT 0 , - ATTRIB PARA[10 ] / 2 , 0 ) )
PDIA ( ATTRIB PARA[11 ] + ATTRIB IPAR[1 ] )
PHEI ( IFTRUE ( ATTRIB PARA[10 ] GT 0 , ( ATTRIB PARA[10 ] + ABS ( ATTRIB PARA[10 ] ) ) / 2 + ATTRIB PARA[10 ] / 2 , ( $
ATTRIB PARA[10 ] + ABS ( ATTRIB PARA[10 ] ) ) / 2 ) )
PAXI P2

END
NEW SCYLINDER
TUFL true
PDIS - PARAM 32
PDIA ( ATTRIB PARA[11 ] + ATTRIB IPAR[1 ] )
PHEI ( - ( ATTRIB PARA[10 ] + ABS ( ATTRIB PARA[10 ] ) ) / 2 + ATTRIB PARA[10 ] + ATTRIB PARA[32 ] )
PAXI P2

END
NEW SCYLINDER
OBST 0
CLFL true
PDIS 0
PDIA ( 15 + 0.2 * ATTRIB PARA[7 ] )
PHEI ( ( ATTRIB PARA[10 ] + ABS ( ATTRIB PARA[10 ] ) ) / 2 )
PAXI P2

END
NEW LCYLINDER
CLFL true
TUFL true
PTDI - PARAM 31
PBDI 0
PDIA ( 0.75 * ATTRIB PARA[5 ] )
PAXI P1

END
NEW LCYLINDER
CLFL true
TUFL true
PTDI - PARAM 32
PBDI 0
PDIA ( 0.75 * ATTRIB PARA[11 ] )
PAXI P2

END
NEW LINE
OBST 0
CLFL true
SETP P1 P11

END
NEW LINE
OBST 0
CLFL true
SETP P2 P12

END
NEW LINE
OBST 0
CLFL true
SETP P11 T0 P12

END
NEW SSPHERE
OBST 0
CLFL true
PDIS 0
PDIA ( 15 + 0.2 * ATTRIB PARA[1 ] )
PAXI P1

END
NEW SSPHERE
OBST 0
CLFL true
PDIS 0
PDIA ( 15 + 0.2 * ATTRIB PARA[7 ] )
PAXI P2

END
END
NEW PTSET /ELBOW_45_BW/PTSE

NEW PTCAR
NUMB 1
PCON PARAM 3
PBOR PARAM 1
PX ( -1 * ATTRIB PARA[6 ] * TAN ( MIN ( 45 , ATTRIB ANGL ) ) )
PY 0
PZ 0
PTCDI AXIS -X
PZAXI Z

END
NEW PTCAR
NUMB 11
PCON PARAM 3
PBOR PARAM 1
PX ( -1 * ATTRIB PARA[6 ] * TAN ( MIN ( 45 , ATTRIB ANGL ) ) )
PY 0
PZ 0
PTCDI AXIS -X
PZAXI Z

END
NEW PTCAR
NUMB 2
PCON PARAM 9
PBOR PARAM 7
PX ( ATTRIB PARA[12 ] * TAN ( MIN ( 45 , ATTRIB ANGL ) ) * COS ( MIN ( 45 , ATTRIB ANGL ) ) )
PY ( ATTRIB PARA[12 ] * TAN ( MIN ( 45 , ATTRIB ANGL ) ) * SIN ( MIN ( 45 , ATTRIB ANGL ) ) )
PZ 0
PTCDI X ( MIN ( 45 , ATTRIB ANGL ) ) Y
PZAXI Z

END
NEW PTCAR
NUMB 12
PCON PARAM 9
PBOR PARAM 7
PX ( ATTRIB PARA[12 ] * TAN ( MIN ( 45 , ATTRIB ANGL ) ) * COS ( MIN ( 45 , ATTRIB ANGL ) ) )
PY ( ATTRIB PARA[12 ] * TAN ( MIN ( 45 , ATTRIB ANGL ) ) * SIN ( MIN ( 45 , ATTRIB ANGL ) ) )
PZ 0
PTCDI X ( MIN ( 45 , ATTRIB ANGL ) ) Y
PZAXI Z

END
END
NEW TEXT /NEW_ELBOW_45

END
NEW CATEGORY /NAEC200
GTYP ELBO

NEW TEXT /NAEC200-PA01
STEX 'DN_1'

END
NEW TEXT /NAEC200-PA02
STEX 'DIA_1'

END
NEW TEXT /NAEC200-PA03
STEX 'CON_1'

END
NEW TEXT /NAEC200-PA04
STEX 'EP_1'

END
NEW TEXT /NAEC200-PA05
STEX 'DIA_CON1'

END
NEW TEXT /NAEC200-PA06
STEX 'DIST_1'

END
NEW TEXT /NAEC200-PA07
STEX 'DN_2'

END
NEW TEXT /NAEC200-PA08
STEX 'DIA_2'

END
NEW TEXT /NAEC200-PA09
STEX 'CON_2'

END
NEW TEXT /NAEC200-PA10
STEX 'EP_2'

END
NEW TEXT /NAEC200-PA11
STEX 'DIA_CON2'

END
NEW TEXT /NAEC200-PA12
STEX 'DIST_2'

END
NEW TEXT /NAEC200-PA13
STEX 'DN_3'

END
NEW TEXT /NAEC200-PA14
STEX 'DIA_3'

END
NEW TEXT /NAEC200-PA15
STEX 'CON_3'

END
NEW TEXT /NAEC200-PA16
STEX 'EP_3'

END
NEW TEXT /NAEC200-PA17
STEX 'DIA_CON3'

END
NEW TEXT /NAEC200-PA18
STEX 'DIST_3'

END
NEW TEXT /NAEC200-PA19
STEX 'Spare'

END
NEW TEXT /NAEC200-PA20
STEX 'Spare'

END
NEW TEXT /NAEC200-PA21
STEX 'DIA_CORPS'

END
NEW TEXT /NAEC200-PA22
STEX 'LARGEUR'

END
NEW TEXT /NAEC200-PA23
STEX 'P_BAS'

END
NEW TEXT /NAEC200-PA24
STEX 'P_HAUT'

END
NEW TEXT /NAEC200-PA25
STEX 'DIA_ACT'

END
NEW TEXT /NAEC200-PA26
STEX 'DIA_CORPS_OBS'

END
NEW TEXT /NAEC200-PA27
STEX 'LARGEUR_OBS'

END
NEW TEXT /NAEC200-PA28
STEX 'P_BAS_OBS'

END
NEW TEXT /NAEC200-PA29
STEX 'P_HAUT_OBS'

END
NEW TEXT /NAEC200-PA30
STEX 'DIA_ACT_OBS'

END
NEW TEXT /NAEC200-PA31
STEX 'THICKNESS_FF_1'

END
NEW TEXT /NAEC200-PA32
STEX 'THICKNESS_FF_2'

END
NEW TEXT /NAEC200-PA33
STEX 'THICKNESS_FF_3'

END
NEW SDTEXT /NAEC200/SDTE
SKEY 'ELBW'
RTEX ( 'ELBOW 45 D LR BW ASME B16.9 ' + ATTRIB DESC OF PDAREF OF SPRE  )
STEX ( 'ELBOW 45 D LR BW ' + ATTRIB DESC OF PDAREF OF SPRE  )
TTEX 'ELBOW 45'

END
NEW SCOMPONENT /NAEC200AA
GTYP ELBO
PARA 6 10.3 BWD 0 0 $
0 6 10.3 BWD 0 $
0 0 0 0 0 $
0 0 0 0 0 $
10.3 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200BB
GTYP ELBO
PARA 8 13.7 BWD 0 0 $
0 8 13.7 BWD 0 $
0 0 0 0 0 $
0 0 0 0 0 $
13.7 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200CC
GTYP ELBO
PARA 10 17.1 BWD 0 0 $
0 10 17.1 BWD 0 $
0 0 0 0 0 $
0 0 0 0 0 $
17.1 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200DD
GTYP ELBO
PARA 15 21.3 BWD 0 0 $
16 15 21.3 BWD 0 $
0 16 0 0 0 $
0 0 0 16 16 $
21.3 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200EE
GTYP ELBO
PARA 20 26.7 BWD 0 0 $
11 20 26.7 BWD 0 $
0 11 0 0 0 $
0 0 0 11 11 $
26.7 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200FF
GTYP ELBO
PARA 25 33.4 BWD 0 0 $
22 25 33.4 BWD 0 $
0 22 0 0 0 $
0 0 0 22 22 $
33.4 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200GG
GTYP ELBO
PARA 32 42.2 BWD 0 0 $
25 32 42.2 BWD 0 $
0 25 0 0 0 $
0 0 0 25 25 $
42.2 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200HH
GTYP ELBO
PARA 40 48.3 BWD 0 0 $
29 40 48.3 BWD 0 $
0 29 0 0 0 $
0 0 0 29 29 $
48.3 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200JJ
GTYP ELBO
PARA 50 60.3 BWD 0 0 $
35 50 60.3 BWD 0 $
0 35 0 0 0 $
0 0 0 35 35 $
60.3 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200KK
GTYP ELBO
PARA 65 73 BWD 0 0 $
44 65 73 BWD 0 $
0 44 0 0 0 $
0 0 0 44 44 $
73 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200LL
GTYP ELBO
PARA 80 88.9 BWD 0 0 $
51 80 88.9 BWD 0 $
0 51 0 0 0 $
0 0 0 51 51 $
88.9 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200MM
GTYP ELBO
PARA 90 101.6 BWD 0 0 $
57 90 101.6 BWD 0 $
0 57 0 0 0 $
0 0 0 57 57 $
101.6 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200NN
GTYP ELBO
PARA 100 114.3 BWD 0 0 $
64 100 114.3 BWD 0 $
0 64 0 0 0 $
0 0 0 64 64 $
114.3 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200PP
GTYP ELBO
PARA 125 141.3 BWD 0 0 $
79 125 141.3 BWD 0 $
0 79 0 0 0 $
0 0 0 79 79 $
141.3 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200RR
GTYP ELBO
PARA 150 168.3 BWD 0 0 $
95 150 168.3 BWD 0 $
0 95 0 0 0 $
0 0 0 95 95 $
168.3 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200TT
GTYP ELBO
PARA 200 219.1 BWD 0 0 $
127 200 219.1 BWD 0 $
0 127 0 0 0 $
0 0 0 127 127 $
219.1 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200VV
GTYP ELBO
PARA 250 273 BWD 0 0 $
159 250 273 BWD 0 $
0 159 0 0 0 $
0 0 0 159 159 $
273 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200WW
GTYP ELBO
PARA 300 323.8 BWD 0 0 $
191 300 323.8 BWD 0 $
0 191 0 0 0 $
0 0 0 191 191 $
323.8 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200XX
GTYP ELBO
PARA 350 355.6 BWD 0 0 $
222 350 355.6 BWD 0 $
0 222 0 0 0 $
0 0 0 222 222 $
355.6 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200YY
GTYP ELBO
PARA 400 406.4 BWD 0 0 $
254 400 406.4 BWD 0 $
0 254 0 0 0 $
0 0 0 254 254 $
406.4 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200ZZ
GTYP ELBO
PARA 450 457 BWD 0 0 $
286 450 457 BWD 0 $
0 286 0 0 0 $
0 0 0 286 286 $
457 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC20011
GTYP ELBO
PARA 500 508 BWD 0 0 $
318 500 508 BWD 0 $
0 318 0 0 0 $
0 0 0 318 318 $
508 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC20022
GTYP ELBO
PARA 550 559 BWD 0 0 $
343 550 559 BWD 0 $
0 343 0 0 0 $
0 0 0 343 343 $
559 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC20033
GTYP ELBO
PARA 600 610 BWD 0 0 $
381 600 610 BWD 0 $
0 381 0 0 0 $
0 0 0 381 381 $
610 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC20044
GTYP ELBO
PARA 650 660 BWD 0 0 $
406 650 660 BWD 0 $
0 406 0 0 0 $
0 0 0 406 406 $
660 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC20055
GTYP ELBO
PARA 700 711 BWD 0 0 $
438 700 711 BWD 0 $
0 438 0 0 0 $
0 0 0 438 438 $
711 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC20066
GTYP ELBO
PARA 750 762 BWD 0 0 $
470 750 762 BWD 0 $
0 470 0 0 0 $
0 0 0 470 470 $
762 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC20077
GTYP ELBO
PARA 800 813 BWD 0 0 $
502 800 813 BWD 0 $
0 502 0 0 0 $
0 0 0 502 502 $
813 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC20088
GTYP ELBO
PARA 850 864 BWD 0 0 $
533 850 864 BWD 0 $
0 533 0 0 0 $
0 0 0 533 533 $
864 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC20099
GTYP ELBO
PARA 900 914 BWD 0 0 $
584 900 914 BWD 0 $
0 584 0 0 0 $
0 0 0 584 584 $
914 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200aa
GTYP ELBO
PARA 950 0 BWD 0 0 $
0 950 0 BWD 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200bb
GTYP ELBO
PARA 1000 0 BWD 0 0 $
0 1000 0 BWD 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200cc
GTYP ELBO
PARA 1050 0 BWD 0 0 $
0 1050 0 BWD 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200dd
GTYP ELBO
PARA 1100 0 BWD 0 0 $
0 1100 0 BWD 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200ee
GTYP ELBO
PARA 1150 0 BWD 0 0 $
0 1150 0 BWD 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
NEW SCOMPONENT /NAEC200ff
GTYP ELBO
PARA 1200 0 BWD 0 0 $
0 1200 0 BWD 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0 0 0 $
0 0 0

END
END
END
OLD CATEGORY /NAEC200
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200AA
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200BB
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200CC
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200DD
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200EE
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200FF
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200GG
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200HH
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200JJ
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200KK
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200LL
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200MM
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200NN
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200PP
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200RR
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200TT
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200VV
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200WW
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200XX
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200YY
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200ZZ
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC20011
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC20022
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC20033
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC20044
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC20055
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC20066
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC20077
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC20088
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC20099
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200aa
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200bb
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200cc
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200dd
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200ee
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

OLD SCOMPONENT /NAEC200ff
PTRE PTSET /ELBOW_45_BW/PTSE
GMRE GMSET /ELBOW_45_BW/GMSE
DTRE DTSET /ELBOW_45_BW/DTSE

INPUT END  SECTION /NEW_NE_ELBOW_45
INPUT FINISH
-- Switch synonyms back on if an error occurs.
LABEL /ERROR3
handle ANY
$S+
RETURN ERROR
endhandle

-- End Data Listing    Date : 20 May 2016 11:56
$S+  -- Synonym translation ON
-- ----------------------------------------------------------------

  • Hope this helps....


    Thanks so much Corrado, the problem is fixed right now.
