• Can anybody DB list their Field Fit Weld from the Catalog and post here please!
    My Field Fit Weld component is built incorrectly and I cannot figure out why - would be nice to compare to yours if yours is working properly.
    Your help is much appreciated.
  • Anna you can find Field Fitted Weld catalogue in ACP (MAS) project supplied by Aveva.
  • What does it mean "...but its not build properly"?
    You could eventually copy/paste that Category and modify/fix it according to your needs..
  • P-Points 1 and 2 should be n the same axes (i.e. X , -X)

    [COLOR="silver"]- - - Updated - - -[/COLOR]

    Your PAXI values are set to Z and -X (???)
  • PAXI is the axes direction attribute of the PTAX point....
    Take a look at the Aveva supplied category named  /MODELLED.WELDS.FIELD.FITTING.FITTING as comparison.
    As I said, you could copy/paste that. You just need to modify the Lay length according to your needs
  • Yes there is one but its not build properly. I have talked with Aveva support and they even said this on our call. We didn't have time to troubleshoot at the time of a call. They were going to supply me a good copy of it but its been two weeks and I haven't heard from anybody...
  • Here is a DB listing of  my WELD, when placed into E3D Its placing my weld way out in space. I don't know how to fix this.
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]$S-  -- Synonym translation OFF
    -- ----------------------------------------------------------------
    -- Data Listing    Date : 8  Sep 2020 07:34[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]ONERROR GOLABEL /ERROR3[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]INPUT BEGIN
    NEW CATEGORY /PDM-D0W0000
    DESC 'WELD - FIELD FITTED'
    PURP COMP
    GTYP WELD
    CSTA 'Din'[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]NEW SDTEXT /PDM-D0W0000-D
    SKEY 'WF'
    RTEX 'FIELD FITTED WELD'[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW TEXT /PDM-D0W0000-PA1
    STEX 'NOM SIZE'[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW TEXT /PDM-D0W0000-PA2
    STEX 'CONN TYPE'[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW TEXT /PDM-D0W0000-PA3
    STEX 'PIPE OUTSIDE DIAMETER NOT USED'[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW TEXT /PDM-D0W0000-ISS
    STEX 'ISSUE 1  26 MAI 94'[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]NEW PTAXIS
    NUMB 1
    PCON PARAM 3
    PBOR PARAM 1
    PDIS PARAM 2
    PAXI Z[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW PTAXIS
    NUMB 2
    PCON PARAM 3
    PBOR PARAM 1
    PDIS PARAM 2
    PAXI -X[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    END
    NEW SCOMPONENT /PDM-D0W0000AA
    GTYP WELD
    PARA 6 BWD 10.2[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000BB
    GTYP WELD
    PARA 8 BWD 13.5[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000CC
    GTYP WELD
    PARA 10 BWD 17.2[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000DD
    GTYP WELD
    PARA 15 BWD 21.3[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000EE
    GTYP WELD
    PARA 20 BWD 26.9[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000FF
    GTYP WELD
    PARA 25 BWD 33.7[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000GG
    GTYP WELD
    PARA 32 BWD 42.4[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000HH
    GTYP WELD
    PARA 40 BWD 48.3[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000JJ
    GTYP WELD
    PARA 50 BWD 60.3[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000KK
    GTYP WELD
    PARA 65 BWD 76.1[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000LL
    GTYP WELD
    PARA 80 BWD 88.9[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000MM
    GTYP WELD
    PARA 90 BWD 101.6[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000NN
    GTYP WELD
    PARA 100 BWD 114.3[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000PP
    GTYP WELD
    PARA 125 BWD 139.7[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000RR
    GTYP WELD
    PARA 150 BWD 168.3[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000TT
    GTYP WELD
    PARA 200 BWD 219.1[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000VV
    GTYP WELD
    PARA 250 BWD 273[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000WW
    GTYP WELD
    PARA 300 BWD 323.9[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000XX
    GTYP WELD
    PARA 350 BWD 355.6[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000YY
    GTYP WELD
    PARA 400 BWD 406.4[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000ZZ
    GTYP WELD
    PARA 450 BWD 457[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W000011
    GTYP WELD
    PARA 500 BWD 508[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W000022
    GTYP WELD
    PARA 550 BWD 559[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W000033
    GTYP WELD
    PARA 600 BWD 610[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W000044
    GTYP WELD
    PARA 650 BWD 660[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W000055
    GTYP WELD
    PARA 700 BWD 711[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W000066
    GTYP WELD
    PARA 750 BWD 762[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W000077
    GTYP WELD
    PARA 800 BWD 813[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W000088
    GTYP WELD
    PARA 850 BWD 864[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W000099
    GTYP WELD
    PARA 900 BWD 914[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000bb
    GTYP WELD
    PARA 1000 BWD 1016[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    NEW SCOMPONENT /PDM-D0W0000ff
    GTYP WELD
    PARA 1200 BWD 1220[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]END
    END
    OLD CATEGORY /PDM-D0W0000
    PTRE PTSET /PDM-D0W0000-P2-13
    CDET SDTEXT /PDM-D0W0000-D[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000AA
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000BB
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000CC
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000DD
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000EE
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000FF
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000GG
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000HH
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000JJ
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000KK
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000LL
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000MM
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000NN
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000PP
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000RR
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000TT
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000VV
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000WW
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000XX
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000YY
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000ZZ
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W000011
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W000022
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W000033
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W000044
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W000055
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W000066
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W000077
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W000088
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W000099
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000bb
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]OLD SCOMPONENT /PDM-D0W0000ff
    PTRE PTSET /PDM-D0W0000-P2-13[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]INPUT END  CATEGORY /PDM-D0W0000
    INPUT FINISH
    -- Switch synonyms back on if an error occurs.
    LABEL /ERROR3
    handle ANY
    $S+
    RETURN ERROR
    endhandle[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif]-- End Data Listing    Date : 8  Sep 2020 07:34
    $S+  -- Synonym translation ON
    -- ----------------------------------------------------------------[/FONT]
    [FONT=Verdana,Arial,Tahoma,Calibri,Geneva,sans-serif][/FONT]
  • I fixed the P-Points to say X (for P-Point 1) and -X (for P-Point 2) but that did not work. You said PAXI ... mine are PTAX,..., Could that make a difference?

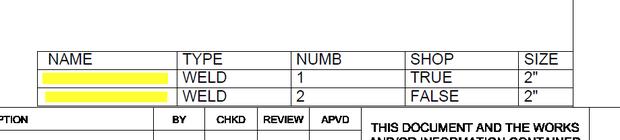

  • Nevermind - I figured it out - you just have to name the WELD in the Model Explorer... Thank you very much!
