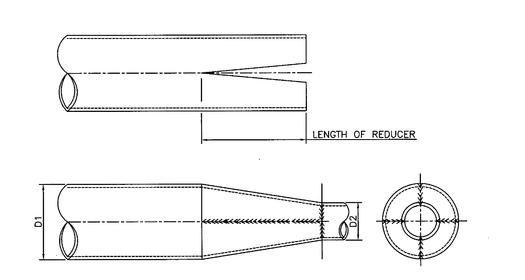

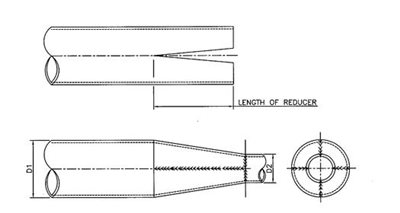

Fabricated Reducer from pipe at site



Have you tried using CSBW skey?

It is for Reducer - Concentric Swaged from Pipe

Not sure if it will be considered as a pipe for real or as a component.....just try and let us know....

Any one can help me on this.
Thanks in advance

Hi corrado, Thanks for your reply.

I tried using skey CSBW and CPBW but no success.
It is considering as component, not pipe (same as RCBW skey).

Any other option ?

mmmmhhhh....

Maybe you can try treating it as a "normal" reducer.
Set MTOC to OFF.
Set MTOR to a tube spref.
Navigate to the above tube spref  (SPCO) detail text.
Set its length attribute to the desired (fixed) length or to an expression linked to some sort of design/catalogue parameter.

Hope this make sense to you.

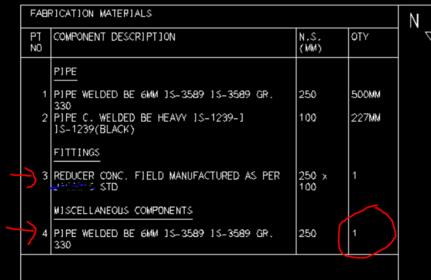

Set to 273mm Length attribute of SDTE of tube (quantity to zero)
