Autonaming SPCO elements - need help with custom function

My SPCO elements have a custom function file that was created a while back with help from AVEVA representative. It works for every GTYPE however not as intended. You see, if I am adding Unions for example - I can go to CATE for unions and add the entire CATE - the Autonaming will work for each SPCO giving me something like this: /A331/UNIO-AA

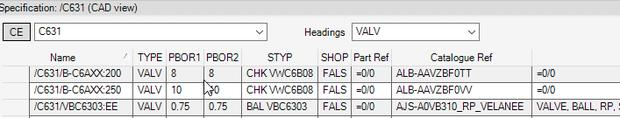

Then I try to add VALV the same way - using the whole CATE - and the results are not the same. However, if I add one SCOM at a time - then I get a different result like /A331/ALB-AAVBBBGAA. Here it takes the name of the CATE. Can you help?
[HTML]

define function !!mtxautonamespco(!prefix is string) is string

 -- SPCO is Part Name if the Part Name is Set
 if (not (unset (!!ce.Prtreference))) then
   !Prtreference = !!ce.Prtreference.namn
   !Prtreference = !Prtreference.replace('-', ':')
   !newname = !prefix & '/' & !Prtreference
   name /$!newname
   return !newname
 endif

 -- Component Names can vary based on Component Type
 !gtype = !!ce.catref.gtype




 if !gtype eq 'TUBE' or !gtype eq 'ELBO' or !gtype eq 'CAP' then
   !material = 'AAA'
   !own = !!ce.catref.own.namn
   var !bore p1bore of catref
   !bore = !bore.replace('mm','')
   !sch = !!ce.detref.namn
   !sch = !sch.after('-')
   !newname = !prefix & '/' & !material & !sch & !own & ':' & !bore
   name /$!newname
   return !newname
 endif

 if !gtype eq 'VALV' or !gtype eq 'PCOM' or !gtype eq 'FILT' or !gtype eq 'TRAP' or !gtype eq 'OLET' or !gtype eq 'REDU' or !gtype eq 'FLAN' then
    !midd = !!ce.catref.gtype
!suff = !!ce.catref.name.substring(-1,-2)
    !newname = !prefix & '/' & !midd & '-' & !suff
   name  /$!newname
   return !newname
 endif

  if !gtype eq 'UNIO' or !gtype eq 'INST'then
    !midd = !!ce.catref.gtype
!suff = !!ce.catref.name.substring(-1,-2)
    !newname = !prefix & '/' & !midd & '-' & !suff
   name  /$!newname
   return !newname
endif

 if !gtype eq 'TEE' then
    !midd = !!ce.catref.gtype
!suff = !!ce.catref.name.substring(-1,-2)
    !newname = !prefix & '/' & !midd & '-' & !suff
   name  /$!newname
   return !newname
 endif

 if !gtype eq 'GASK' then
   !material = !!ce.Matx.namn
   !own = !!ce.catref.own.namn
   var !bore p1bore of catref
   !bore = !bore.replace('mm','')
   !newname = !prefix & '/' & !material & !own & ':' & !bore
   name /$!newname
   return !newname
 endif



if !gtype eq 'INSU' then
 return
endif

 return 'error'


endfunction
[/HTML]



[COLOR=#333333]Then I try to add VALV the same way - using the whole CATE - and the results are not the same. [/COLOR]

And what is the result if you add [COLOR=#333333]the entire CATE with GTYPE 'VALV' :) ?[/COLOR]



I think, need to investigate why your function !!mtxautonamespco() is not running
or if it is running, then  find out why your conditions are not triggered.

You may try to debug this function using outputing comments into command line by operator $p

I don't really know how to do that...



Several issues noted here.

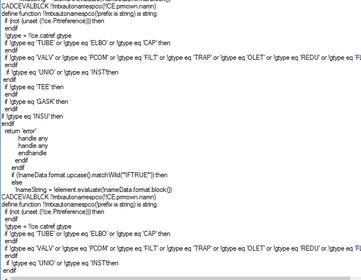

firstly, the error returned in the screenshot 1 is the result of the lines in your pmlobj file returning error when finished.  So if it does not find the GTYP listed then it will return 'error' as the string for your autoname substring.  It will also return this at the end of the program as its outside of the If statements.

original code

if !gtype eq 'INSU' then
 return
endif

 return 'error'


endfunction


corrected code to comment out the returned error with --


if !gtype eq 'INSU' then
 return
endif

--  return 'error'


endfunction


The second issue is you cannot edit this file.  so you will need some PML to run after the items have been created.  I can post this in another reply.

[COLOR=#333333]  return 'error'[/COLOR]

I dont think, that this is a problem.

Maybe you dont have a valid gtype for SCOM in CATE with FLAN\VALV or maybe some problems in autonaming rule...

I tested your function, it's working ok.
