I had similar situation, but DIN-Flanges with ANSI-Bolts.
My Method was:
I copyed the DIN-flanges CATES and referenced the appropriate ANSI-bolting BTSES
You have to copy your ANSI-FLANGE CATE`s,
create appropriate BTSE`s, LTAB (DTAB), BLIS (SBOL) in your CATA (if not already exists)
You have to create a boltspec with your DIN-Bolts and Nuts too.
After referencing the BTSE?s to the SCOMS, you have to include the new Flanges into your
appropriate Pipe-SPEC?s.
Normaly at the Equi-Nozzles is nothing to change.
Maybe there is a different (more elegant) way to do this. But as I mentioned above that was my way!

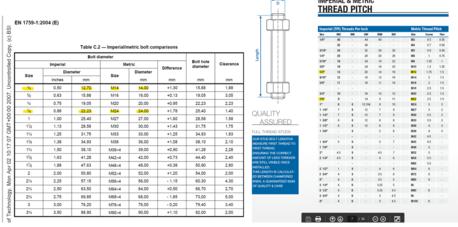

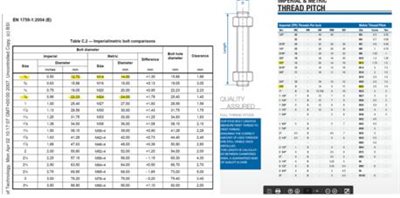

In your table is something wrong, 0.5Inch bolt isnt M14. It is similar to M12!
I didnt check the other entrys.
I have done the BOLT related setup in spec.
But I need the technical confirmation for that table values to be used for imperial and metric conversion?
As you mentioned 0.5 inch = M12.But I can't get any kind of standard or document for this values conversion.
Kindly provide if you have!!
Hi!
M16 means boltdiam 16mm
M27 means boltdiam 27mm
a.so
It depends on your clients spec.
There are different Bolt Specifications like DIN-Spec, EN-Spec, ISO-Spec.
for ex.
DIN2510 for bolt with two nuts
EN ISO 4014, EN ISO 4017 for mach-bolts EN ISO 4032 for required nuts
a.so
