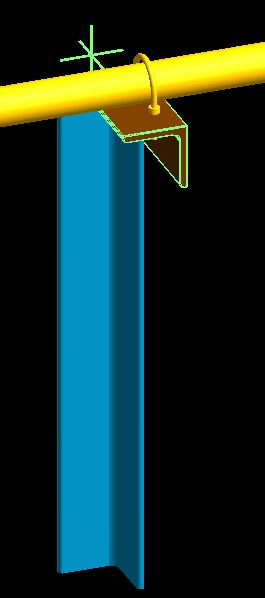

How to edit in secondary support ??

THOMAS MUKIN over 5 years ago
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Sri over 5 years ago

No response from any experts
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Venkata Rao Peta over 5 years ago

hi it seems it is a Framework,

In template you have to do changes rotation etc
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Sri over 5 years ago

But how to ensure its already made within Paragon list Available as well ?
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Venkata Rao Peta over 5 years ago

hi surya

i will give steps for this today iam searching about this

certain parameters are exported to excel from existing frames and it should be imported to paragon database with changing name

FT08 TO FT508

I will send examples tomorrow
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Sri over 5 years ago

Thank you Mr.Deva.

I appreciate your keen and Straight answers

I will you wait for your reply with the answer
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
$S-  -- Synonym translation OFF
-- ----------------------------------------------------------------
-- Data Listing    Date : 27 Feb 2020 12:21

ONERROR GOLABEL /ERROR3

INPUT BEGIN
NEW ZONE /MDS/FRAMES/FT508
PURP NONE
POS E 9000mm N 0mm U 0mm
:MDSCp1 'FT508'

NEW STRUCTURE /MDS/FT508/1
DESC '60x60x8 Angle, Internally Welded'
BUIL false
PDNAME unset

NEW FRMWORK /MDS/FT508/1-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/1-BAR-1
GTYP ANG
DESP 1140
BUIL false
SHOP false
BANG -90degree
DRNE W
POSS W 60mm N 17mm D 17.7mm
POSE E 60mm N 17mm D 17.7mm
JLIN NA
JUSL NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/60x60x8.0
MEML NA

END
NEW SCTN /MDS/FT508/1-V1
GTYP ANG
DESP 990
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE D
POSS E 17.7mm N 52.4mm D 190mm
POSE E 17.7mm N 52.4mm U 0mm
JLIN NA
JUSL NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/60x60x8.0
MEML NA

END
NEW SCTN /MDS/FT508/1-V2
GTYP ANG
DESP 990
BUIL false
SHOP false
BANG 180degree
DRNS U
DRNE D
POSS W 17.7mm N 52.4mm D 190mm
POSE W 17.7mm N 52.4mm U 0mm
JLIN NA
JUSL NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/60x60x8.0
MEML NA

END
END
END
NEW STRUCTURE /MDS/FT508/2
DESC '80x80x10 Angle, Internally Welded'
POS E 0mm N 200mm U 0mm
BUIL false
PDNAME unset

NEW FRMWORK /MDS/FT508/2-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/2-BAR-1
GTYP ANG
DESP 1180
BUIL false
SHOP false
BANG -90degree
DRNE W
POSS W 80mm N 22mm D 23.4mm
POSE E 80mm N 22mm D 23.4mm
JLIN NA
JUSL NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/80x80x10.0
MEML NA

END
NEW SCTN /MDS/FT508/2-V1
GTYP ANG
DESP 990
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE D
POSS E 23.5mm N 68.8mm D 210mm
POSE E 23.5mm N 68.8mm U 0mm
JLIN NA
JUSL NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/80x80x10.0
MEML NA

END
NEW SCTN /MDS/FT508/2-V2
GTYP ANG
DESP 990
BUIL false
SHOP false
BANG 180degree
DRNS U
DRNE D
POSS W 23.3mm N 68.8mm D 210mm
POSE W 23.3mm N 68.8mm U 0mm
JLIN NA
JUSL NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/80x80x10.0
MEML NA

END
END
END
NEW STRUCTURE /MDS/FT508/3
DESC '100x100x12 Angle, Internally Welded'
POS E 0mm N 400mm U 0mm
BUIL false
PDNAME unset

NEW FRMWORK /MDS/FT508/3-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/3-BAR-1
GTYP ANG
DESP 1720
BUIL false
SHOP false
BANG -90degree
DRNE W
POSS W 100mm N 25.6mm D 29mm
POSE E 100mm N 25.6mm D 29mm
JLIN NA
JUSL NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/100x100x12.0
MEML NA

END
NEW SCTN /MDS/FT508/3-V1
GTYP ANG
DESP 990
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE D
POSS E 29mm N 83.6mm D 230mm
POSE E 29mm N 83.6mm U 0mm
JLIN NA
JUSL NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/100x100x12.0
MEML NA

END
NEW SCTN /MDS/FT508/3-V2
GTYP ANG
DESP 990
BUIL false
SHOP false
BANG 180degree
DRNS U
DRNE D
POSS W 29mm N 83.6mm D 230mm
POSE W 29mm N 83.6mm U 0mm
JLIN NA
JUSL NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/100x100x12.0
MEML NA

END
END
END
NEW STRUCTURE /MDS/FT508/4
DESC '152 x 89 Channel, Internally Welded'
POS E 0mm N 650mm U 0mm
BUIL false
PDNAME unset

NEW FRMWORK /MDS/FT508/4-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/4-BAR-1
GTYP CHAN
DESP 1824
BUIL false
SHOP false
BANG 180degree
DRNE W
POSS W 152.4mm N 27mm D 76.2mm
POSE E 152.4mm N 27mm D 76.2mm
JLIN NA
JUSL NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/152x89RSC
MEML NA

END
NEW SCTN /MDS/FT508/4-V1
GTYP CHAN
DESP 990
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE D
POSS E 76.2mm N 84mm D 283mm
POSE E 76.2mm N 84mm U 0mm
JLIN NA
JUSL NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/152x89RSC
MEML NA

END
NEW SCTN /MDS/FT508/4-V2
GTYP CHAN
DESP 990
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE D
POSS W 76.2mm N 84mm D 283mm
POSE W 76.2mm N 84mm U 0mm
JLIN NA
JUSL NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/152x89RSC
MEML NA

END
END
END
NEW STRUCTURE /MDS/FT508/5
DESC '60x60x8 Angle, Internally Bolted'
POS E 0mm N 1000mm U 0mm
BUIL false
PDNAME unset

NEW FRMWORK /MDS/FT508/5-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/5-BAR-1
GTYP ANG
DESP 1140
BUIL false
SHOP false
DRNE W
POSS W 50.3mm S 17.3mm D 17.7mm
POSE E 50.3mm S 17.3mm D 17.7mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/60x60x8.0
MEML NA

END
NEW SCTN /MDS/FT508/5-V1
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE D
POSS E 78mm S 17mm D 200mm
POSE E 78mm S 17mm U 0mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/60x60x8.0
MEML NA
:MDSOlap 'FLUSH'

NEW SNODE /MDS/FT508/5-V1/S1
ZDIS 182.3mm

NEW SJOINT /MDS/FT508/5-V1/S1/IJOINT1
BUIL false
SHOP false
POSL NAT
BANG 180degree
CUTB 10mm
CUTP W
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-Angle_End_Plate_Right_Down

END
END
END
NEW SCTN /MDS/FT508/5-V2
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 180degree
DRNS U
DRNE D
POSS W 78mm S 17.3mm D 200mm
POSE W 78mm S 17.3mm U 0mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/60x60x8.0
MEML NA
:MDSOlap 'FLUSH'

NEW SNODE /MDS/FT508/5-V2/S1
ZDIS 182mm

NEW SJOINT /MDS/FT508/5-V2/S1/IJOINT1
BUIL false
SHOP false
POSL NAL
BANG 180degree
CUTB 10mm
CUTP E
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-Angle_End_Plate_Left_Down

END
END
END
END
END
NEW STRUCTURE /MDS/FT508/6
DESC '80x80x10 Angle, Internally Bolted'
POS E 0mm N 1200mm U 0mm
BUIL false
PDNAME unset

NEW FRMWORK /MDS/FT508/6-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/6-BAR-1
GTYP ANG
DESP 1140
BUIL false
SHOP false
DRNE W
POSS W 44.6mm S 21.3mm D 23.7mm
POSE E 44.6mm S 21.3mm D 23.7mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/80x80x10.0
MEML NA

END
NEW SCTN /MDS/FT508/6-V1
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE D
POSS E 78mm S 21mm D 200mm
POSE E 78mm S 21mm U 0mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/80x80x10.0
MEML NA
:MDSOlap 'FLUSH'

NEW SNODE /MDS/FT508/6-V1/S1
ZDIS 182.3mm

NEW SJOINT /MDS/FT508/6-V1/S1/IJOINT1
BUIL false
SHOP false
POSL NAT
BANG 180degree
CUTB 10mm
CUTP W
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-Angle_End_Plate_Right_Down

END
END
END
NEW SCTN /MDS/FT508/6-V2
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 180degree
DRNS U
DRNE D
POSS W 78mm S 21.3mm D 200mm
POSE W 78mm S 21.3mm U 0mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/80x80x10.0
MEML NA
:MDSOlap 'FLUSH'

NEW SNODE /MDS/FT508/6-V2/S1
ZDIS 182mm

NEW SJOINT /MDS/FT508/6-V2/S1/IJOINT1
BUIL false
SHOP false
POSL NAL
BANG 180degree
CUTB 10mm
CUTP E
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-Angle_End_Plate_Left_Down

END
END
END
END
END
NEW STRUCTURE /MDS/FT508/7
DESC '100x100x12 Angle, Internally Bolted'
POS E 0mm N 1400mm U 0mm
BUIL false
PDNAME unset

NEW FRMWORK /MDS/FT508/7-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/7-BAR-1
GTYP ANG
DESP 1140
BUIL false
SHOP false
DRNE W
POSS W 39mm S 26.3mm D 28.7mm
POSE E 39mm S 26.3mm D 28.7mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/100x100x12.0
MEML NA

END
NEW SCTN /MDS/FT508/7-V1
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE D
POSS E 78mm S 26mm D 200mm
POSE E 78mm S 26mm U 0mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/100x100x12.0
MEML NA
:MDSOlap 'FLUSH'

NEW SNODE /MDS/FT508/7-V1/S1
ZDIS 182.3mm

NEW SJOINT /MDS/FT508/7-V1/S1/IJOINT1
BUIL false
SHOP false
POSL NAT
BANG 180degree
CUTB 10mm
CUTP W
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-Angle_End_Plate_Right_Down

END
END
END
NEW SCTN /MDS/FT508/7-V2
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 180degree
DRNS U
DRNE D
POSS W 78mm S 26.3mm D 200mm
POSE W 78mm S 26.3mm U 0mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/100x100x12.0
MEML NA
:MDSOlap 'FLUSH'

NEW SNODE /MDS/FT508/7-V2/S1
ZDIS 182mm

NEW SJOINT /MDS/FT508/7-V2/S1/IJOINT1
BUIL false
SHOP false
POSL NAL
BANG 180degree
CUTB 10mm
CUTP E
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-Angle_End_Plate_Left_Down

END
END
END
END
END
NEW STRUCTURE /MDS/FT508/8
DESC '152 x 89 Channel, Internally Bolted'
POS E 0mm N 1650mm U 0mm
BUIL false
PDNAME unset

NEW FRMWORK /MDS/FT508/8-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/8-BAR-1
GTYP ANG
DESP 1140
BUIL false
SHOP false
DRNE W
POSS W 91.8mm S 27.3mm D 75.7mm
POSE E 91.8mm S 27.3mm D 75.7mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/152x89RSC
MEML NA

END
NEW SCTN /MDS/FT508/8-V1
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE D
POSS E 178mm S 27mm D 200mm
POSE E 178mm S 27mm U 0mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/152x89RSC
MEML NA
:MDSOlap 'FLUSH'

NEW SNODE /MDS/FT508/8-V1/S1
ZDIS 182.3mm

NEW SJOINT /MDS/FT508/8-V1/S1/IJOINT1
BUIL false
SHOP false
POSL TOC
BANG 180degree
CUTB 10mm
CUTP W
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-Channel_End_Plate

END
END
END
NEW SCTN /MDS/FT508/8-V2
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE D
POSS W 178mm S 27.3mm D 200mm
POSE W 178mm S 27.3mm U 0mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/152x89RSC
MEML NA
:MDSOlap 'FLUSH'

NEW SNODE /MDS/FT508/8-V2/S1
ZDIS 182mm

NEW SJOINT /MDS/FT508/8-V2/S1/IJOINT1
BUIL false
SHOP false
POSL BOC
CUTB 10mm
CUTP E
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-Channel_End_Plate

END
END
END
END
END
NEW STRUCTURE /MDS/FT508/9
DESC 'HALFEN 41/22 Channel'
POS E 0mm N 1900mm U 0mm
BUIL false
PDNAME unset
:MDSMaxBore 25

NEW FRMWORK /MDS/FT508/9-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/9-BAR-1
GTYP ANG
DESP 1140
BUIL false
SHOP false
BANG 180degree
DRNE W
POSS W 91.8mm N 0mm D 10.5mm
POSE E 91.8mm N 0mm D 10.5mm
JLIN NA
JUSL NA
CTYS BOLT
CTYE BOLT
GRADE 0
FIRE 0
SPRE SPRFILE /HZL41/22
MEML NA

END
NEW SCTN /MDS/FT508/9-V1
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG -90degree
DRNS U
DRNE D
POSS E 102.3mm N 0mm D 200mm
POSE E 102.3mm N 0mm U 100mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPRFILE /HZL41/22
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum 50

NEW SNODE /MDS/FT508/9-V1/S1
ZDIS 182.3mm

NEW SJOINT /MDS/FT508/9-V1/S1/IJOINT1
BUIL false
SHOP false
POSL NA
CUTB -10.5mm
CUTP W
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-HCS-VT41-68/2

END
END
END
NEW SCTN /MDS/FT508/9-V2
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE D
POSS W 102.3mm N 0mm D 200mm
POSE W 102.3mm N 0mm U 100mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPRFILE /HZL41/22
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum 50

NEW SNODE /MDS/FT508/9-V2/S1
ZDIS 182mm

NEW SJOINT /MDS/FT508/9-V2/S1/IJOINT1
BUIL false
SHOP false
POSL NA
CUTB -10.5mm
CUTP E
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-HCS-VT41-68/2

END
END
END
END
END
NEW STRUCTURE /MDS/FT508/10
DESC 'HALFEN 41/41 Channel'
POS E 0mm N 2150mm U 0mm
BUIL false
PDNAME unset
:MDSMaxBore 80

NEW FRMWORK /MDS/FT508/10-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/10-BAR-1
GTYP ANG
DESP 1140
BUIL false
SHOP false
BANG 180degree
DRNE W
POSS W 91.8mm N 0mm D 20.5mm
POSE E 91.8mm N 0mm D 20.5mm
JLIN NA
JUSL NA
CTYS BOLT
CTYE BOLT
GRADE 0
FIRE 0
SPRE SPRFILE /HZL41/41
MEML NA

END
NEW SCTN /MDS/FT508/10-V1
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG -90degree
DRNS U
DRNE D
POSS E 112.3mm N 0mm D 200mm
POSE E 112.3mm N 0mm U 150mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPRFILE /HZL41/41
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum 120

NEW SNODE /MDS/FT508/10-V1/S1
ZDIS 182.3mm

NEW SJOINT /MDS/FT508/10-V1/S1/IJOINT1
BUIL false
SHOP false
POSL NA
CUTB -20.5mm
CUTP W
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-HCS-VT41-26/1

END
END
END
NEW SCTN /MDS/FT508/10-V2
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE D
POSS W 112.3mm N 0mm D 200mm
POSE W 112.3mm N 0mm U 150mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPRFILE /HZL41/41
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum 120

NEW SNODE /MDS/FT508/10-V2/S1
ZDIS 182mm

NEW SJOINT /MDS/FT508/10-V2/S1/IJOINT1
BUIL false
SHOP false
POSL NA
CUTB -20.5mm
CUTP E
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-HCS-VT41-26/1

END
END
END
END
END
NEW STRUCTURE /MDS/FT508/11
DESC 'HALFEN 41/22D Channel'
POS E 0mm N 2400mm U 0mm
BUIL false
PDNAME unset
:MDSMaxBore 80

NEW FRMWORK /MDS/FT508/11-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/11-BAR-1
GTYP ANG
DESP 1140
BUIL false
SHOP false
BANG 180degree
DRNE W
POSS W 92.3mm N 0mm D 21mm
POSE E 92.3mm N 0mm D 21mm
JLIN NA
JUSL NA
CTYS BOLT
CTYE BOLT
GRADE 0
FIRE 0
SPRE SPRFILE /HZM41/22D
MEML NA

END
NEW SCTN /MDS/FT508/11-V1
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG -90degree
DRNS U
DRNE D
POSS E 112.8mm N 0mm D 200mm
POSE E 112.8mm N 0mm U 150mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPRFILE /HZM41/22D
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum 120

NEW SNODE /MDS/FT508/11-V1/S1
ZDIS 182.3mm

NEW SJOINT /MDS/FT508/11-V1/S1/IJOINT1
BUIL false
SHOP false
POSL NA
CUTB -20.5mm
CUTP W
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-HCS-VT41-26/1

END
END
END
NEW SCTN /MDS/FT508/11-V2
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE D
POSS W 112.8mm N 0mm D 200mm
POSE W 112.8mm N 0mm U 150mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPRFILE /HZM41/22D
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum 120

NEW SNODE /MDS/FT508/11-V2/S1
ZDIS 182mm

NEW SJOINT /MDS/FT508/11-V2/S1/IJOINT1
BUIL false
SHOP false
POSL NA
CUTB -20.5mm
CUTP E
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-HCS-VT41-26/1

END
END
END
END
END
NEW STRUCTURE /MDS/FT508/12
DESC 'HALFEN 63/63 Channel'
POS E 0mm N 2650mm U 0mm
BUIL false
PDNAME unset
:MDSMaxBore 150

NEW FRMWORK /MDS/FT508/12-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/12-BAR-1
GTYP HALS
DESP 1140
BUIL false
SHOP false
BANG 180degree
DRNE W
POSS W 191.8mm N 0mm D 31.5mm
POSE E 191.8mm N 0mm D 31.5mm
JLIN NA
JUSL NA
CTYS BOLT
CTYE BOLT
GRADE 0
FIRE 0
SPRE SPRFILE /HZL63/63
MEML NA

END
NEW SCTN /MDS/FT508/12-V1
GTYP HALS
DESP 1070
BUIL false
SHOP false
BANG -90degree
DRNS U
DRNE D
POSS E 223.3mm N 0mm D 200mm
POSE E 223.3mm N 0mm U 150mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPRFILE /HZL63/63
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum 100

NEW SNODE /MDS/FT508/12-V1/S1
ZDIS 168.5mm

NEW SJOINT /MDS/FT508/12-V1/S1/IJOINT1
BUIL false
SHOP false
POSL NA
BANG 180degree
CUTB -31.5mm
CUTP W
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-HCS-VT63-21/4-fv

END
END
END
NEW SCTN /MDS/FT508/12-V2
GTYP HALS
DESP 1070
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE D
POSS W 223.3mm N 0mm D 200mm
POSE W 223.3mm N 0mm U 150mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPRFILE /HZL63/63
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum 100

NEW SNODE /MDS/FT508/12-V2/S1
ZDIS 168.5mm

NEW SJOINT /MDS/FT508/12-V2/S1/IJOINT1
BUIL false
SHOP false
POSL NA
CUTB -31.5mm
CUTP E
JLIN NA
GRADE 0
FIRE 0
SPRE SPCOMPONENT /MDS-HCS-VT63-21/4-fv

END
END
END
END
END
NEW STRUCTURE /MDS/FT508/13
DESC '50x50x6 Angle, Mitred Corners'
PURP MITR
POS E 0mm N 3200mm U 0mm
BUIL false
PDNAME unset

NEW FRMWORK /MDS/FT508/13-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/13-BAR-1
GTYP ANG
DESP 1140
BUIL false
SHOP false
DRNS E 45 U
DRNE W 45 U
POSS W 50.3mm S 16.5mm D 14.5mm
POSE E 50.3mm S 16.5mm D 14.5mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/50x50x6.0
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum -14.5

END
NEW SCTN /MDS/FT508/13-V1
PURP MITR
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 180degree
DRNS U
DRNE W 45 U
POSS E 50.3mm S 16.2mm D 214.5mm
POSE E 50.3mm S 16.2mm D 14.5mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/50x50x6.0
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum -14.5

END
NEW SCTN /MDS/FT508/13-V2
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE E 45 U
POSS W 50.3mm S 16.5mm D 214.5mm
POSE W 50.3mm S 16.5mm D 14.5mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/50x50x6.0
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum -14.5

END
END
END
NEW STRUCTURE /MDS/FT508/14
DESC '60x60x10 Angle, Mitred Corners'
PURP MITR
POS E 0mm N 3400mm U 0mm
BUIL false
PDNAME unset

NEW FRMWORK /MDS/FT508/14-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/14-BAR-1
GTYP ANG
DESP 1140
BUIL false
SHOP false
DRNS E 45 U
DRNE W 45 U
POSS W 50.3mm S 16.5mm D 18.5mm
POSE E 50.3mm S 16.5mm D 18.5mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/60x60x10.0
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum -18.5

END
NEW SCTN /MDS/FT508/14-V1
PURP MITR
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 180degree
DRNS U
DRNE W 45 U
POSS E 50.3mm S 16.2mm D 218.5mm
POSE E 50.3mm S 16.2mm D 18.5mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/60x60x10.0
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum -18.5

END
NEW SCTN /MDS/FT508/14-V2
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE E 45 U
POSS W 50.3mm S 16.5mm D 218.5mm
POSE W 50.3mm S 16.5mm D 18.5mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/60x60x10.0
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum -18.5

END
END
END
NEW STRUCTURE /MDS/FT508/15
DESC '70x70x10 Angle, Mitred Corners'
PURP MITR
POS E 0mm N 3600mm U 0mm
BUIL false
PDNAME unset

NEW FRMWORK /MDS/FT508/15-FRMW1
BUIL false
SHOP false
GRADE 0
FIRE 0
PTSP unset
INSC unset
PDNAME unset

NEW SCTN /MDS/FT508/15-BAR-1
GTYP ANG
DESP 1140
BUIL false
SHOP false
DRNS E 45 U
DRNE W 45 U
POSS W 50.3mm S 16.5mm D 20.9mm
POSE E 50.3mm S 16.5mm D 20.9mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/70x70x10.0
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum -20.9

END
NEW SCTN /MDS/FT508/15-V1
PURP MITR
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 180degree
DRNS U
DRNE W 45 U
POSS E 50.3mm S 16.2mm D 220.9mm
POSE E 50.3mm S 16.2mm D 20.9mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/70x70x10.0
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum -20.9

END
NEW SCTN /MDS/FT508/15-V2
GTYP ANG
DESP 1070
BUIL false
SHOP false
BANG 90degree
DRNS U
DRNE E 45 U
POSS W 50.3mm S 16.5mm D 220.9mm
POSE W 50.3mm S 16.5mm D 20.9mm
JLIN NA
JUSL NA
CTYS NULL
CTYE NULL
GRADE 0
FIRE 0
SPRE SPCOMPONENT /BS-SPEC/70x70x10.0
MEML NA
:MDSOlap 'OVERLAP'
:MDSOnum -20.9

END
END
END
END
OLD SCTN /MDS/FT508/1-BAR-1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/1-V1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/1-V2
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/2-BAR-1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/2-V1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/2-V2
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/3-BAR-1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/3-V1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/3-V2
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/4-BAR-1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/4-V1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/4-V2
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/5-BAR-1
JOIS SJOINT /MDS/FT508/5-V2/S1/IJOINT1
JOIE SJOINT /MDS/FT508/5-V1/S1/IJOINT1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/5-V1
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/5-V1/S1/IJOINT1
CREF SCTN /MDS/FT508/5-BAR-1  END

OLD SCTN /MDS/FT508/5-V2
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/5-V2/S1/IJOINT1
CREF SCTN /MDS/FT508/5-BAR-1  START

OLD SCTN /MDS/FT508/6-BAR-1
JOIS SJOINT /MDS/FT508/6-V2/S1/IJOINT1
JOIE SJOINT /MDS/FT508/6-V1/S1/IJOINT1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/6-V1
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/6-V1/S1/IJOINT1
CREF SCTN /MDS/FT508/6-BAR-1  END

OLD SCTN /MDS/FT508/6-V2
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/6-V2/S1/IJOINT1
CREF SCTN /MDS/FT508/6-BAR-1  START

OLD SCTN /MDS/FT508/7-BAR-1
JOIS SJOINT /MDS/FT508/7-V2/S1/IJOINT1
JOIE SJOINT /MDS/FT508/7-V1/S1/IJOINT1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/7-V1
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/7-V1/S1/IJOINT1
CREF SCTN /MDS/FT508/7-BAR-1  END

OLD SCTN /MDS/FT508/7-V2
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/7-V2/S1/IJOINT1
CREF SCTN /MDS/FT508/7-BAR-1  START

OLD SCTN /MDS/FT508/8-BAR-1
JOIS SJOINT /MDS/FT508/8-V2/S1/IJOINT1
JOIE SJOINT /MDS/FT508/8-V1/S1/IJOINT1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/8-V1
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/8-V1/S1/IJOINT1
CREF SCTN /MDS/FT508/8-BAR-1  END

OLD SCTN /MDS/FT508/8-V2
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/8-V2/S1/IJOINT1
CREF SCTN /MDS/FT508/8-BAR-1  START

OLD SCTN /MDS/FT508/9-BAR-1
JOIS SJOINT /MDS/FT508/9-V2/S1/IJOINT1
JOIE SJOINT /MDS/FT508/9-V1/S1/IJOINT1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/9-V1
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/9-V1/S1/IJOINT1
CREF SCTN /MDS/FT508/9-BAR-1  END

OLD SCTN /MDS/FT508/9-V2
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/9-V2/S1/IJOINT1
CREF SCTN /MDS/FT508/9-BAR-1  START

OLD SCTN /MDS/FT508/10-BAR-1
JOIS SJOINT /MDS/FT508/10-V2/S1/IJOINT1
JOIE SJOINT /MDS/FT508/10-V1/S1/IJOINT1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/10-V1
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/10-V1/S1/IJOINT1
CREF SCTN /MDS/FT508/10-BAR-1  END

OLD SCTN /MDS/FT508/10-V2
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/10-V2/S1/IJOINT1
CREF SCTN /MDS/FT508/10-BAR-1  START

OLD SCTN /MDS/FT508/11-BAR-1
JOIS SJOINT /MDS/FT508/11-V2/S1/IJOINT1
JOIE SJOINT /MDS/FT508/11-V1/S1/IJOINT1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/11-V1
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/11-V1/S1/IJOINT1
CREF SCTN /MDS/FT508/11-BAR-1  END

OLD SCTN /MDS/FT508/11-V2
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/11-V2/S1/IJOINT1
CREF SCTN /MDS/FT508/11-BAR-1  START

OLD SCTN /MDS/FT508/12-BAR-1
JOIS SJOINT /MDS/FT508/12-V2/S1/IJOINT1
JOIE SJOINT /MDS/FT508/12-V1/S1/IJOINT1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/12-V1
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/12-V1/S1/IJOINT1
CREF SCTN /MDS/FT508/12-BAR-1  END

OLD SCTN /MDS/FT508/12-V2
MATR SOLID /CARBON/STEEL

OLD SJOINT /MDS/FT508/12-V2/S1/IJOINT1
CREF SCTN /MDS/FT508/12-BAR-1  START

OLD SCTN /MDS/FT508/13-BAR-1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/13-V1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/13-V2
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/14-BAR-1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/14-V1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/14-V2
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/15-BAR-1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/15-V1
MATR SOLID /CARBON/STEEL

OLD SCTN /MDS/FT508/15-V2
MATR SOLID /CARBON/STEEL

INPUT END  ZONE /MDS/FRAMES/FT508
INPUT FINISH
-- Switch synonyms back on if an error occurs.
LABEL /ERROR3
handle ANY
$S+
RETURN ERROR
endhandle

-- End Data Listing    Date : 27 Feb 2020 12:21
$S+  -- Synonym translation ON
-- ----------------------------------------------------------------
Venkata Rao Peta over 5 years ago

hi

Send your personal id i will send files, unable to upload here

thank you
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Sri over 5 years ago

[email]suryapiping@gmail.com[/email]
Suryapiping at gmail dot com

[COLOR="silver"]- - - Updated - - -[/COLOR]

[email]suryapiping@gmail.com[/email]
Suryapiping at gmail dot com
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
Venkata Rao Peta over 5 years ago

[QUOTE=lsurya;115330][EMAIL="suryapiping@gmail.com"]suryapiping@gmail.com[/EMAIL]
Suryapiping at gmail dot com

- - - Updated - - -

[EMAIL="suryapiping@gmail.com"]suryapiping@gmail.com[/EMAIL]
Suryapiping at gmail dot com

sent, please check
Cancel
Vote Up 0 Vote Down

Sign in to reply

Cancel
