Pipe Support(MDS) MDS Supports AutoNaming
  • Forums
  • Resources
  • Mentions
  • Sub-Groups
  • Tags
  • More
  • Cancel
  • New
  • Replies 10 replies
  • Subscribers 3 subscribers
  • Views 166 views
  • Users 0 members are here
Options
  • Share
  • More
  • Cancel
Related

MDS Supports AutoNaming

Private
Private over 5 years ago

  • Sign in to reply
  • Cancel
  • Private
    Private over 5 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Tejas Desai
    Tejas Desai over 5 years ago
    Dear Prossly use following  for  pipe
    Prefix \ NAMN OF PIPE OF CompRefe OF ANCI1 OF SUPC1
    Index \ 1
    Suffix \
    IWidth \ 3




    regards,
    Tejas
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Aurelio Hinampas
    Aurelio Hinampas over 5 years ago

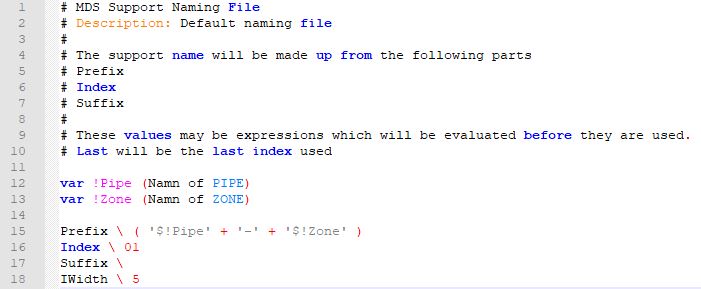

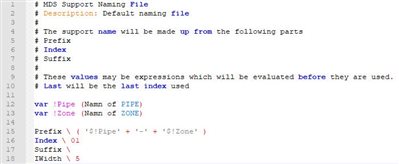

    MDSAUTONAME form code does read variable declaration as what you intend to do and doesn't accept spaces in between also. It will just look for the keyword PREFIX, INDEX & so on then get the value after \. ZONE name is possible as shown below but for the PIPE, I'm not sure or can't be at all unless you modified the MDSAUTONAME macro that will suits your requirements.

    Prefix \$!!mdsOptions.site.val
    Index \ 89
    Suffix \
    IWidth \ 4
    MinIndex \ 0
    MaxIndex \ 9999


    Why would you need the PIPE name for the Support Name? By practice, you should assign the all pipe support ZONE to the specific Support Naming File in the attribute :MDSAUTOFILE.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Private
    Private over 5 years ago
    [QUOTE=Tejas;113158]Dear Prossly use following  for  pipe


    regards,
    Tejas

    Thanks so much Tejas, it's working right now.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Tejas Desai
    Tejas Desai over 4 years ago
    what is you requirement [COLOR=#417394]ESH_PDMS  [/COLOR]Please let us know your requirements.
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Joy PA
    Joy PA over 4 years ago
    Dear Tejas,

    how to call the  [COLOR=#333333]ATTRIB PROP RNAME in the support name. Can you please advice..[/COLOR]
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Robert D Anderson
    Robert D Anderson over 4 years ago
    I would like to use support attribute "Dtxrtext" as the prefix. Does anyone know what the syntax would be?
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Corrado Galluzzi
    Corrado Galluzzi over 4 years ago
    please help on how to activate mds in paragon


    We are talking about something else here....
    Could you please open a new thread?
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • jeremiah udeme
    jeremiah udeme over 4 years ago
    please help on how to activate mds in paragon
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Aurelio Hinampas
    Aurelio Hinampas over 4 years ago
    I would like to use support attribute "Dtxrtext" as the prefix. Does anyone know what the syntax would be?


    Have you already found the answer for this query and which version are you using, PDMS or E3D?
