Pipe Insulation Thickness

avwf_yeoching422481
avwf_yeoching422481 over 15 years ago

  • Sign in to reply
  • Cancel
  • avwf_yeoching422481
    avwf_yeoching422481 over 15 years ago
    Hi,

    How do i change the Pipe Insulation Thickness ?

    Q INSUL
    Insulation thickness 19mm

    At Settings>Graphics>Representation
    I have checked for Insulation & Obstruction & update all Graphics.



    thanks,
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • john pitchers
    john pitchers over 15 years ago
    Insulation thickness is set in the Insulation Spec.
    It is dependant upon the Operating temperature being set at Pipe and branch
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • a
    a over 14 years ago
    Insulation not changing with temperature....help it...

    NEW SPEC /INSULAT
    TEXT 'INSU'

    HEADING
    TYPE      NAME        PBOR0      TEMP        CATR
    INSU     /INS80A     17,770     80,100      /I-10
    INSU     /INS100A    17,145     101,120     /I-10
    INSU     /INS100B    146,770    101,120     /I-20
    INSU     /INS120A    17,30      121,140     /I-10
    INSU     /INS120B    31,770     121,140     /I-20
    INSU     /INS140A    17,220     141,160     /I-20
    INSU     /INS140B    221,770    141,160     /I-30
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Thomas Back
    Thomas Back over 14 years ago
    Change the spec headings so that TEMP is before PBOR
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Gopal Gundabhattar
    Gopal Gundabhattar over 14 years ago
    Hi,

    I have got insulation on the pipes, but its taking all the way same thickness when it is 'ON' in the model, can any body help me how to get the thickness specified inthe spec. I have specified the correct thickness in the spec., but not able to get the same thickness in the model, its showing same thickness all over.

    Regards,

    Gopal
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Javad Ganjei
    Javad Ganjei over 14 years ago
    you shall check you catalogue for insulation thickness,did you set the related thickness in catalogue?
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Gopal Gundabhattar
    Gopal Gundabhattar over 14 years ago
    you shall check you catalogue for insulation thickness,did you set the related thickness in catalogue?


    Hi,

    I have checked in the catelogus its correctlly set, The main thing is I am not  getting the thickness as specified in the catalogues.

    regards,

    Gopal
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Cody Austin
    Cody Austin over 14 years ago

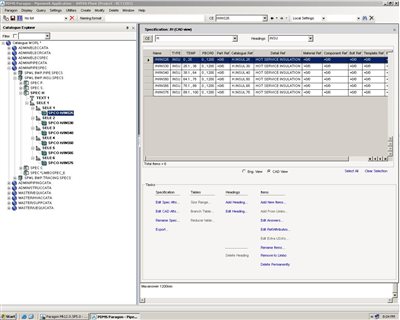

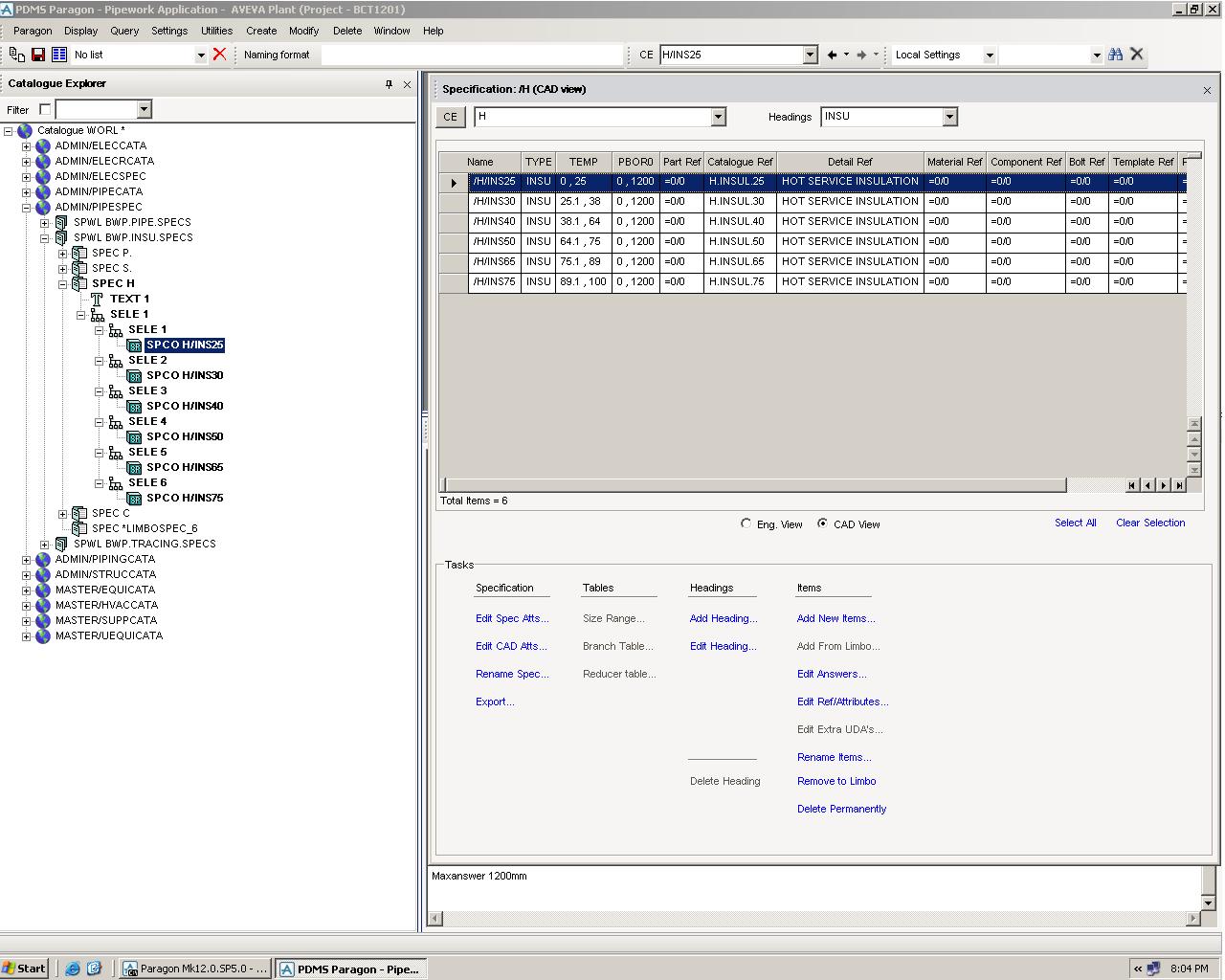

    Can you post your spec or show some screenshots?
    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • Gopal Gundabhattar
    Gopal Gundabhattar over 14 years ago


    • Cancel
    • Vote Up 0 Vote Down
    • Sign in to reply
    • Cancel
  • john pitchers
    john pitchers over 14 years ago
    Have you checked the parameters of the catalogue refs are set correctly?
    Then check that you have set the temperatures correctly at both PIPE and BRAN level in Design.
